Ismatec Reglo ICC Operating Manual page 7

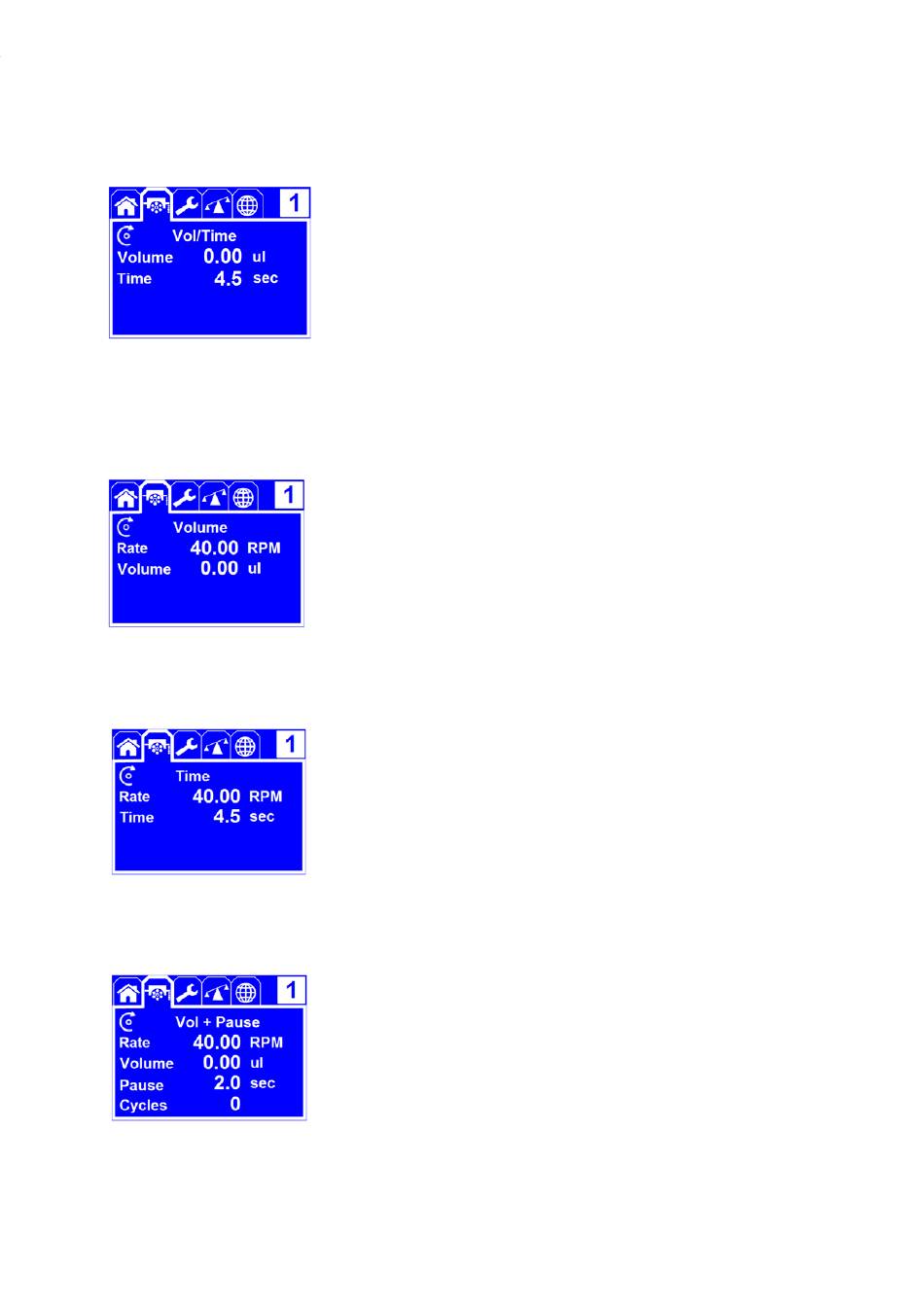

6.4.2.2 Volume over Time Mode
volume, it will default to the shortest dispense time possible. Volume units selectable are µl, ml and L.
Time units selectable are seconds, minutes and hours. None of the parameters are changeable during
pumping or when operation is paused. Dispensing program can be reset during operation by pressing
the Reset button after pumping is paused.
6.4.2.3 Volume Mode
operation is paused. Dispensing program can be reset during operation by pressing the Reset button
after pumping is paused.
6.4.2.4 Time Mode
operation is paused. Dispensing program can be reset during operation by pressing the Reset button
after pumping is paused.
6.4.2.5 Volume with Pause Mode
ml and L. Selectable pause time units are sec, min, and hours. Only flow rate can be changed during
Volume over Time Mode allows the user to dispense a desired volume
over a desired time. The pump will determine the speed of rotation by
set volume and time. Adjustable parameters are rotation direction,
volume, volume units, time, and time units. Rotation direction can be
selected as CW or CCW. Combinations of time and volume can be set to
any value as long as it is in the range of the pump's capabilities. If the
time value entered is less than what the pump is capable of for desired
Volume Mode allows the user to dispense a set volume with a set flow
rate. Adjustable parameters are rotation direction, flow rate, flow rate
units, volume, and volume units. Rotation direction can be selected as
CW or CCW. Flow rate can be changed in the range specified by the
selected unit and/or tubing ID (see Section 6.4.3). Selectable flow rate
units are RPM, µl/min, ml/min and L/min. Selectable volume units are µl,
ml and L. Only flow rate can be changed during pumping or when the
Time Mode allows the user to dispense for a set time duration with a set
flow rate. Adjustable parameters are rotation direction, flow rate, flow
rate units, time, and time units. Rotation direction can be selected as CW
or CCW. Flow rate can be changed in the range specified by the selected
unit and/or tubing ID (see Section 6.4.3). Selectable flow rate units are
RPM, µl/min, ml/min and L/min. Selectable time units are sec, min, and
hours. Only flow rate can be changed during pumping or when the
Volume with Pause Mode allows the user to dispense a set volume over
multiple cycles. Adjustable parameters are rotation direction, flow rate,
flow rate units, volume, volume units, pause time between cycles, pause
time unit, and number of cycles. Rotation direction can be selected as
CW or CCW. Flow rate can be changed in the range specified by the
selected unit and/or tubing ID (see Section 6.4.3). Selectable flow rate
units are RPM, µl/min, ml/min and L/min. Selectable volume units are µl,
7
