6.4.4 CALIBRATION Menu
In the CALIBRATION Menu each channel can be calibrated independently. The channel being calibrated
is listed in the upper right hand corner.
The Reglo ICC allows each channel to be set up and calibrated. This allows for maximum flexibility and optimum
channel to channel precision. Prior to the calibration each channel must be configured for tubing ID, the number
of backsteps that are desired for drip free dispensing, and calibration of that channel.
The Reglo ICC allows you to enter the volume of fluid to dispense for calibration, dispense time for the specified
volume, and pumping direction. Once you have entered those values, dispense desired volume into a container.
Measure the actual amount of the fluid by weight or volume and enter that value on the last screen to adjust the
pump for your application. The calibration can be interrupted by pressing Run/Stop button which will cancel the
existing progress. New uninterrupted calibration run will be required in order to calibrate the channel properly.
When adjusting the dispense time for calibration, if requested time is shorter than the pump's physical capabilities
the dispense time will automatically default to minimum achievable dispense time.

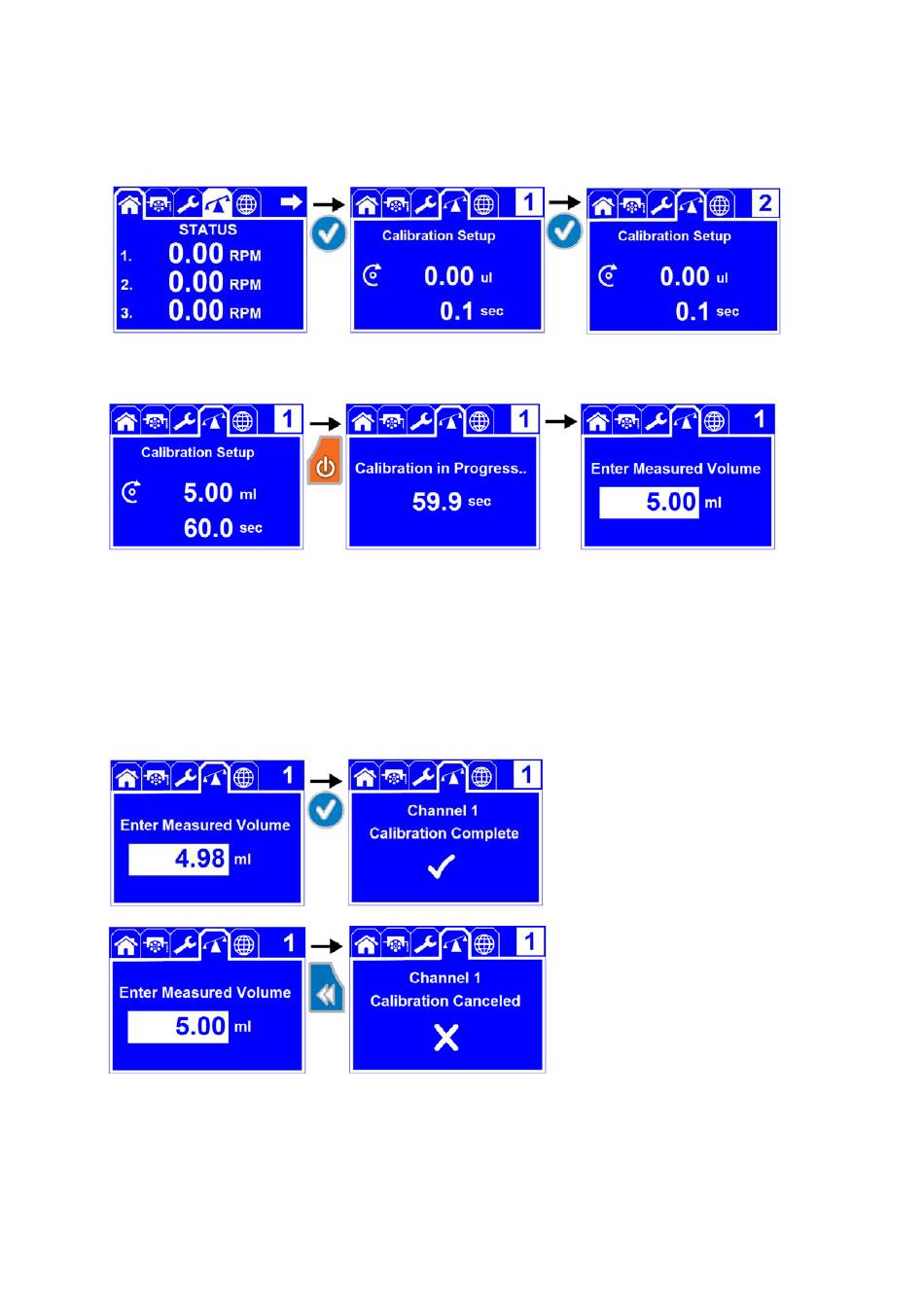

You can complete the calibration by
pressing Ok/Enter button following
your measurement input. You will
receive a message and checkmark
once your calibration is successful.
You can cancel the calibration after
the calibration run by pressing the
Reset button. You will receive the
message displaying that the
calibration has been canceled.
