6.4 Menus
6.4.1 STATUS Menu

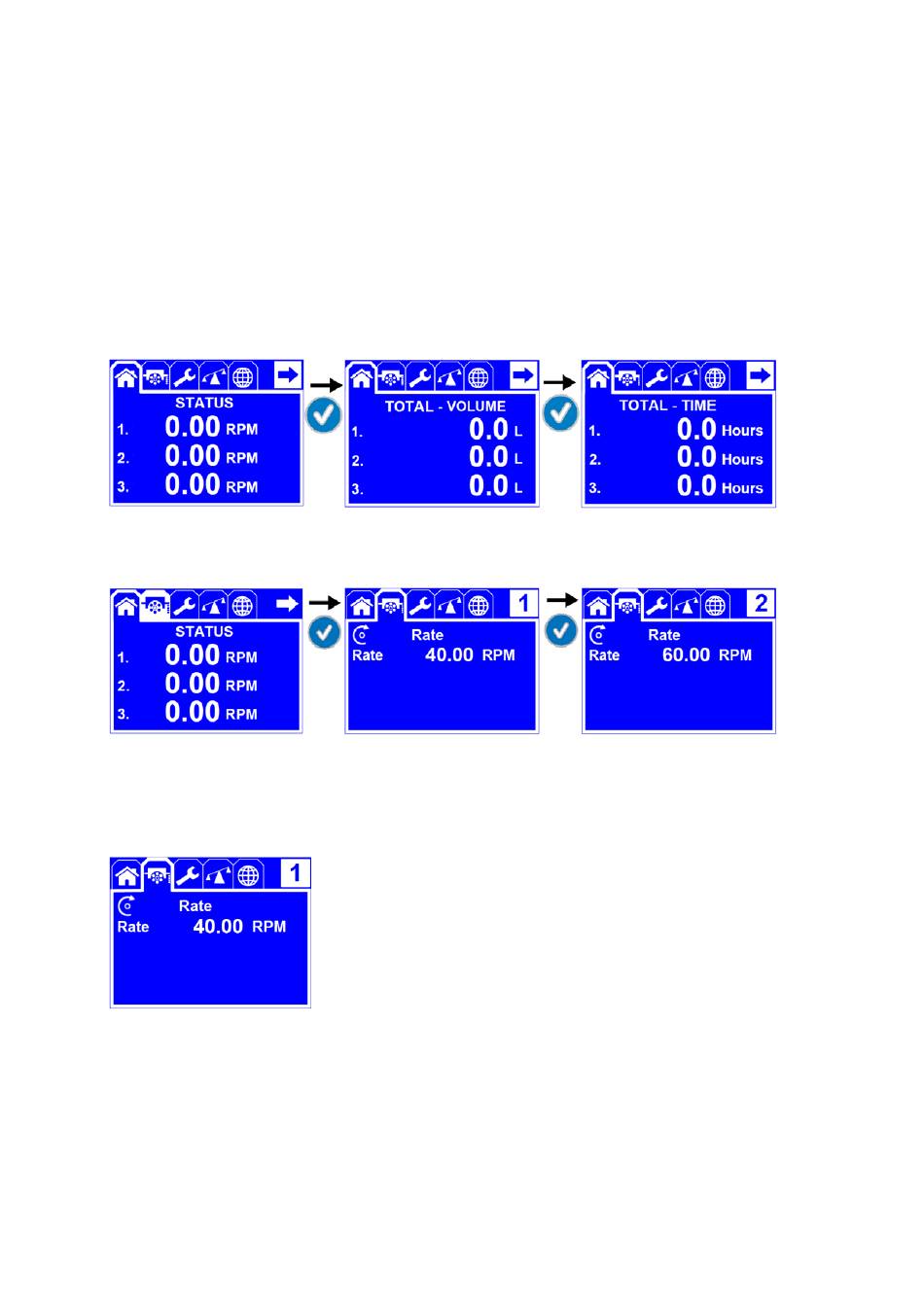

The STATUS Menu has three screens. The Status screen (a) displays the current pumping parameters for
each channel. The unit displayed varies depending on the pumping mode selected. The Total Volume
screen (b) displays the total volume that has been pumped since the last time it was reset. The Total
Time screen (c) displays the total hours pumped for each channel since the last time it was reset. The
time and volume can be reset by navigating to the desired value and pressing OK/Enter button.
Highlighting the arrow in the upper right hand corner of the screen and pressing the OK/Enter button
will toggle through the three status screens.
(a)
6.4.2 PUMPING Menu
The PUMPING Menu allows you to set up the pumping parameters for all of the available channels. The
channel number that is being programmed is indicated in the upper right hand corner. You can select
the rotation direction, pumping mode, and values for each channel in the PUMPING menu.
6.4.2.1 Flow Rate Mode
(b)
Flow Rate Mode provides a continuous operation at a set rate and
direction. Adjustable parameters are rotation direction, flow rate, flow
rate units. Rotation direction can be selected as clockwise (CW) or
counter‐clockwise (CCW). Flow rate can be changed in the range
specified by the selected unit and/or tubing inner diameter (ID) (see
Section 6.4.3). Selectable flow rate units are RPM, µl/min, ml/min and
L/min. Flow rate and rotation direction can be changed during the
operation as well.
