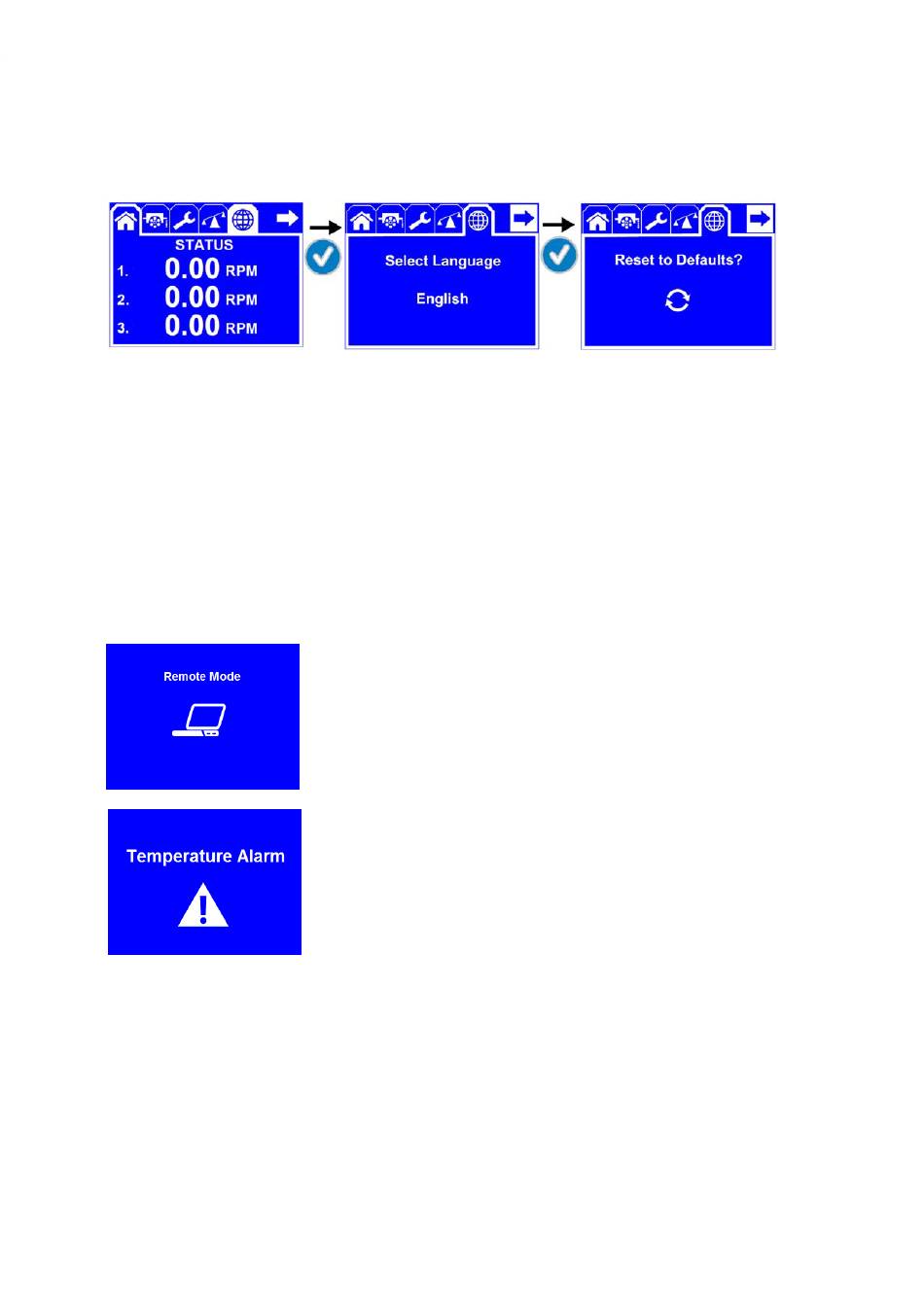

6.4.5 GLOBAL SETTINGS Menu
In the GLOBAL SETTINGS Menu the display language can be selected between English, French, Spanish,
and German. The pump can also be reset to the factory defaults at this menu.
6.5 Installing Tubing
1. Switch the pump off
2. Remove the cassette by slightly pressing the fixing‐tongue and lifting it simultaneously
3. Insert the 2‐stop or 3‐stop color‐coded tubing with one stopper into the cassette
4. Let the tubing hang down (prevent it from being twisted)
5. Insert the tubing with the second stopper at the other end of the cassette
6. Reinsert the cassette into the roller‐head
7. Make sure each cassette is positioned and aligned well between dedicated segments on the bars
8. Turn the pump on
9. When the pump is idle, release all cassettes to maximize tubing life (beware of siphoning or back flow)
6.6 Information Screens
6.7 Differential Pressure
The Reglo ICC can be used for continuous duty at a maximum differential pressure of 1.0 bar (smaller tube sizes
and/or lever type cassettes allow higher pressures).
Indicates that the pump is being remotely controlled by a PC via USB connection.
Indicates that the internal temperature has exceeded a safe threshold and
pumping will stop automatically to protect the pump. Turn the pump power
switch off and check your parameters, differential pressure and pump head for
blockage. The pump will not operate in an overheated condition. Allow the
pump to cool before turning the power switch back on.
he pump is idle
