3.8 Hardware Installation

Perform the following steps when physically installing the gateway:
1. Snap the gateway on to the DIN-rail (See "External View" on page 10)

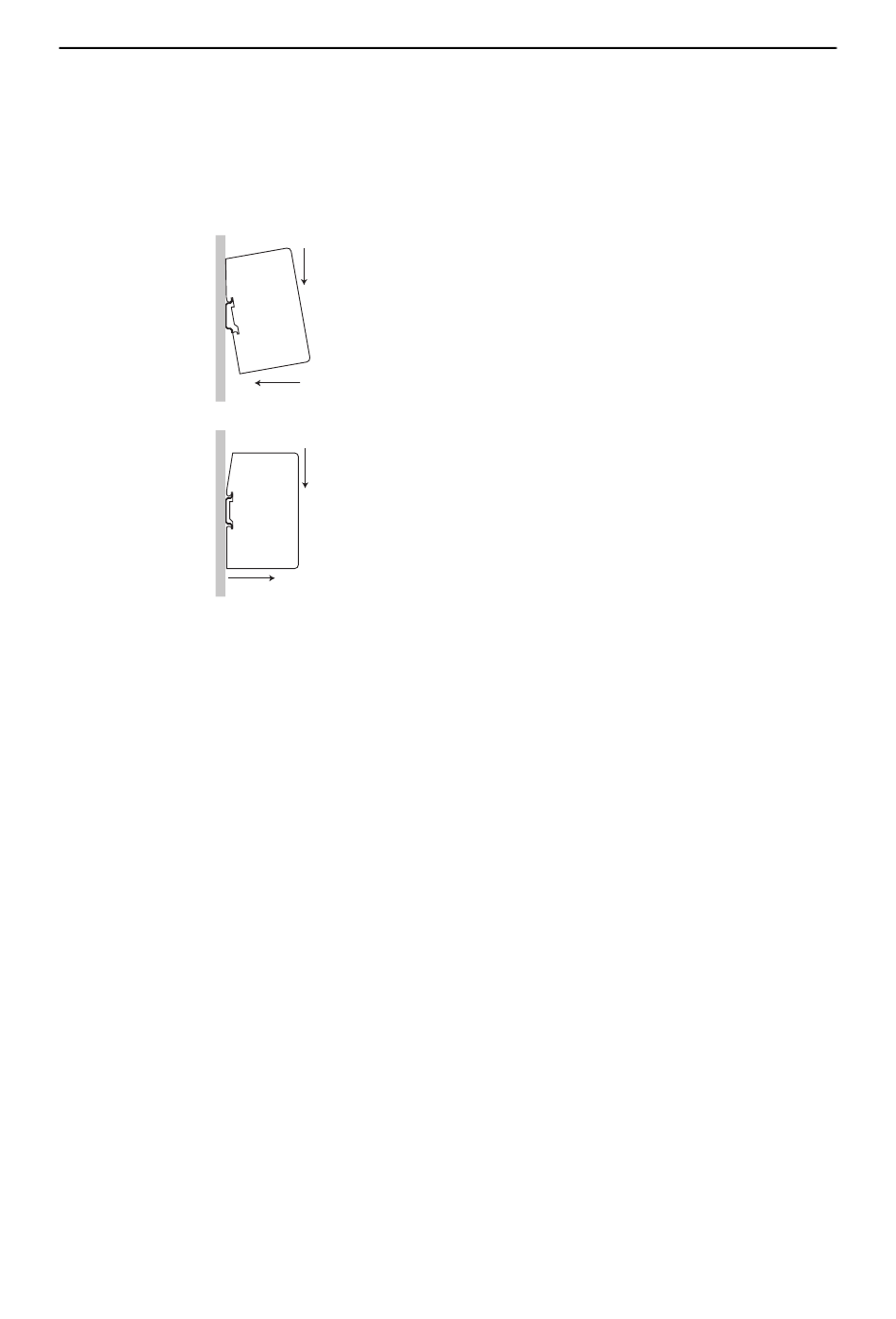

The DIN-rail mechanism works as follows:
2. Connect the gateway to the CANopen network
3. Set the CANopen node ID and operating baud rate (see "Configuration Switches" on page 14)
4. Connect the gateway to the PROFIBUS network.
5. Connect the power cable and apply power
Anybus X-gateway CANopen - PROFIBUS
Doc.Rev. 1.02
1
To snap the gateway on, first press the it downwards (1) to compress the
spring in the DIN-rail mechanism, then push it against the DIN-rail as to
make it snap on (2)
2
1
To snap the gateway off, push the it downwards (1) and pull it out from
the DIN-rail (2), as to make it snap off from the DIN-rail.
2
About the Anybus X-gateway CANopen 15
Doc.Id. SCM-1200-080
