3. About the Anybus X-gateway CANopen

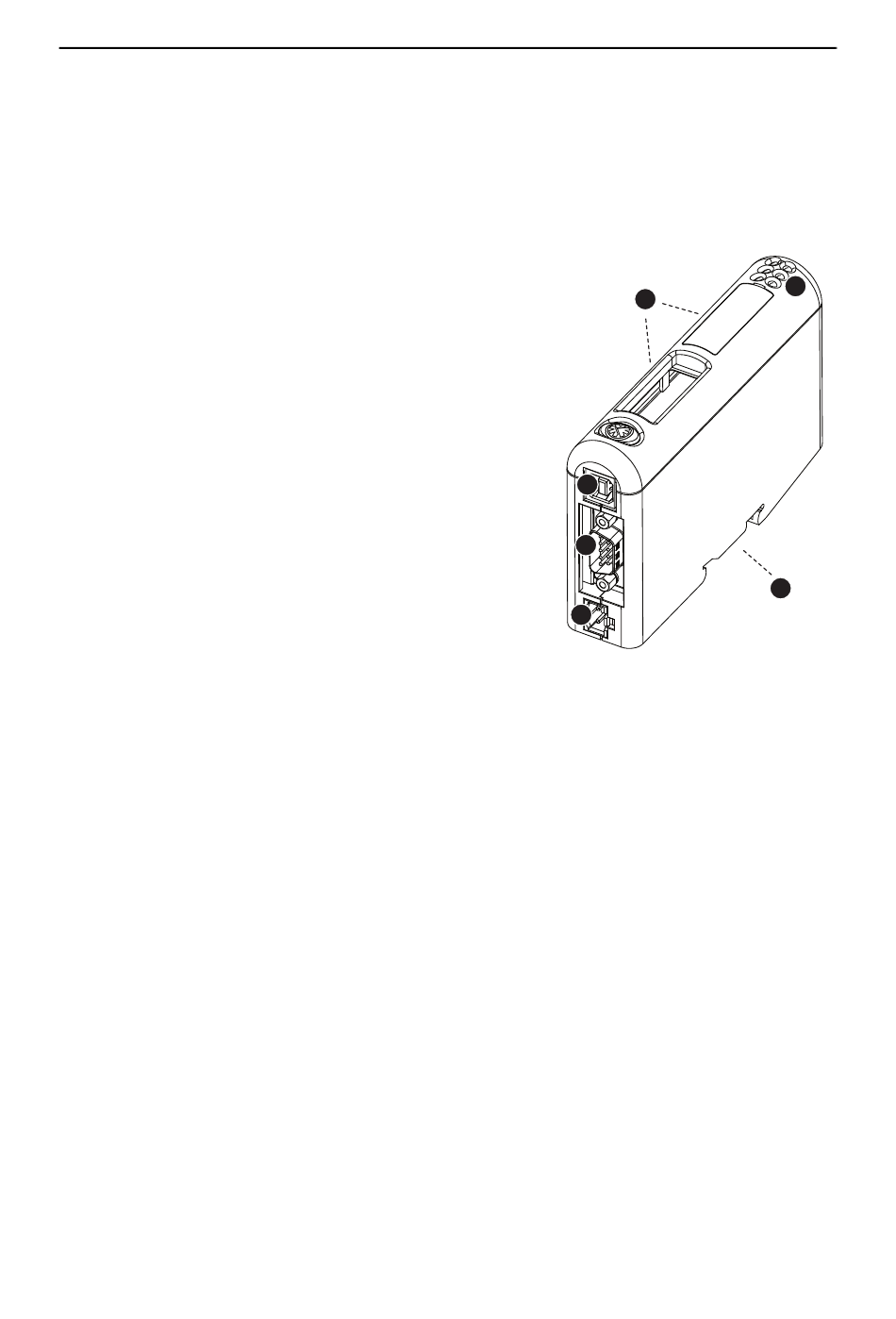

3.1 External View

A: Status LEDs
See also...
- "Status LEDs" on page 11
B: Fieldbus Specific Connectors and Switches
This connector (connectors) and, if available, these
switches are used to connect the Anybus X-gateway
CANopen module to the PROFIBUS network and
to configure that interface. They are described in
"Fieldbus Specific" on page 12.
C: USB connector
This connector simulates a COM-port, used for soft-
ware upgrade of the module.
See also...
- "USB Connector" on page 13
D: CANopen Connector
This connector is used to connect the gateway to the
CANopen network.
See also...
- "CANopen Connector" on page 13
E: Power Connector
This connector is used to apply power to the gateway.
See also...
- "Power Connector" on page 13
F: DIN-rail Connector
The DIN-rail mechanism connects the gateway to PE (Protective Earth).
See also...
- "Hardware Installation" on page 15
Anybus X-gateway CANopen - PROFIBUS
Doc.Rev. 1.02
Chapter 3
B
C
D
E
Doc.Id. SCM-1200-080
A
F
