3.3 Fieldbus Specific

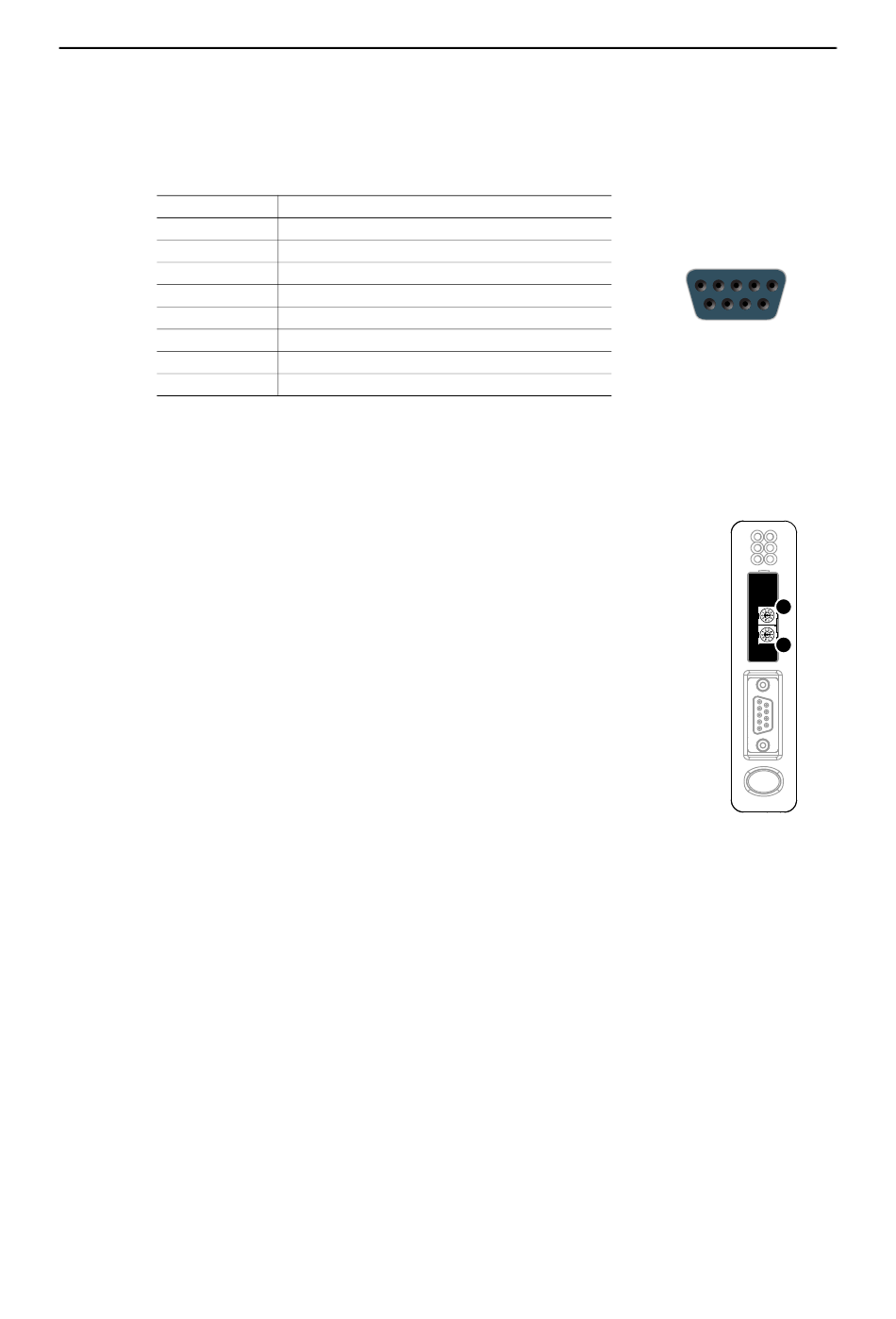

3.3.1 PROFIBUS Connector

Pin no
1
2, 7, 9
3
4
5
6
8
Casing

3.3.2 Configuration Switches

The configuration switches are used to set the PROFIBUS node address. Nor-
mally, these switches are covered by a plastic hatch. Note that the node address
can not be changed during runtime, i.e. the Anybus X-gateway CANopen re-
quires a reset for any changes to have effect.
The configuration is done using two rotary switches as follows:
Node Address = (Switch B x 10) + (Switch A x 1)
Note: When removing the hatch, avoid touching the circuit boards and compo-
nents. If tools are used when opening the hatch, be cautious.
Example:
If the node address should be 42, set switch A to '2' and switch B to '4'.
