4.3.12 Serial (COM1,2 or COM1-4; not on RXM1x2) Ports

(CP;

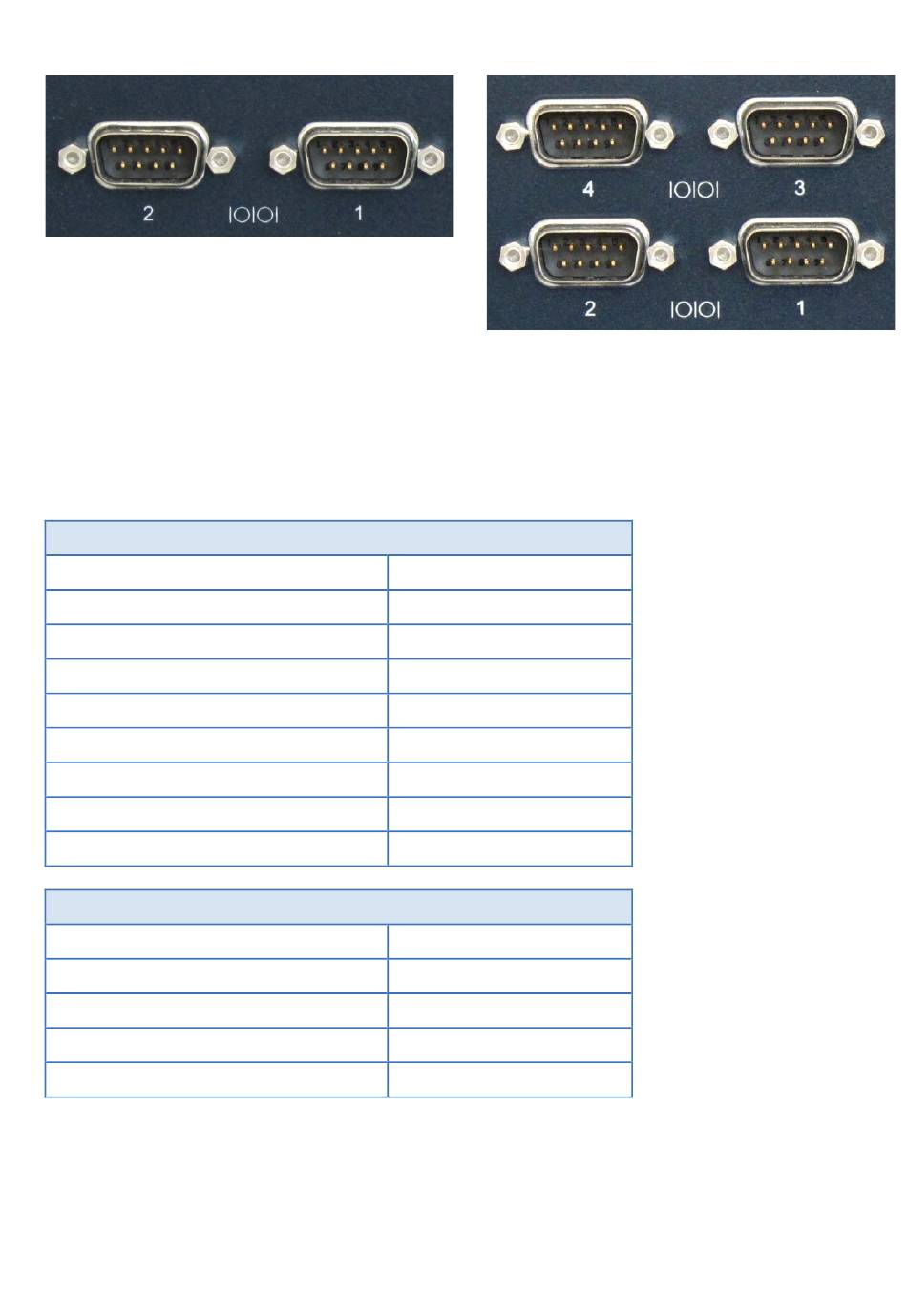

Figure 28: Serial Ports – 2-Slot variant
The 2-slot variant of the RXi Box IPC-XP is provided with two serial ports. The two serial ports are RS232 on 9pin
D-connectors for local terminals or peripheral communication. On request a combination of RS232 and
RS422/485 is orderable too. The 4-slot variant is equipped with four serial ports. Serial ports 1 & 2 are RS232
and serial ports 3 & 4 are RS422/485
RS232 pin
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
RS422/485
Rx+
Rx-
Tx+
Tx-
GND

Table 15: Serial Ports

4.3.13 Mini PCIe Slot

On the carrier there is a Mini PCIe Slot supporting half size and full size add-on cards. The supported PCIe
speed is 2.5GBit/s (Gen 1).
PACSystems RXi Box IPC-XP Hardware Reference Manual
Internal
Figure 29: Serial Ports – 4-Slot variant
1
2
3
4
5
6
7
8
9
1
2
3
4
5
GFK-2990 51
