4.3 Interfaces

Depending on the used carrier two basic variants of the front panel exist. Top is always shown the standard
panel on a CEC04. Below can be found the panel of the CEC02 used in the RXM1x2.
RXE and RXMxx0:

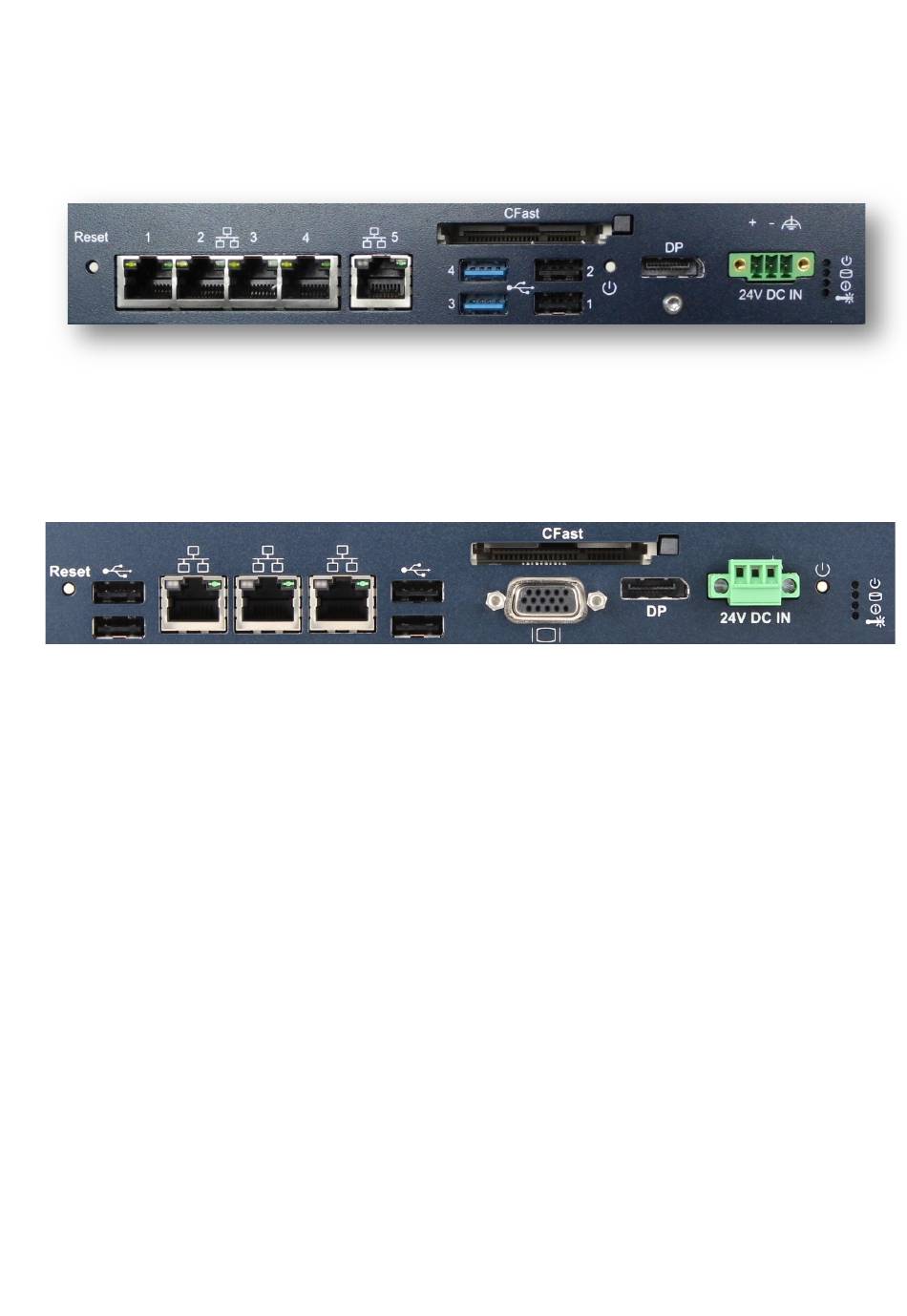

Figure 16: front panel RXE and RXMxx0

RXM1x2:

Figure 17: front panel RXM1x2
