3 Installation
Chapter Scope
3.1 Mounting instruction
The IPC cooling is designed for wall mounted orientation of the box. The orientation of the heat sink fins
depends on the order code. There are three kinds of fixings possible.
3.1.1 Flat wall mounting
Clearances flat wall mounting

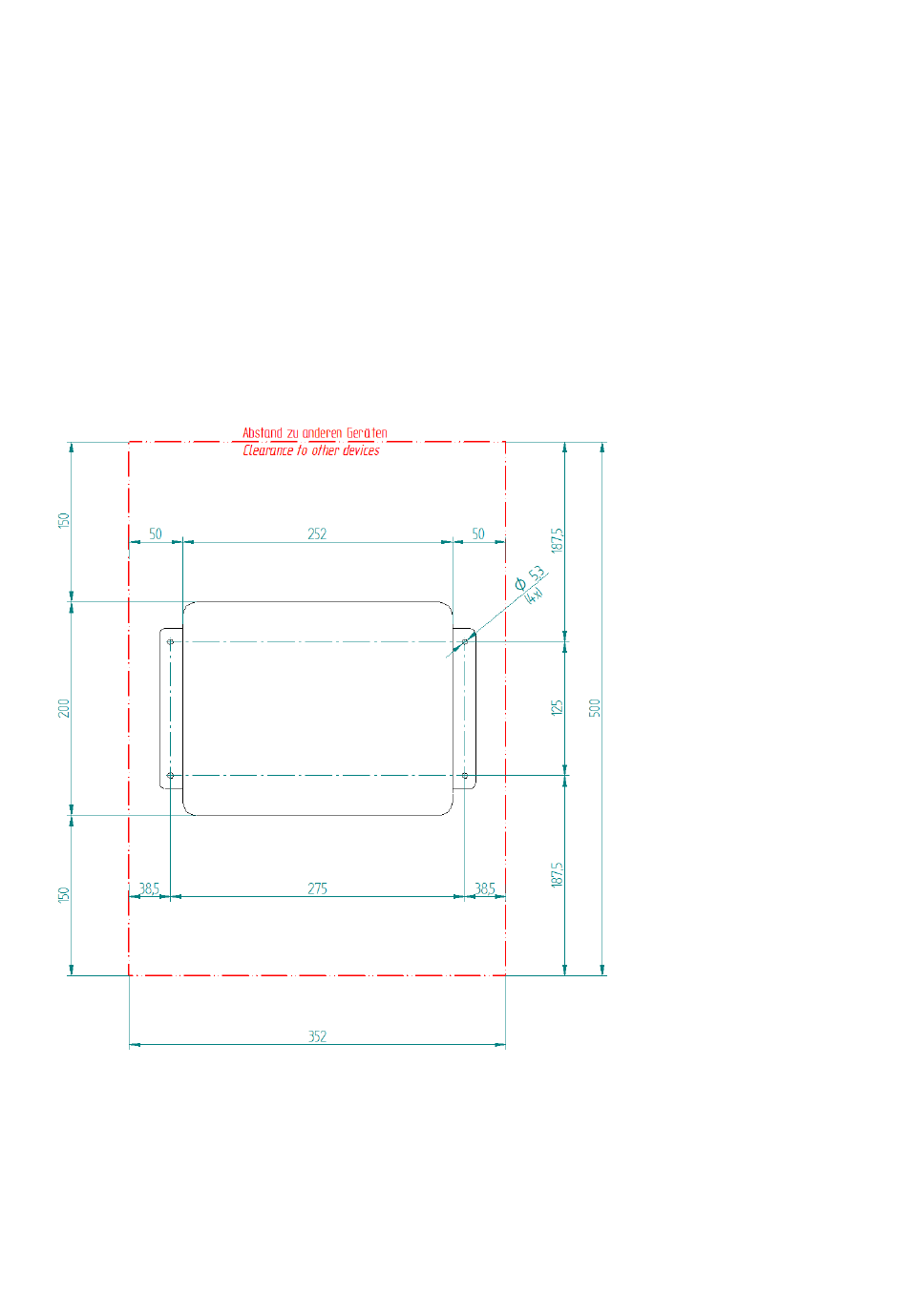

For best heat dissipation observe the minimum clearances from the drawing below.
Figure 2; Heat dissipation drawing
PACSystems RXi Box IPC-XP Hardware Reference Manual
Internal
This chapter covers the installation of the RXi Box IPC-XP and initial power-on
operations.
GFK-2990
23
