4.3.9 Power Connector

The power inlet into the RXi Box IPC-XP is a PHOENIX CONTACT MC 1,5/ 3-GF-3,81connector. The corresponding
plug is a type MC 1,5/ 3-STF-3,81from PHOENIX CONTACT.

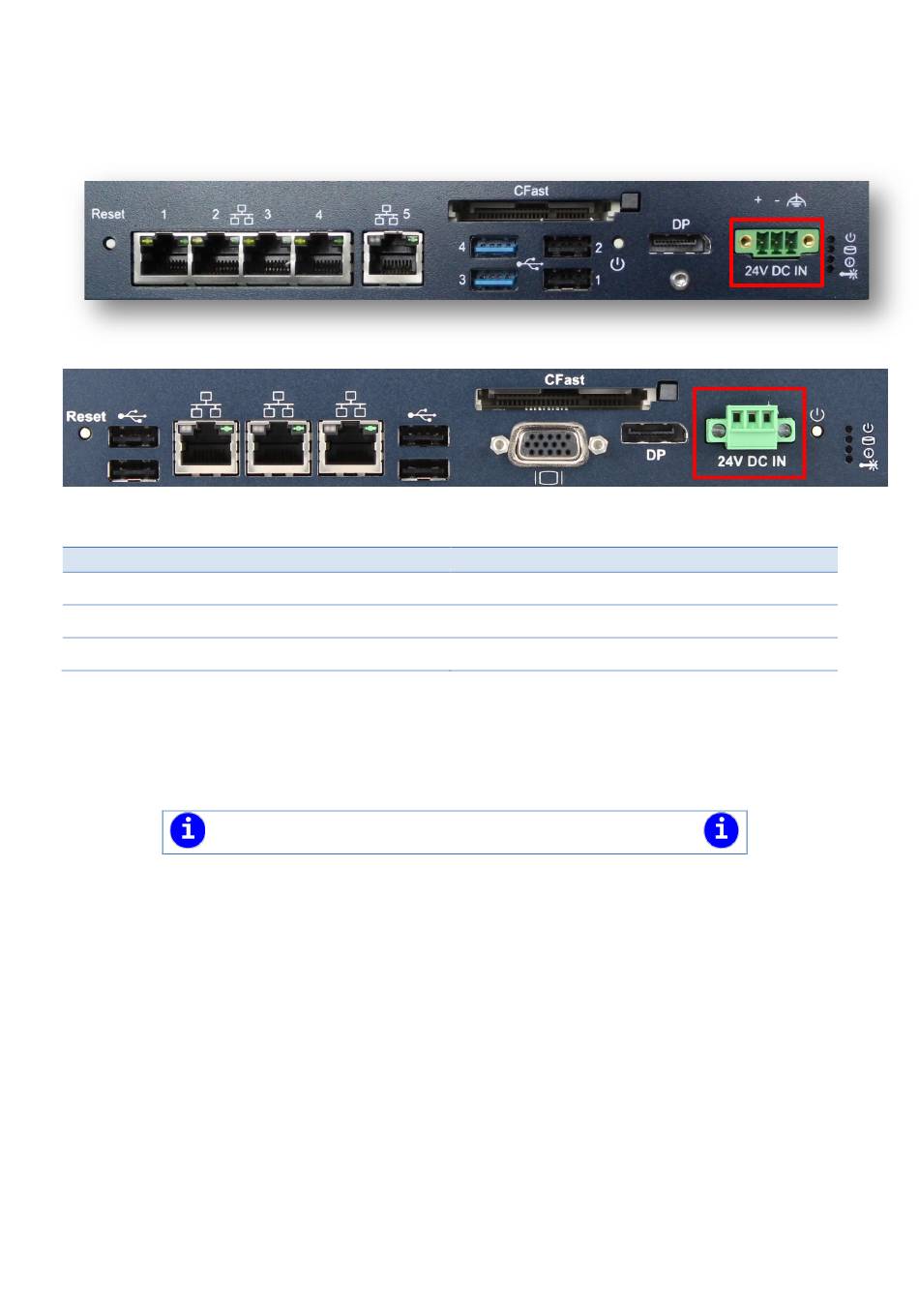

Figure 26: Power connector

Name
power +
power -
Frame GND

Table 14: Power Connector

The power input is filtered internally on the RXi Box IPC-XP. Behind the filter the power minus is connected to
GND of all connections within the RXi Box IPC-XP. Therefore when using a power supply with a supply reference
to PE ground, please connect the +24V to power plus and the GND to power minus.
Never use a power supply generating a -24V output if the positive supply is related to
PE ground. It will be shortened if any external device is connected to the RXi Box IPC-
XP.
The power input is secured with two 5A blow fuses. If the Input power exceeds the limits, these fuses will be
blown to protect all circuitry within the RXi Box IPC-XP. Please contact GE Intelligent Platforms for a suitable
replacement.
PACSystems RXi Box IPC-XP Hardware Reference Manual
Internal
1
2
3
NOTE
GFK-2990 49
