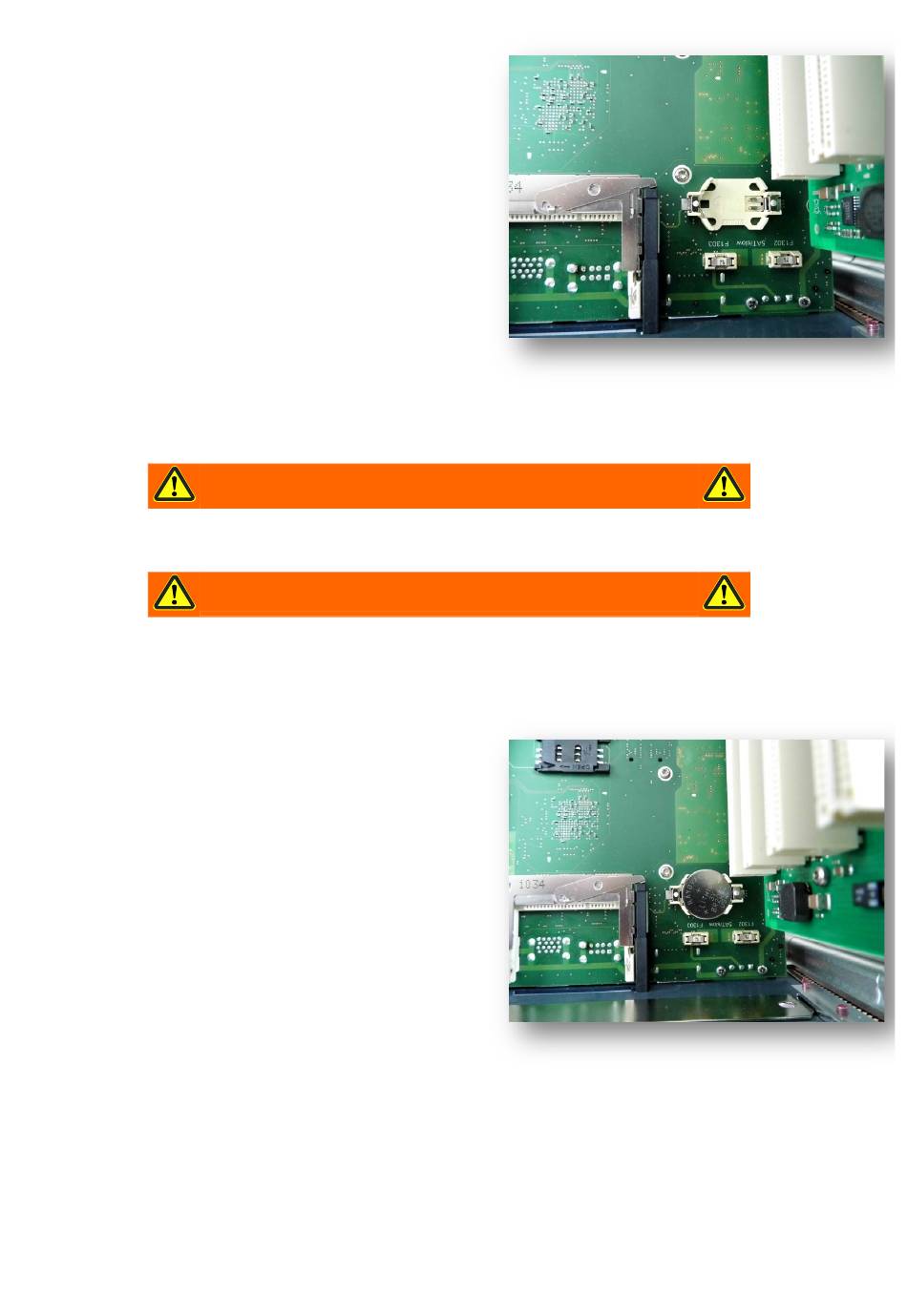

Figure 12: Removed Battery; Figure 13: Retaining Clip With Battery - GE PACSystems RXi-XP IPC Hardware Reference Manual

3. Remove the RTC battery from the retaining clip.
Use of a different type of battery than that specified here may present a risk of fire or
explosion!
Battery may explode if mistreated. Do not recharge, disassemble, heat above 100°C or
incinerate!
4. Install the new battery in the retaining clip with
the positive (+) side up.
PACSystems RXi Box IPC-XP Hardware Reference Manual
Internal

Figure 12: Removed battery

WARNING
WARNING

Figure 13: Retaining clip with battery
