4.3.8 USB 3.0 Connectors (USB 3-4; not on RXM1x2)
Four USB channels are available at standard USB Type A connectors. Each pair of them is fused with 2 A, but
for normal operation don't exceed 0.5 A per connector. The blue USB connector supports USB 3.0 when used
with the bCOM6L14 CPU module.

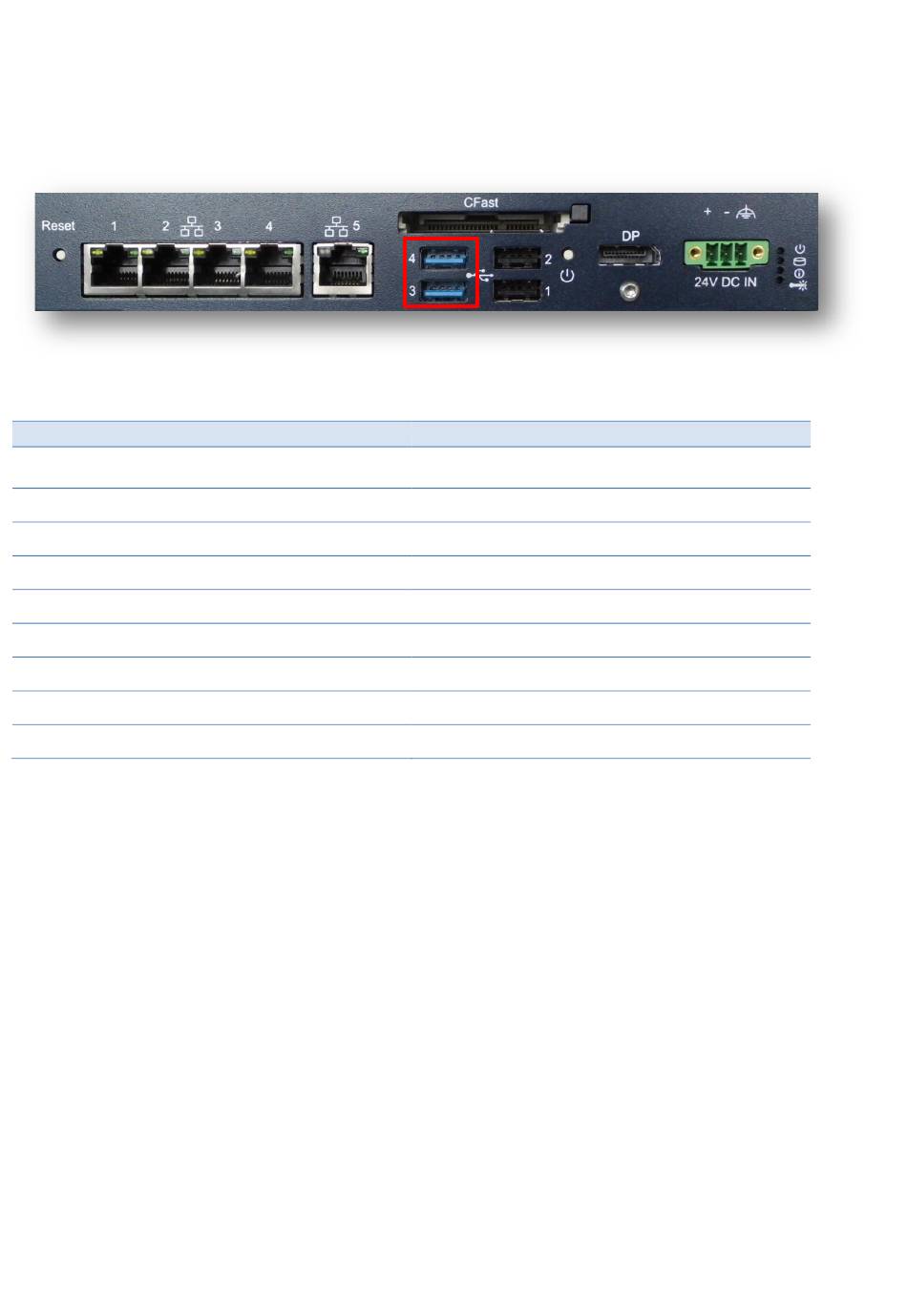

Figure 25: USB 3.0 connectors

Name
a
FUSE_VCC
USB-
USB+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
Table 13: USB port 3-4
a
the FUSE_VCC pin has a 2 A fuse. For normal operation don't exceed 0.5A current per connector.
PACSystems RXi Box IPC-XP Hardware Reference Manual
Internal
1
2
3
4
5
6
7
8
9
GFK-2990 48
