Flat wall mounting through the wall
To fix the IPC with screws from the wall side, you need drill holes in the wall. The positions for the holes can be
taken from the drawing below. The thread in the housing is a M6 with a usable thread length of 15 mm.
Choose the screw length so that a minimum of 10 mm thread will be used. Use a torque of 3.5 Nm.

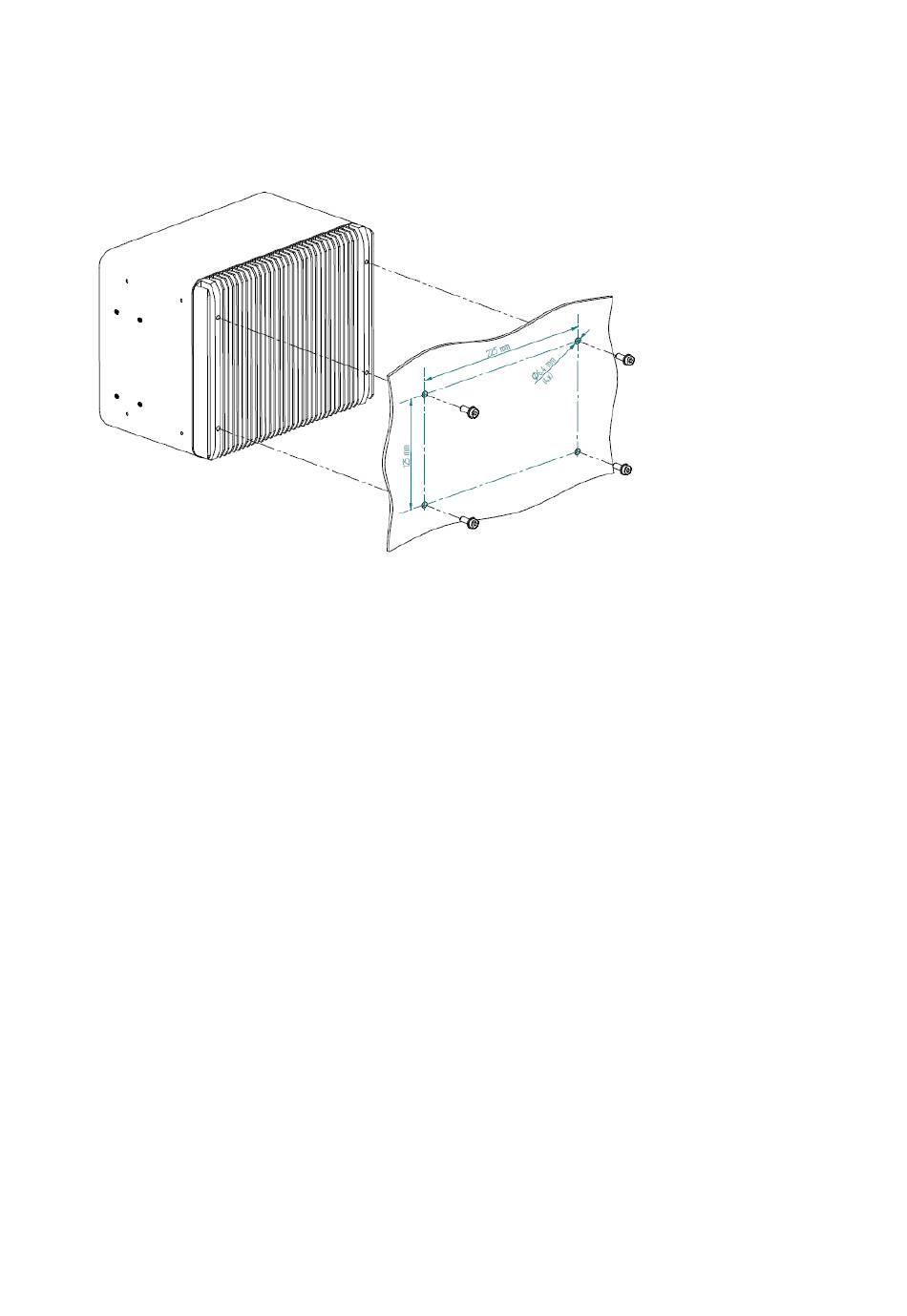

Figure 5: Flat wall mounting through the wall – illustration
PACSystems RXi Box IPC-XP Hardware Reference Manual
GFK-2990
26
