3.1.2 Slim Mounting

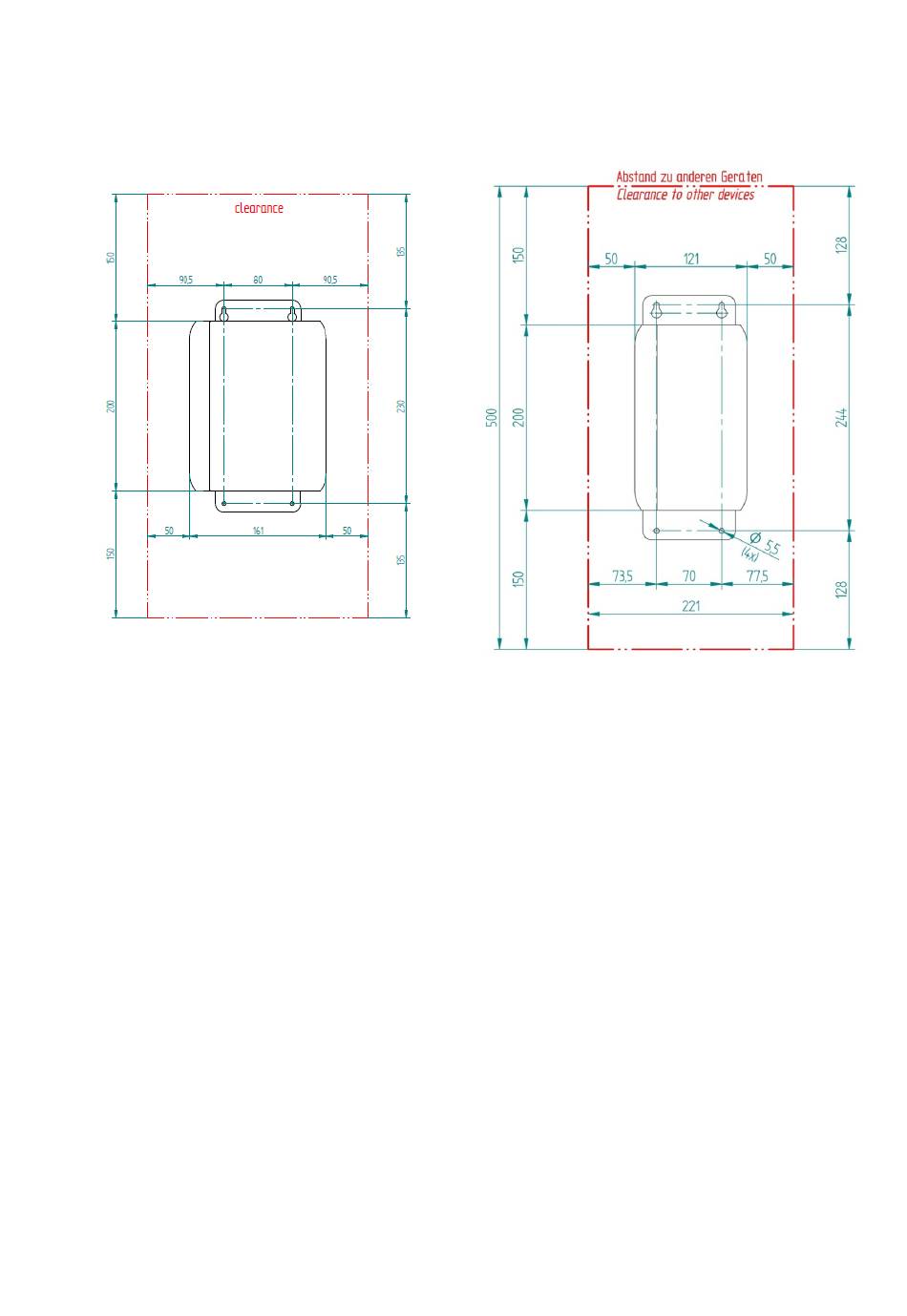

Clearances slim wall mounting
For heat dissipation observe the minimum clearances from the drawing below:
Slim 80 mounting plate
ACCMP01
Slim 70 mounting plate
ACCMP03
ICRXI
ICRXI
Figure 6: Clearances slim wall mounting – illustration
PACSystems RXi Box IPC-XP Hardware Reference Manual
GFK-2990
27
