4.3.2 Power Button

There is a Power Button at the front panel. Please use an appropriate tool for operation when needed.

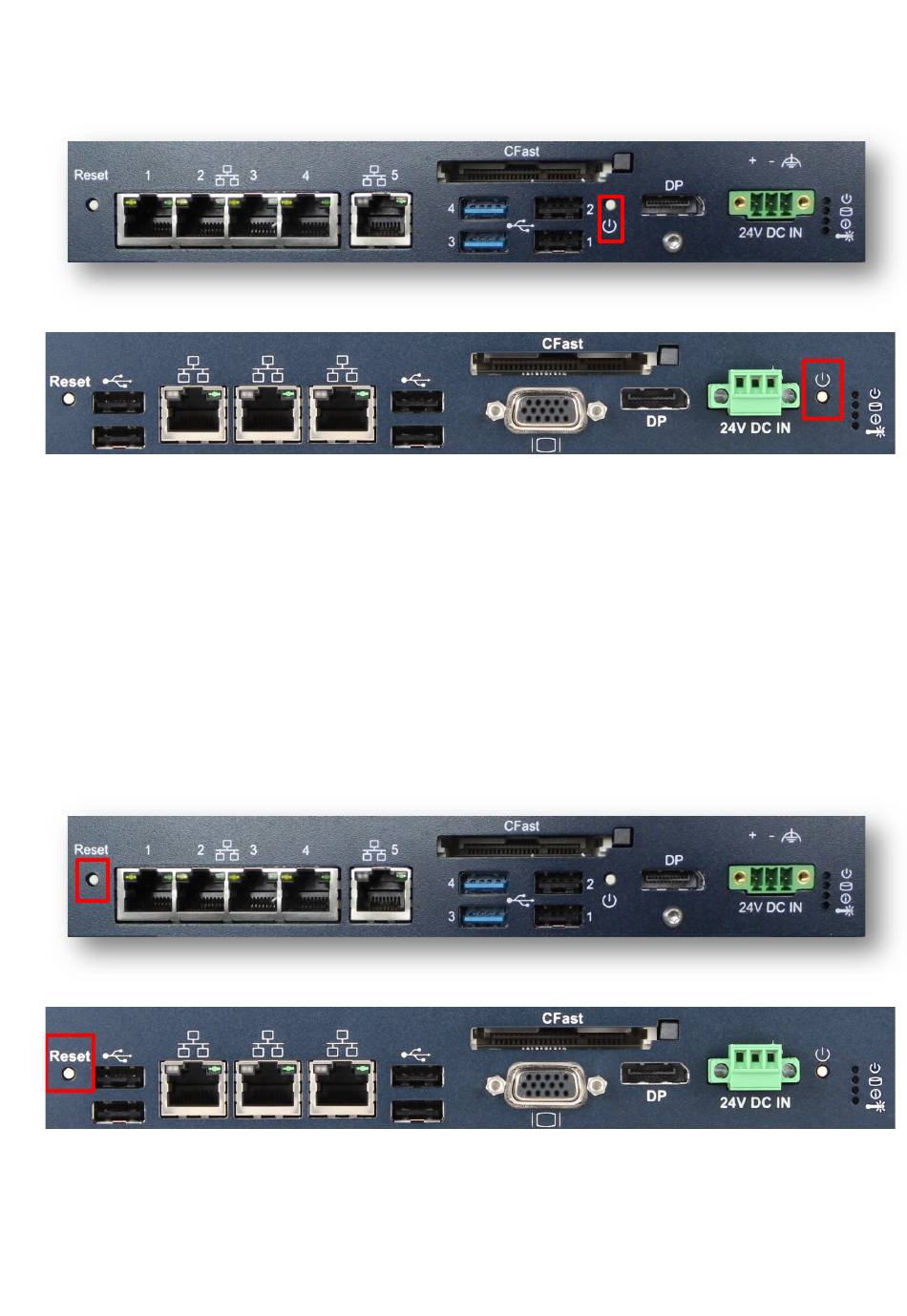

Figure 19: Power button

A short push of the power button triggers the operating system shutdown (Power State S5). If the operating
system doesn't react, holding the button pushed for more than 5 seconds forces the RXi Box IPC-XP to shut
down immediately without operating system support.
State S5 (Soft-Off-Mode) will switch off the CPU core power and hold the RXi Box IPC-XP in reset. The state S5 is
indicated with an amber Power LED. At this state it is possible to reactivate the RXi Box IPC-XP with a short
press of the Power Button. The CPU core voltage is switched on and the boards restart.

4.3.3 Reset Button

There is a Reset button at the front panel. Please use an appropriate tool for resetting the RXi Box IPC-XP.

Figure 20: Reset button
