Flat Mounting with Mounting Plates
The choice of correct screws depends on the nature of the wall. The mounting plates have 4 drills holes with a
diameter of 5.3 mm. So the maximum screw diameter cannot be higher than 5.2 mm. The head of the screws
have to be smaller than 10 mm, to pass the hole of the top fixing points of the mounting plate.
NOTE
The mounting plate for 2-slot and 4-slot version will be the same.

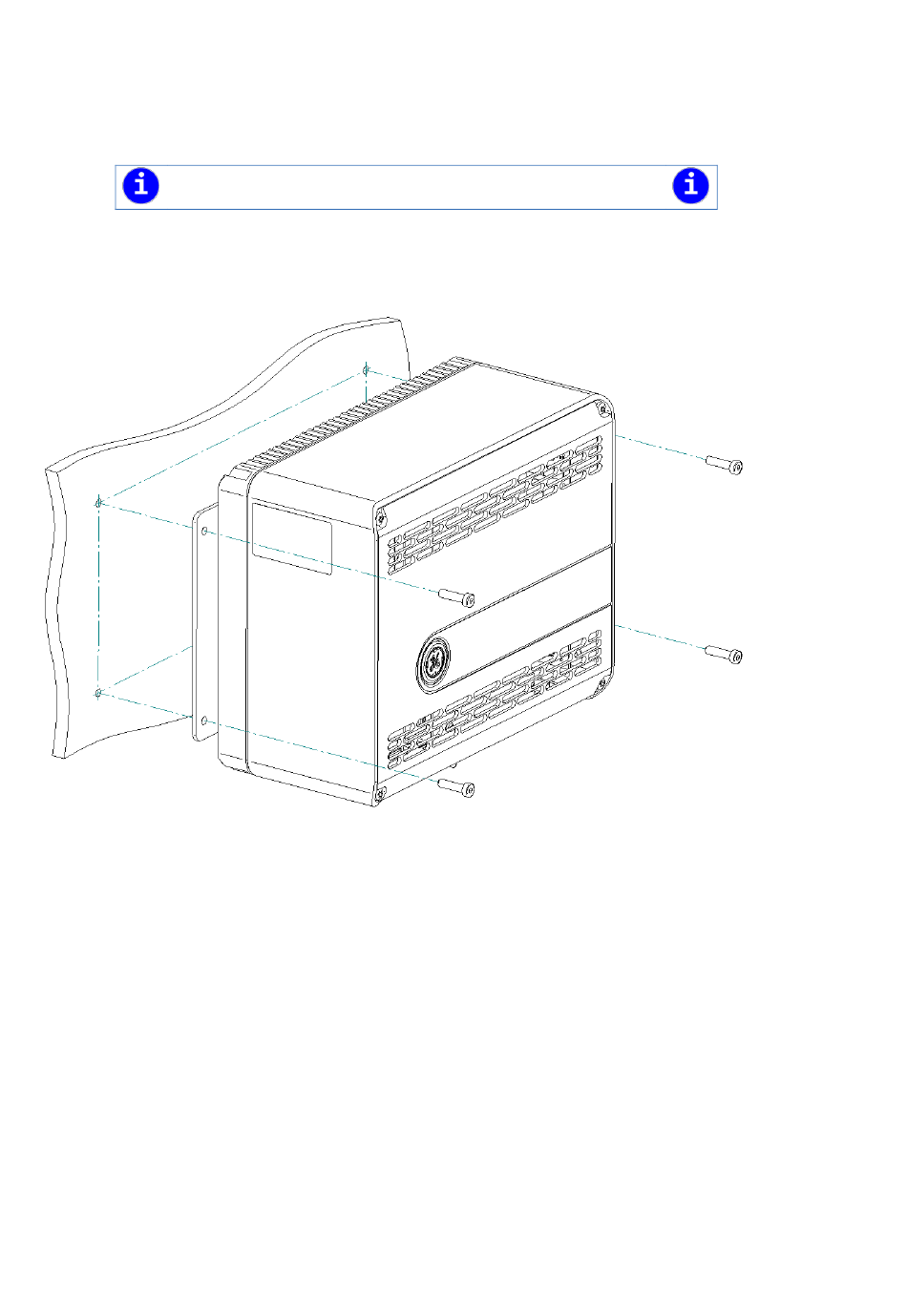

Figure 3: Flat mounting with mounting plates
PACSystems RXi Box IPC-XP Hardware Reference Manual
GFK-2990
