Planning Information6" Recirculating Evaporative Cooling
Planning Information
System Layout
The Sump Assembly can be installed anywhere within a system following these guidelines....
•The maximum length of the system is determined by the Pump used (See "Submersible Pump
Options" on page 5). Maximum system length includes the length of system on both sides of the
Sump in "Sump in the middle" and "around the corner" systems.
•A system can turn 90° around a corner with the use of a 50464 Corner Kit. Install the Sump on the wall
with the longest Pad Length.
•The maximum amount of slope is 1-1/2"[38 mm] per system. The Sump end must be level with, or
lower than the rest of the trough.
2
The Sump must be on Side with
the longest Pad length.
6
2
1
Sump on End of System
Sump in Center of System
3
Mv1669-019 04/01
3
Item
Description
1
Maximum length = 70'
2,3
Maximum length each = 70'
2+3
Max length of system Determined by
Pump used (See page 5)

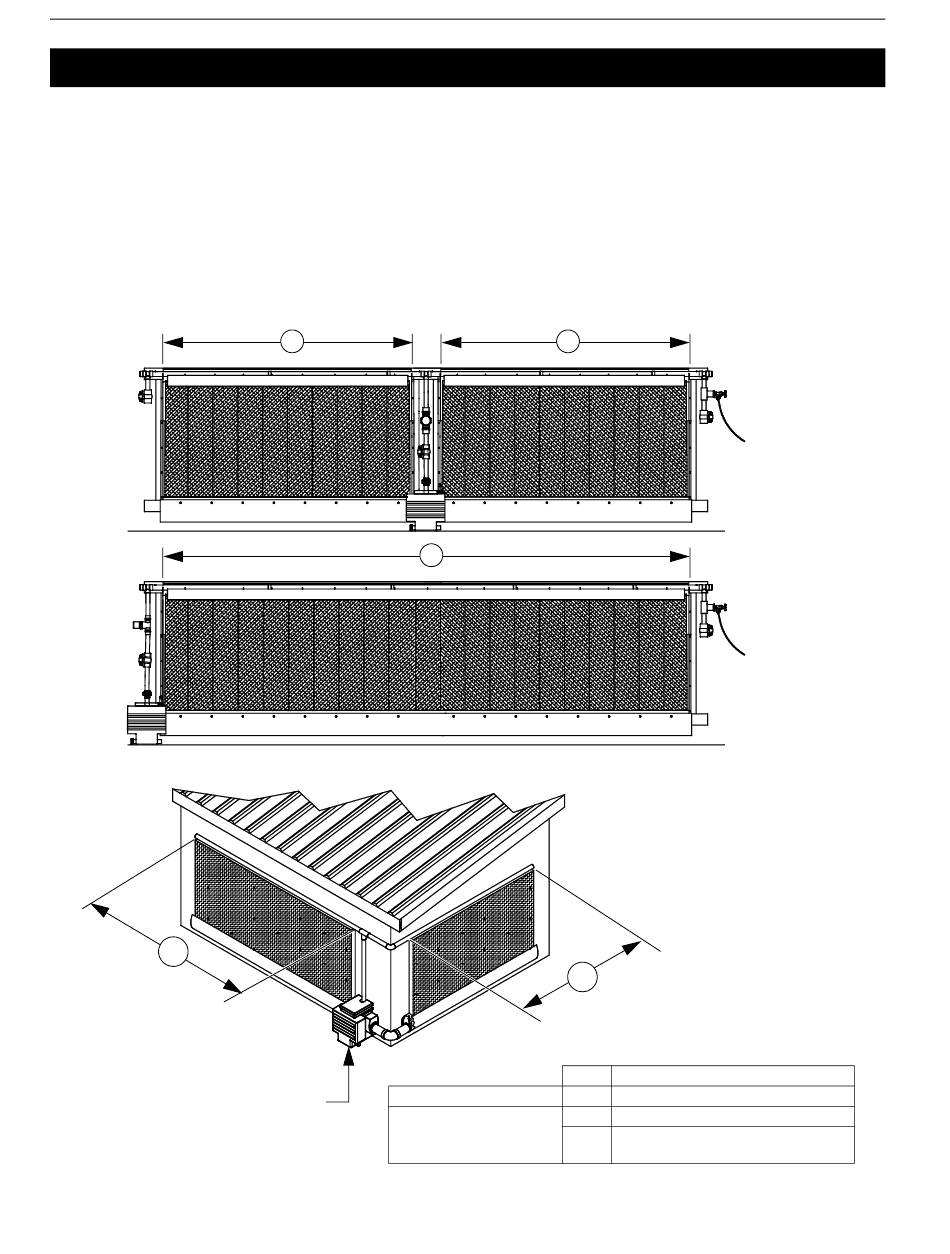

Figure 1.System Layout
