Trough Installation

Orient the Trough so that the Pattern of holes on top are offset to the left of the holes
across the bottom (See Figure 9, Item 6).
Hang the Trough from the Bottom Stringer beginning with one end of the Trough
Material against the Sump and the top holes in the Trough Material aligned with the
Chalk-Line. The top holes in the Trough Material and the Chalk-Line mark the
location for the Trough Supports. Use the 1/4 x 1-1/2" Lag Screws to attach the
Trough Supports and Trough Material to the Bottom Stringer as shown in Figure 9.
2
Item
1
2
3
4
5
1/4 x 1-1/2" Lag Screw
6
Top Hole Offset to left of Bottom Hole

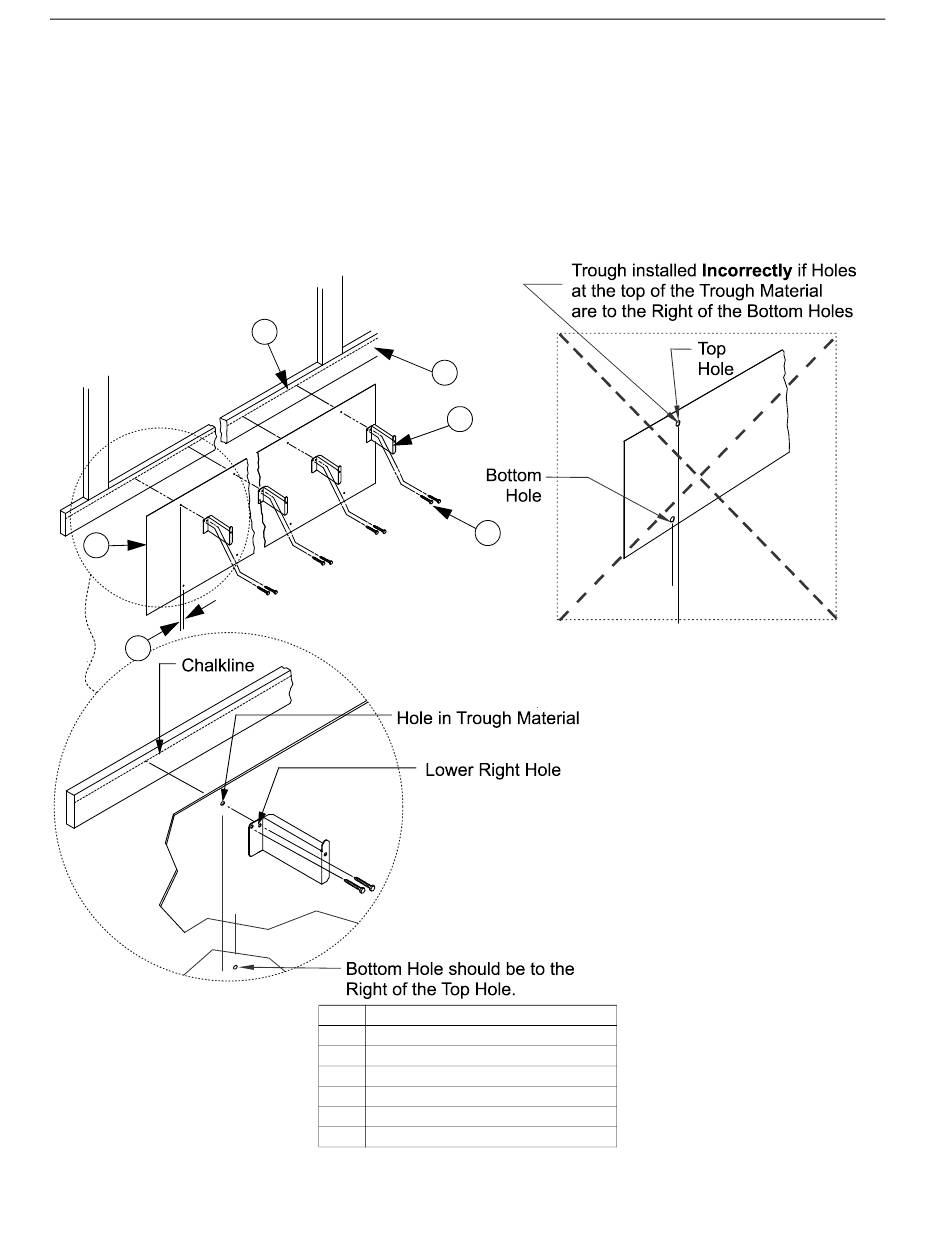

Figure 9.Installing the Trough
3
4
5
Description
Trough Material
Bottom Stringer
Chalk-Line
Trough Support
MV1669U
