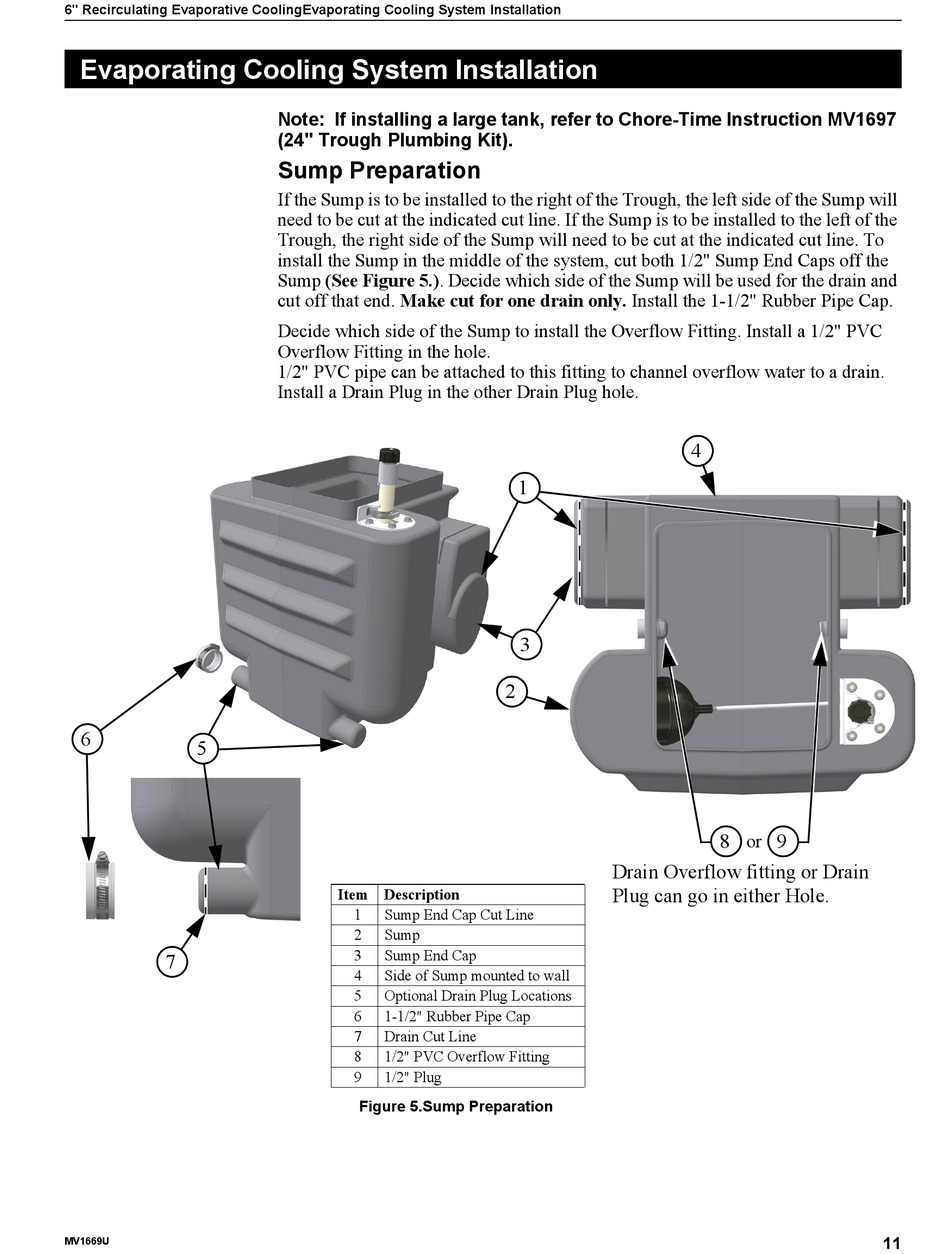

6" Recirculating Evaporative CoolingEvaporating Cooling System Installation

Evaporating Cooling System Installation

6
5
7
MV1669U
Note: If installing a large tank, refer to Chore-Time Instruction MV1697
(24" Trough Plumbing Kit).

Sump Preparation

If the Sump is to be installed to the right of the Trough, the left side of the Sump will
need to be cut at the indicated cut line. If the Sump is to be installed to the left of the
Trough, the right side of the Sump will need to be cut at the indicated cut line. To
install the Sump in the middle of the system, cut both 1/2" Sump End Caps off the
Sump (See Figure 5.). Decide which side of the Sump will be used for the drain and
cut off that end. Make cut for one drain only. Install the 1-1/2" Rubber Pipe Cap.
Decide which side of the Sump to install the Overflow Fitting. Install a 1/2" PVC
Overflow Fitting in the hole.
1/2" PVC pipe can be attached to this fitting to channel overflow water to a drain.
Install a Drain Plug in the other Drain Plug hole.
Item
Description
1
Sump End Cap Cut Line
2
Sump
3
Sump End Cap
4
Side of Sump mounted to wall
5
Optional Drain Plug Locations
6
1-1/2" Rubber Pipe Cap
7
Drain Cut Line
8
1/2" PVC Overflow Fitting
9
1/2" Plug
Figure 5.Sump Preparation
1
3
2
Drain Overflow fitting or Drain
Plug can go in either Hole.
4
8
9
or
11
