6" Recirculating Evaporative CoolingEvaporating Cooling System Installation
2A
Metal Pipe Support and Water
Deflector
PVC Pipe Support and Water
2B
Deflector
MV1669U

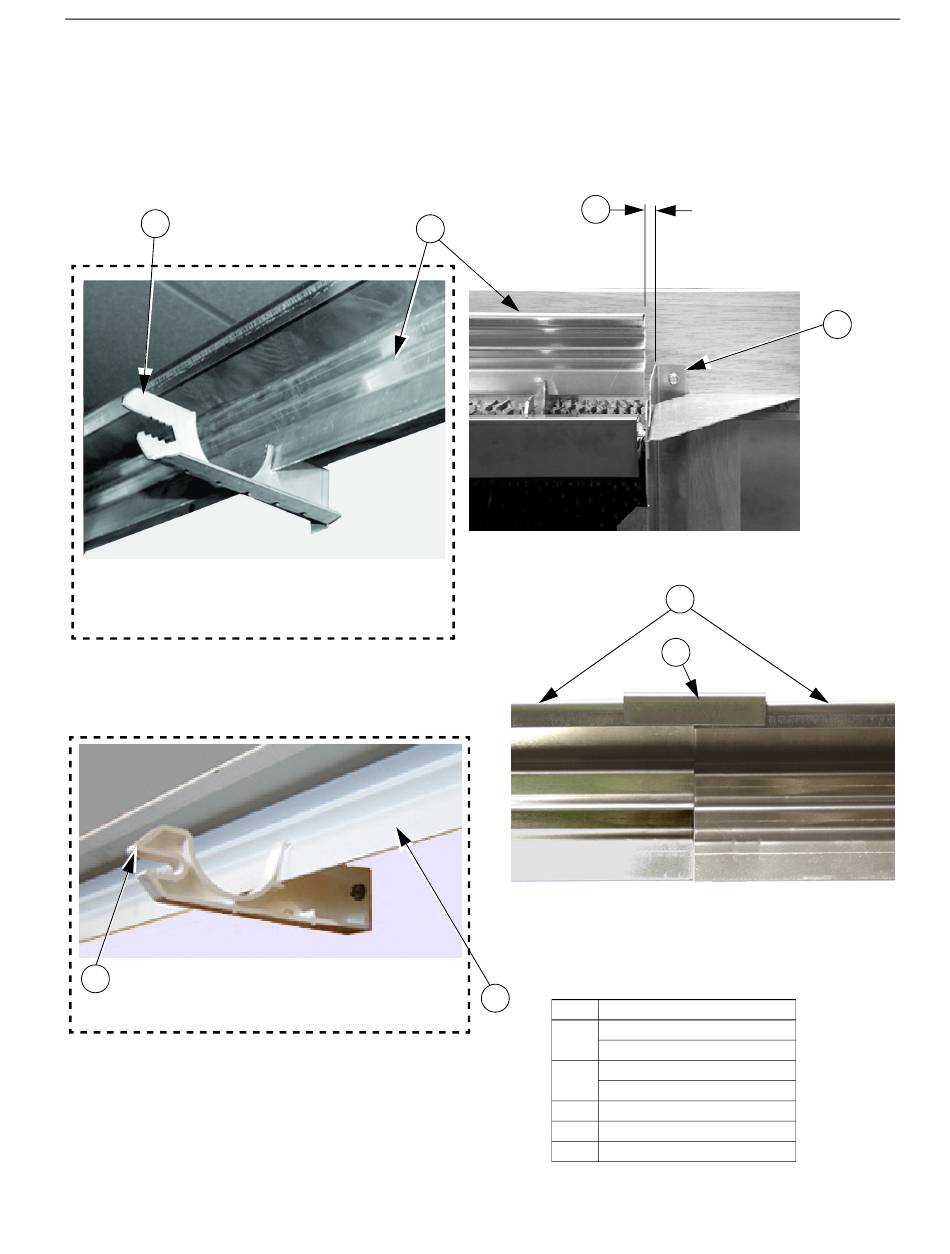

Water Deflector Installation (PVC and Metal shown)

Install Deflectors (Item 1A if Metal, or 1B if PVC, Figure 13) on the Pipe Supports
(Item 2A if Metal, or 2B if PVC) as shown. Use Deflector Couplers (Item 5) to
cover the joints between adjacent Deflectors. Install the End Panels leaving a 1/8"
gap between themselves and the last Deflector.
1A
Figure 13.Water Deflector Installation
4
1B
Item
Description
1A
Water Deflector (Metal)
1B
Water Deflector (PVC)
2A
Pipe Support (Metal)
2B
Pipe Support (PVC)
3
End Panel
4
1/8"
5
Deflector Coupler
3
Mv1669-011 04/01
1A
5
17
