Evaporating Cooling System Installation6" Recirculating Evaporative Cooling
Apply Silicone Caulk
before attaching End Panel
16

End Panel Installation

First install the end panels at the Sump end. Install the End panels opposite the Sump
end after installing the Deflectors (next step); this makes the system assemble easier
due to small variations in system length.
1.Apply a bead of silicone caulk to the end 2 x 4 as shown in Figure 12.
2.Install the Upper End Panel flush with the inside edge of the end 2 x 4 with the
top hole aligned with the Chalk Line on the Top Stringer. Use a 1/4 x 1-1/2"
Screw through the top hole in the Upper End Panel to secure the End Panel in
position.
3.Overlap the lower End Panel on the outside of the Upper End Panel to provide
proper watershed. Align the holes in the Upper and Lower End Panels keeping
the Panels flush with the inside edge of the end 2 x 4. Us 1/4 x 1-1/2" Screws to
attach the End Panels to the end 2 x 4's.
1
Item
Description
1
Chalk-Line on top stringer
2
1/4 X 1-1/2'' S.S. Screw
3
Upper End Panel
4
Lower End Panel
5
#10 x 1/2 S.S. Screw
*Not actual size; shown for
comparison only

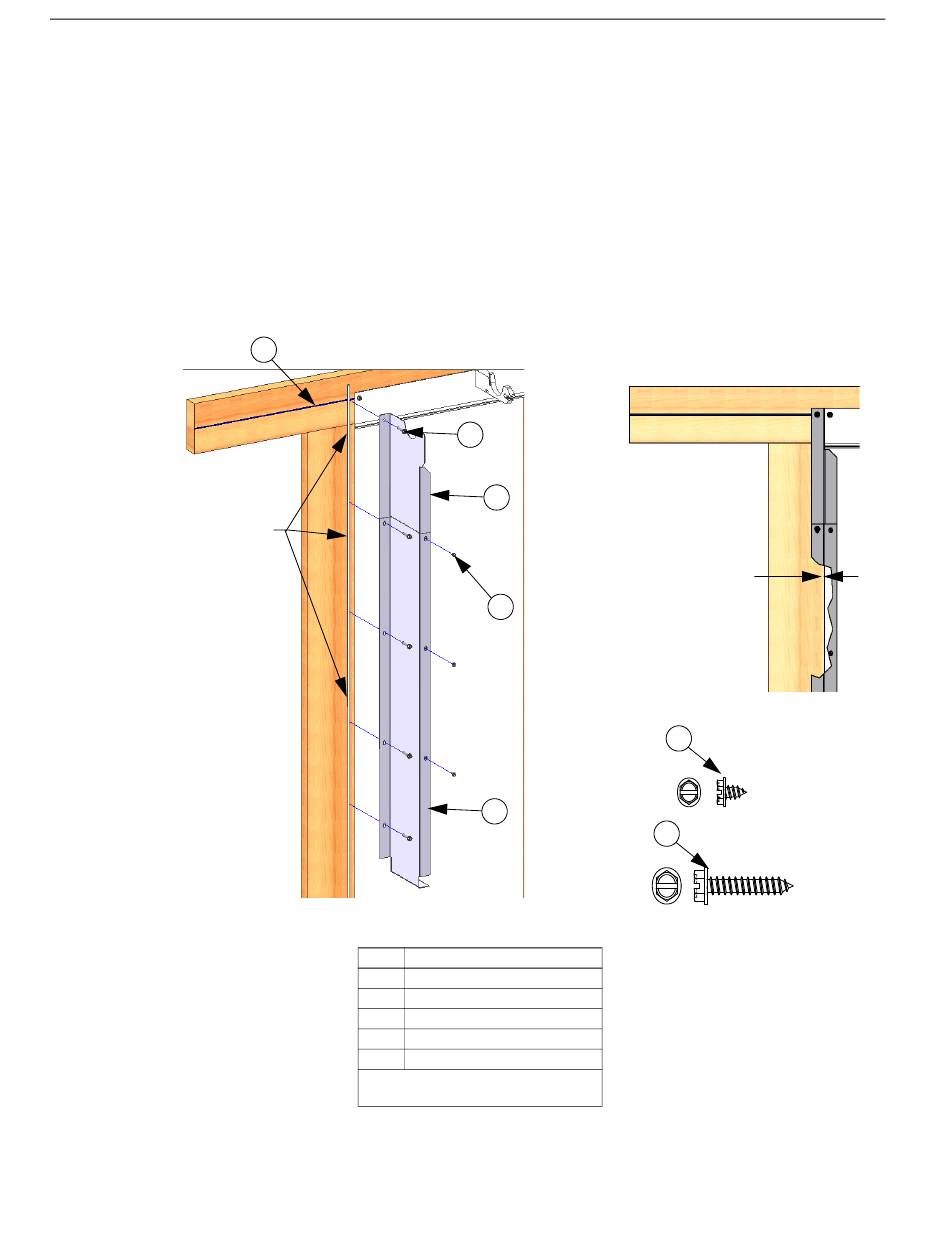

Figure 12.End Panel Installation
2
3
End Panel Flush
with End Framing
5
4
5 *
2 *
MV1669U
