Evaporating Cooling System Installation6" Recirculating Evaporative Cooling
18

Distribution Pipe Installation

1.Set this Distribution Pipe on the Pipe Hangers above the Sump end of the
Trough.
Note: The belled end must be away from the Sump end. See Figure 14.
2.Assemble the remaining Distribution Pipes by inserting the straight end of one
pipe into the belled end of another. Align a hole in the belled end with the hole
in the straight end and join the pipes using a 1/4 x 1/2" Screw through these
holes. It is not necessary to glue the distribution pipes together.
3.At the Sump End of the system the Distribution Pipe should 
extend 8"[20.32 cm] beyond the edge of the End Panel. (See Figure 14, Item 8)
The Pipe should extend at least 6" past the opposite End Panel.
4.Install a 1/4 x 1/2'' Screw in each spray hole that falls outside the End Panels at
either end.
5.Install Distribution Pipe Gasket inside the End Panels at both ends of the system
as shown below in
Figure 14
Item
Description
1
1/4 x 1/2'' S.S. Screw
2
5' Distribution Pipe
3
Framing @ Sump End
4
Upper End Panel (L.H.)
5
Upper End Panel (R.H.)
6
Lower End Panel (L.H.)
7
Lower End Panel (R.H.)
8
8" [20.32 cm] Approximately at Sump end
9
Distribution Pipe Gasket

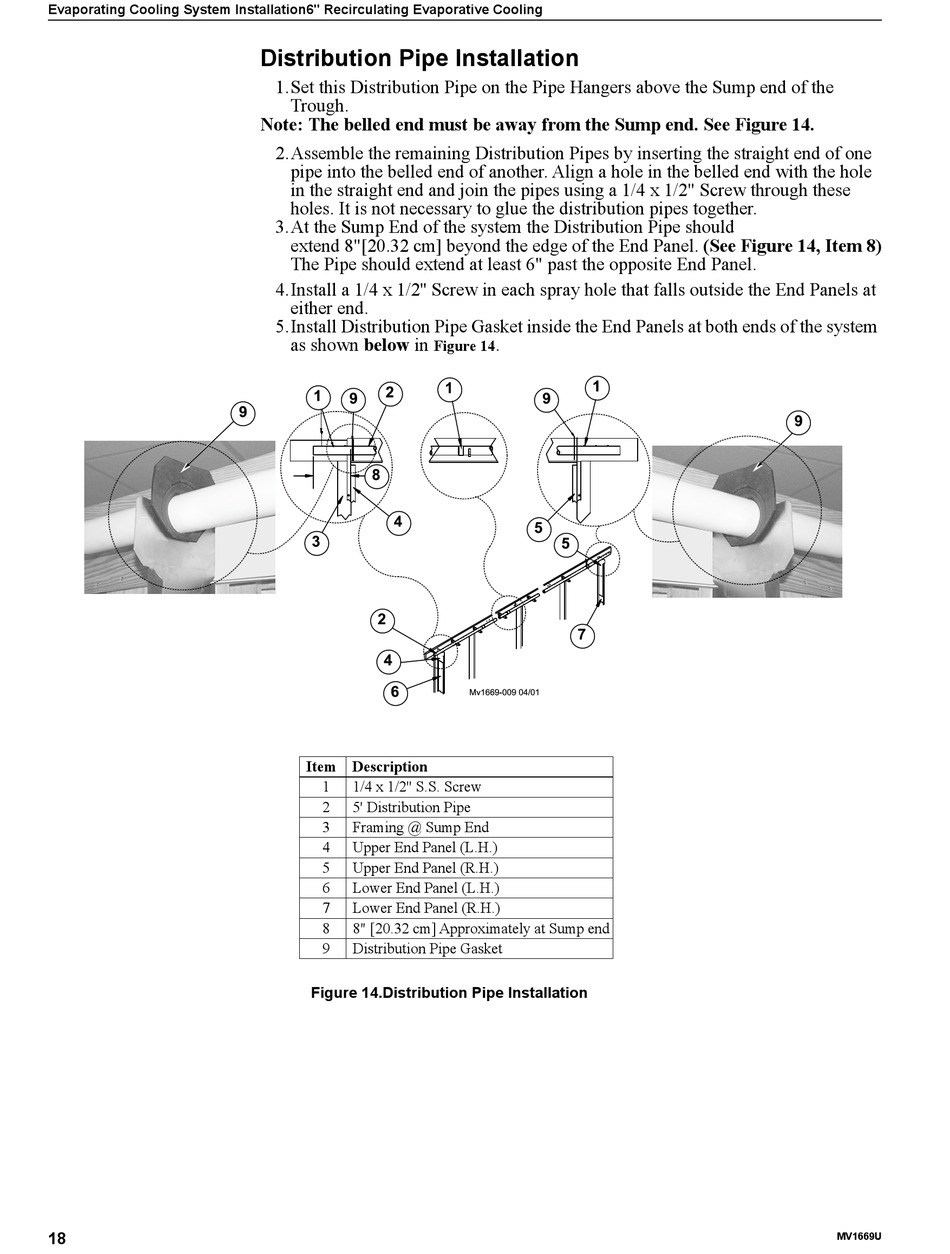

Figure 14.Distribution Pipe Installation
.
MV1669U
