Evaporating Cooling System Installation6" Recirculating Evaporative Cooling
Metal Pipe Support
and Pad Retainer
PVC Pipe Support
and Pad Retainer
22

Pad Retainer Installation

Install the Pad Retainer (Item 2A if Metal, 2B if PVC) as shown in Figure 19.
below. Lock the Pad Retainer in place by tapping it with the heel of your hand. Cover
the joint between adjacent Pad Retainers with the Pad Retainer Couplers.
5
1A
5
1B
5
2B

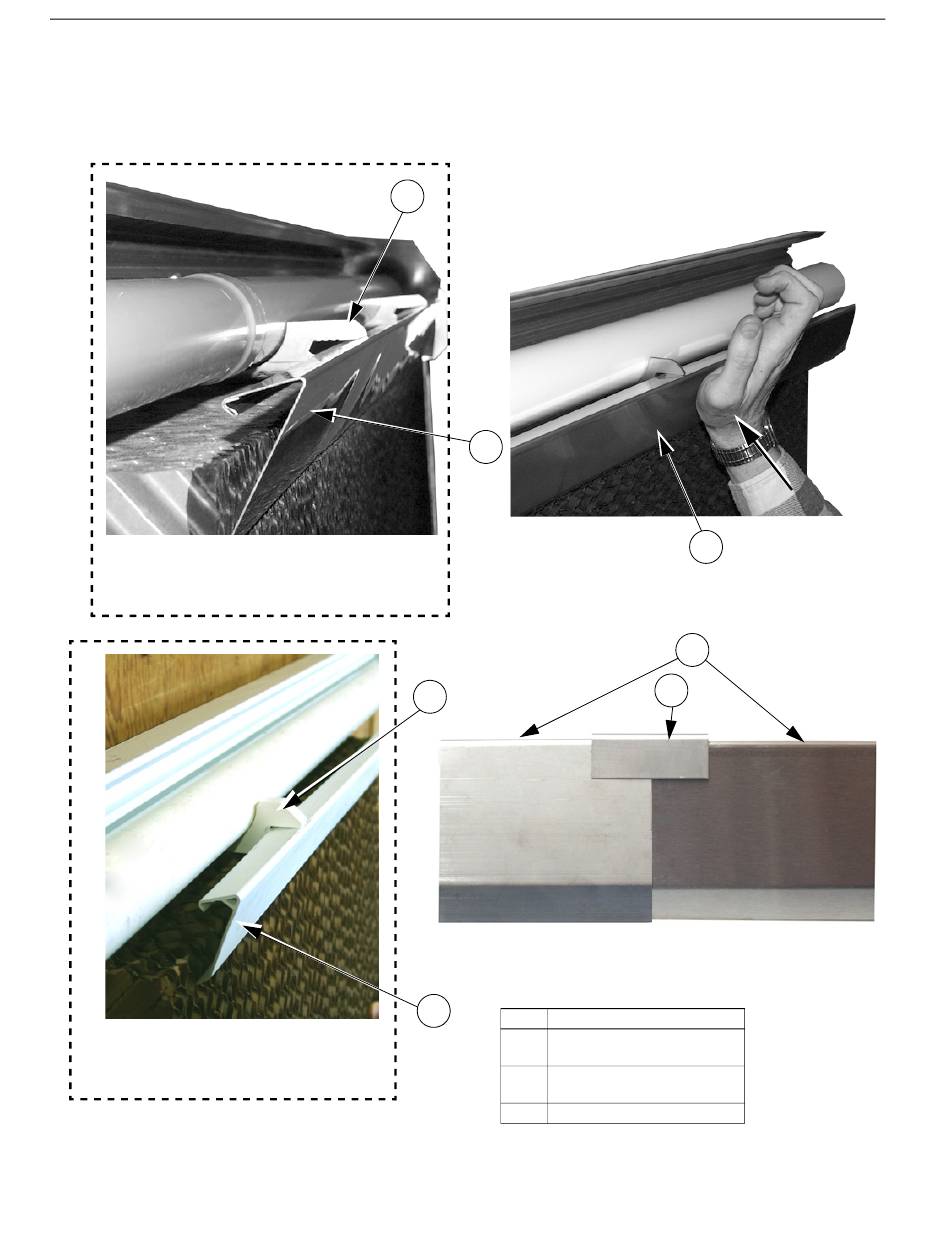

Figure 19.Pad Retainer Installation
5
2A
Mv1669-015 04/01
Item
Description
1A
Pipe Support (Metal)
1B
Pipe Support (PVC)
2A
Pad Retainer (Metal)
2B
Pad Retainer (PVC)
3
Pad Retainer Coupler
5
2A
2A
3
MV1669U
