6" Recirculating Evaporative CoolingEvaporating Cooling System Installation
1
Note:
MV1669U

End Panel Support Installation

Install the End Panel Support at both ends using 1/4 x 1-1/2 Lag Screws, as shown in
Figure 15. The End Panel Supports hold the End Panels against the Pads and keep
them perpendicular to the Top Stringer.
Mv1669-010 04/01

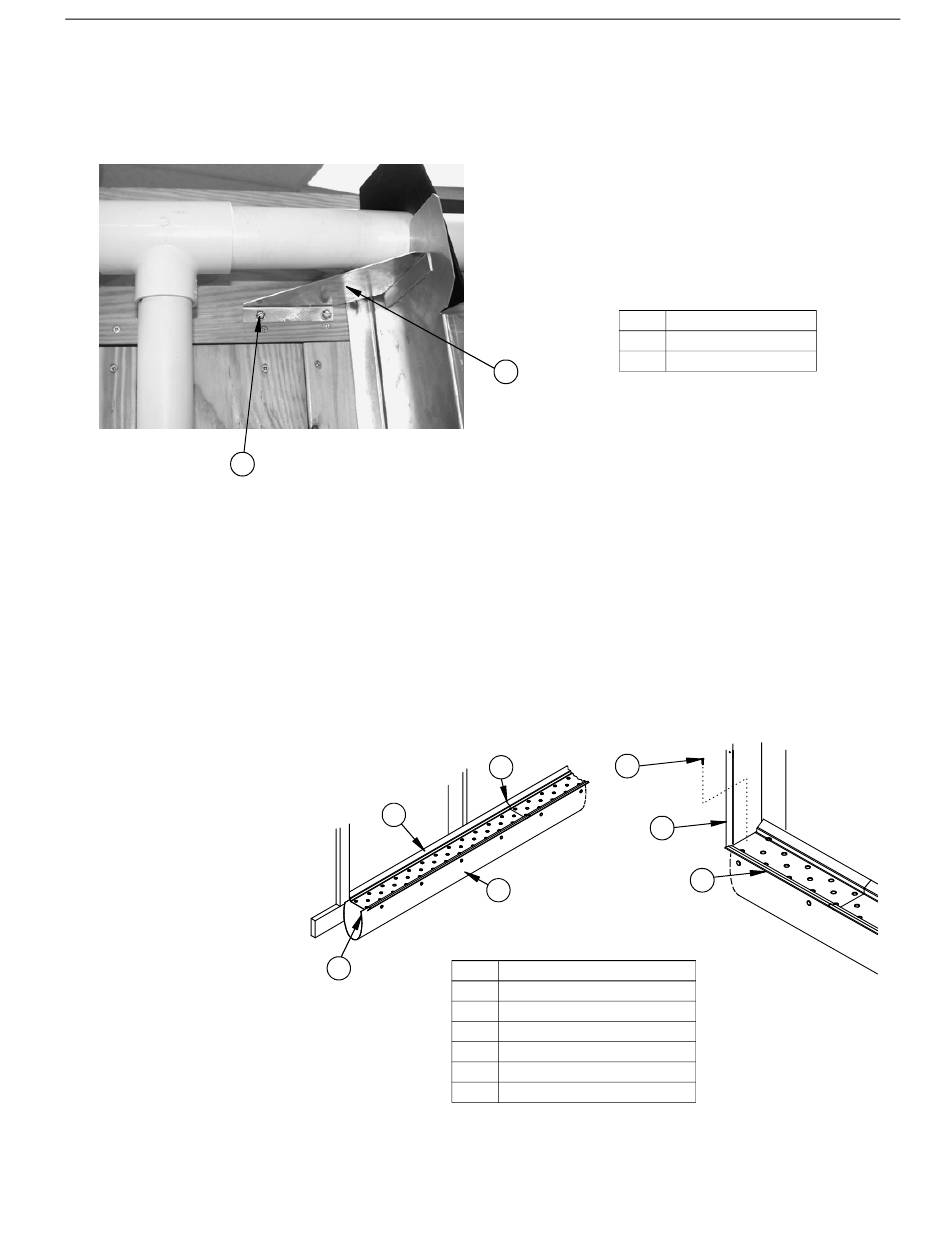

Figure 15.End Panel Support Installation

Pad Support Installation

Set the Pad Supports on the Trough Supports, as shown in Figure 16. The front edge
of the Trough should be captured inside the cavity on the front of the Pad Support.
Butt the Pad Supports end to end, beginning at the Sump End Panels. The length of
the last Pad Support can be trimmed if it is too long to fit in the remaining space.
Attach the Pad Support at either end to the flange in the Lower End Panel with a #10
x 1/2" SS Screw. (See Figure 16. below)
Sump components and End Panels not shown for clarity.
1
4
Figure 16.Pad Support Installation
Item
2
2
6
3
Item
Description
1
Pad Support
2
Pad Supports butted together
3
Trough
4
Front edge of Trough
5
Lower End Panel
6
#10 x 1/2 SS Screw
Description
1
1/4 x 1-1/2 Screws
2
End Panel Support
5
1
Mv1669-030 05/01
