6" Recirculating Evaporative CoolingEvaporating Cooling System Installation
Item
Description
1
Munters and/or General Shelters Pad
MV1669U

Evaporative Cooling Pad Installation

•Beginning at one end, set the Evaporative Cooling Pads on the Pad Sup-
ports. See Figure 18. The top of the Pads should be against the Top Stringer and
directly below the Distribution Pipe.
•Make sure the Pads are properly oriented.
•MUNTERS and/or GENERAL SHELTERS Pads: Refer to the direc-
tional arrows on the side of the pads.
•Make sure the first pad is against the End Panels.
•Push Pads tightly together and keep as vertical as possible.
•It may be necessary to use a hand-saw to trim the last Pad to fit the remain-
ing opening.

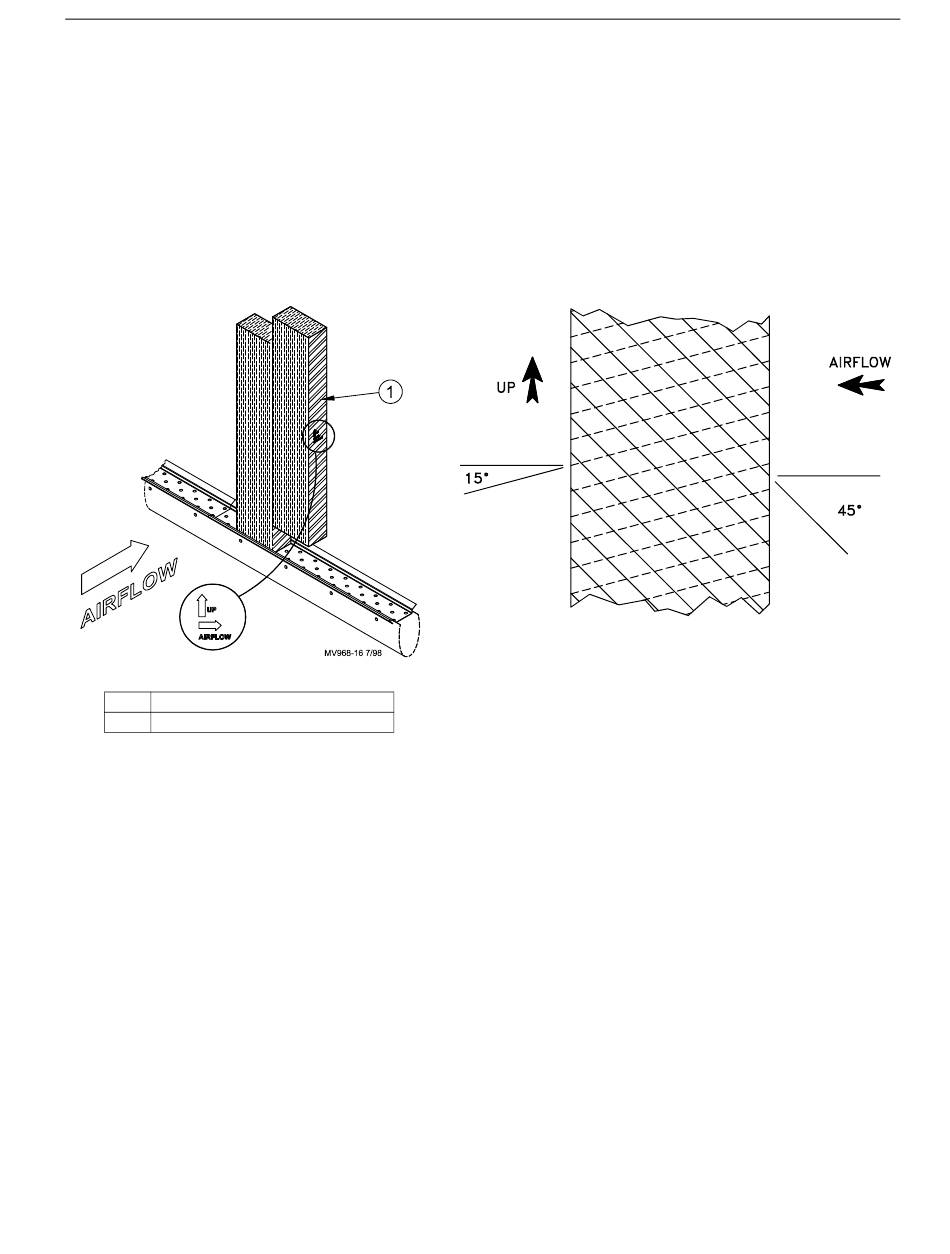

Figure 18.Pad Installation
