Distribution Pipe Orientation

Orient the Distribution Pipe so there is approximately 2" from the Distribution Pipe
Gasket to the first hole in the Distribution Pipe at the Sump End of the system as
shown in Figure 22 below.
Rotate the Distribution Pipe so the water jet spraying from the holes will hit the
deflector about 3/4" from the rear of the Deflector as shown. Maintain this orientation
of the Distribution Pipe while gluing the PVC fittings on to both ends of the
Distribution Pipe.
4
Item
1
2
3
4
5
6

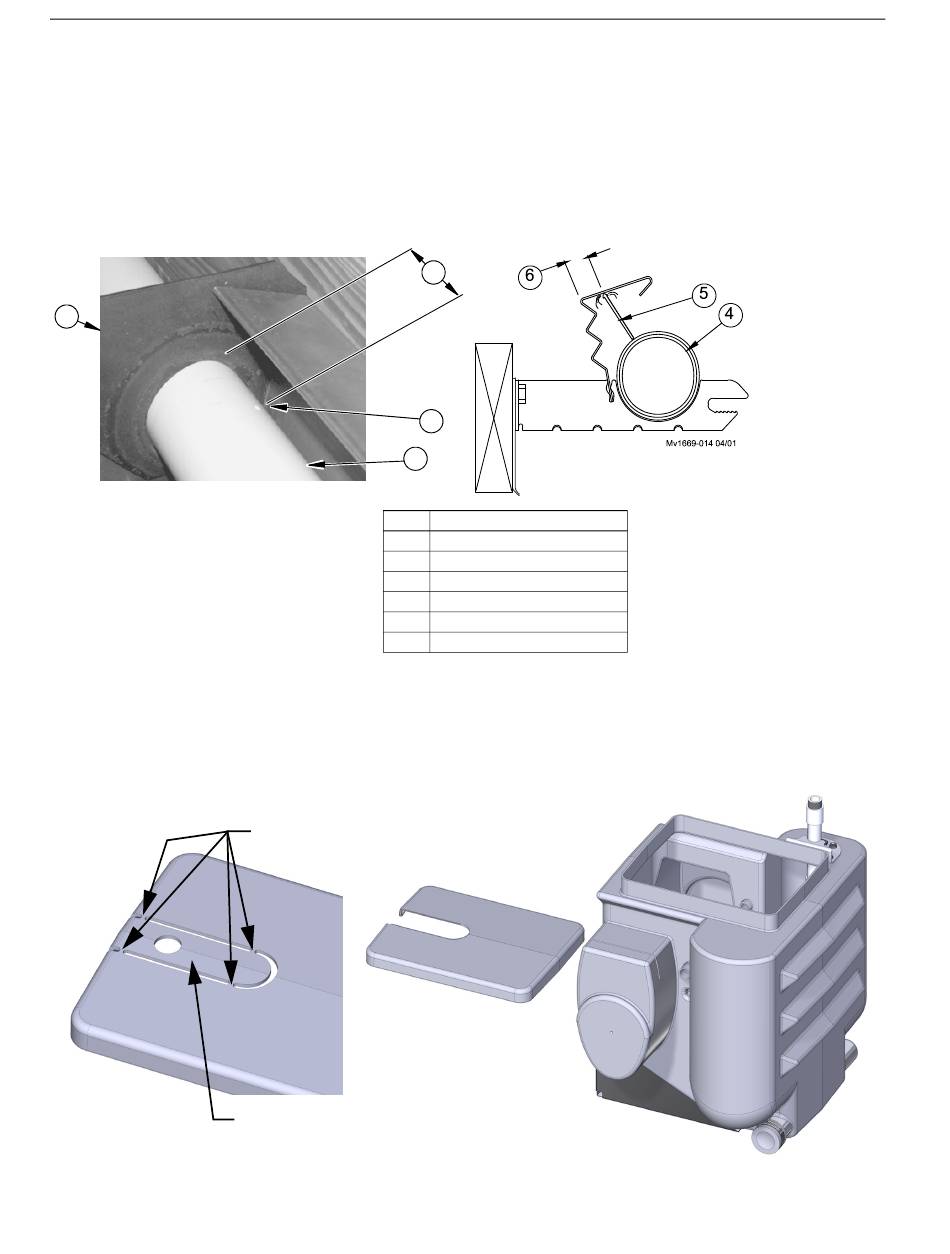

Figure 22.Orientating the Distribution Pipe

Sump Lid Cutout

Cut the Tabs in the Sump Lid to remove the cutout as shown below.
Cut
Remove
Figure 23.Sump Lid Cutout
3
2
Description
Distribution Pipe Gasket
1st Hole in Dist. Pipe
2"
Distribution Pipe
Water Jet
3/4"
MV1669U
