Evaporating Cooling System Installation6" Recirculating Evaporative Cooling
Mv1669-021 04/01
26

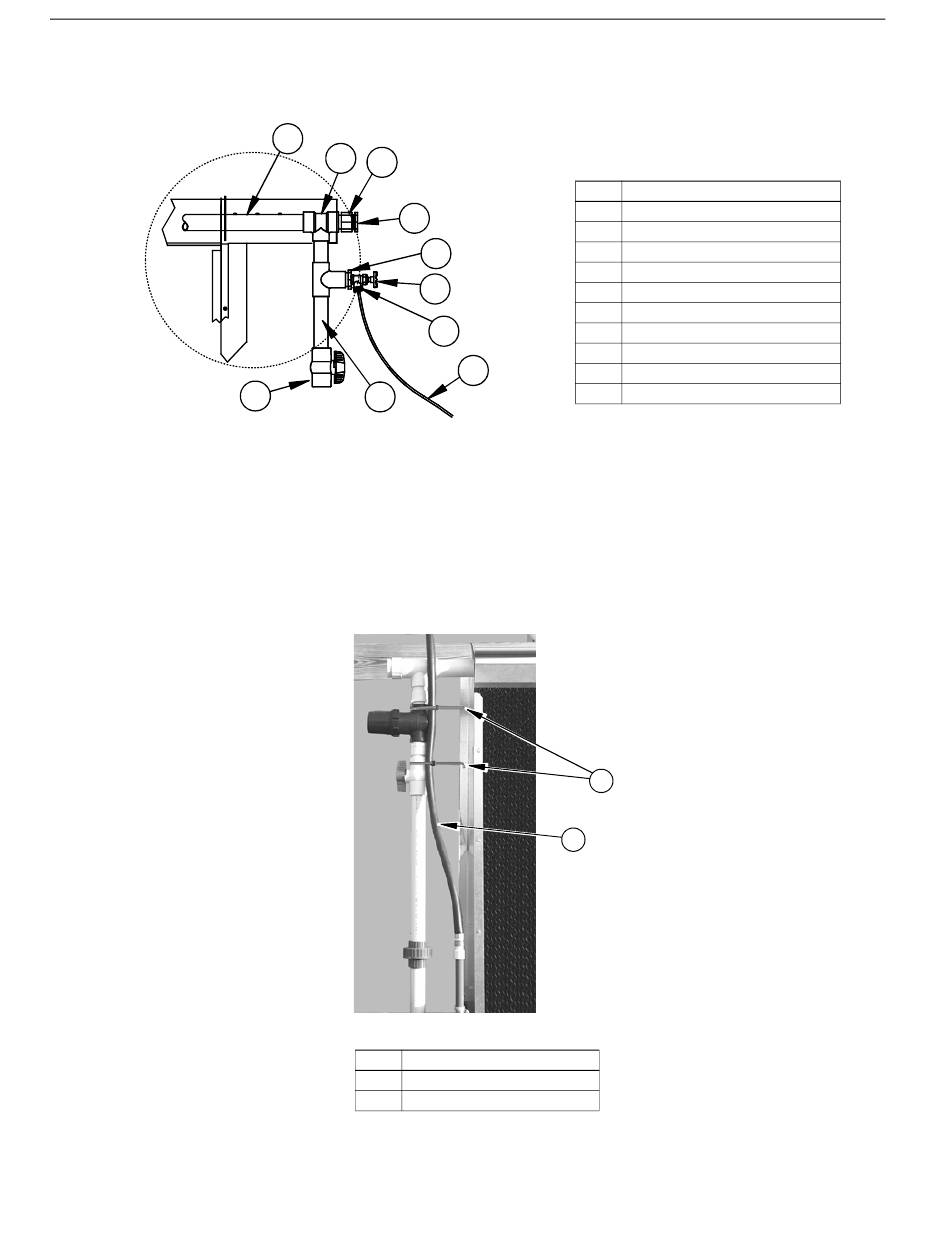

Sediment Trap Installation

Install Sediment Trap Parts as shown below in Figure 25.
1
2
3
4
10
9
Figure 25.Sediment Trap Installation

Securing Water Supply Inlet Hose

Secure the Water Supply Inlet Hose (Figure 26, Item 1) to keep it from moving
around. Movement of the Hose could cause the Float Valve to operate incorrectly.
Item
Description
1
Water Supply Inlet Hose
2
Cable Tie with UV Stabilizer
Figure 26.Orientating the Distribution Pipe
Item
1
2
5
3
4
6
5
6
7
7
8
8
9
10
2
1
Mv1670-048 02/02
Description
End of Distribution Pipe
2" x 1-1/2" PVC Tee
2" PVC SPIG x FIPT Adapter
2" PVC MPT Plug
1-1/2" x 3/4" Bushing Reducer
3/4" Water Bleed-off Valve
Hose Barb Cap
1/4" Bleed-off Hose
1-1/2" PVC Pipe Sediment Trap
1-1/2 " Ball Valve
MV1669U
