Attaching the Sump

Align the bottom most set of 1/4'' holes in the rear of the Sump with the 1/4" holes in
the Sump Support Assembly (See Figure 8.) Attach the Sump and Sump Support to
the Bottom Stringer with two 1/4 x 1-1/2" Lag Screws and Washers.
7
1
3
Item Description
1 Sump Support Assembly
2 Trough end of Sump
3
4 Edge of Framed Opening
5 Bottom Stringer Chalk Line
6 1/4 x 1-1/2" Lag Screw
7 1/4" x 1" Washer
8 Lower 2 x 6 Sump Support

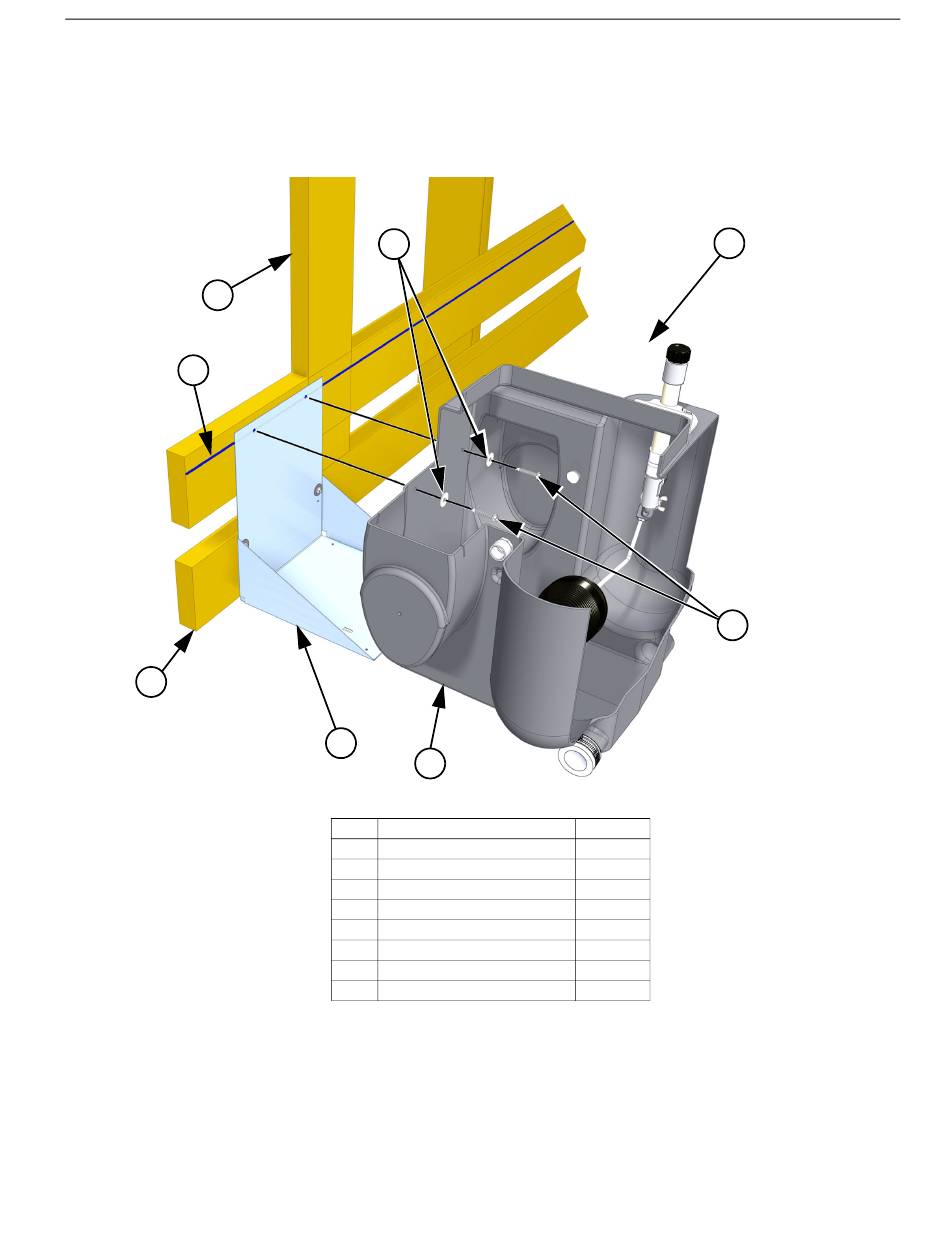

Figure 8.Attaching the Sump to the Bottom Stringer
Part No.
Sump
41561
2955-52
2
6
13
