Trough Installation Continued....

Form the Trough into a "U" shape as shown in Figure 10 and fasten the Trough to
the Trough Support using the 1/4" Drive Rivets. Insert the 1/4" Drive Rivet through
the hole in the Trough and the Trough Support. Use a hammer to hit the 1/4" Drive
Rivet head to lock it in place. Repeat the process for each Trough Support.
Wipe the inside of the Trough at each end to remove debris that may prevent sealing.
5
Mv1669-020 04/01

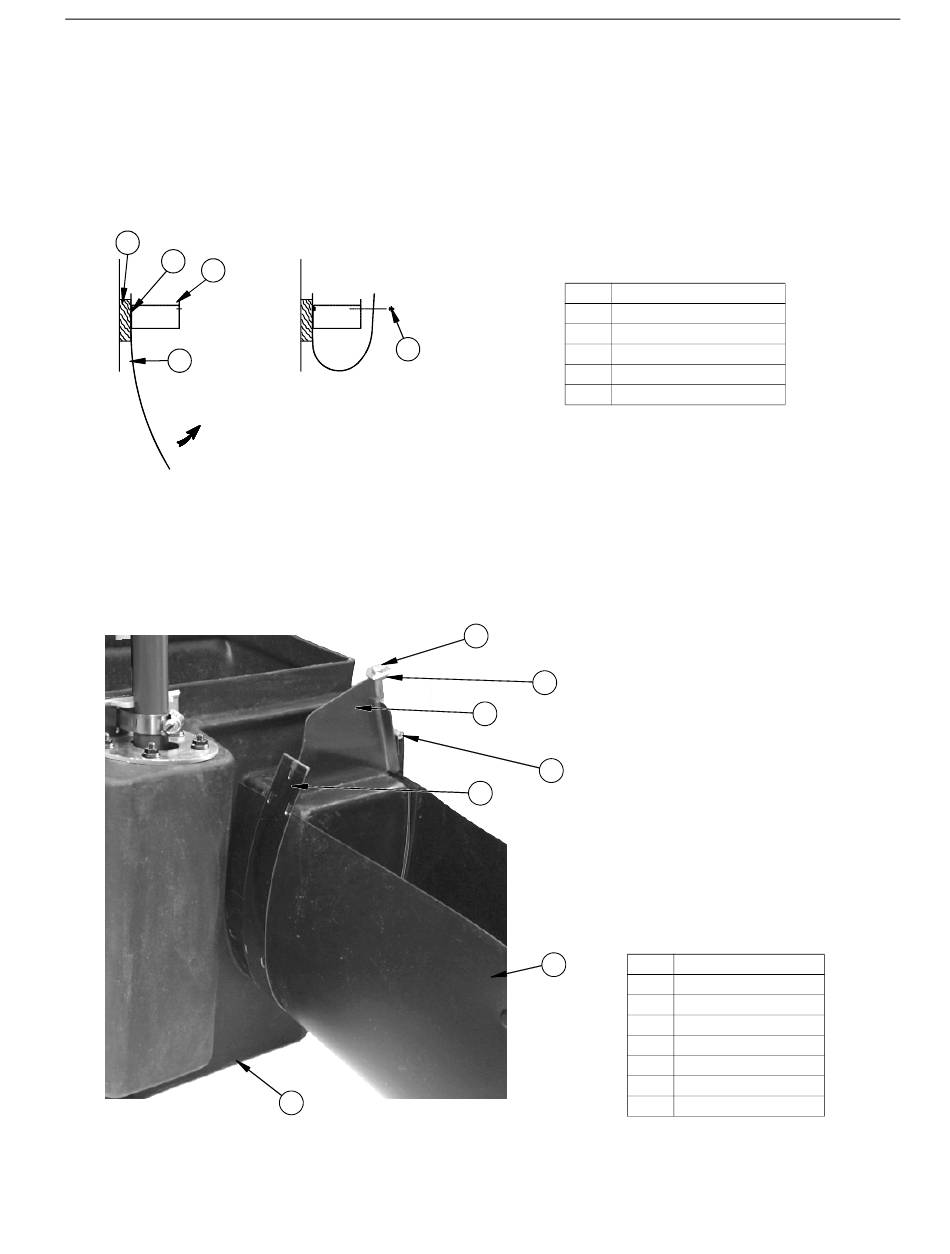

Figure 10.Forming the Trough

Attaching the Trough to the Sump

At the Sump end hook the free end of the Clamp Strap to the Sump End Insert and
tighten the 1/4" clamp bolt to seal the joint between the Trough and the Sump.
1
Mv1644-036 03/02
Figure 11.Sump End Insert Assembly
Item
Description
1
Bottom Stringer
2
1/4 x 1-1/2" Lag Screw
3
Trough Support
4
Trough Material
5
1/4" Drive Rivet
2
6
5
7
4
3
Item
1
2
3
4
5
6
7
Description
Sump
5/16" Clamp Bolt
Trough
Clamp Strap
Sump End Insert
Insert Washer
Clamp Nut
