Trough End Insert Installation - Chore-Time Turbo-Cool Installation & Operator's Instruction Manual

6" Recirculating Evaporative CoolingEvaporating Cooling System Installation
3
11
9
10
8
4
MV1669U
For future reference, to remove
the Pad Retainers, grasp and
twist the Pad Retainers as shown
in Figure 20.

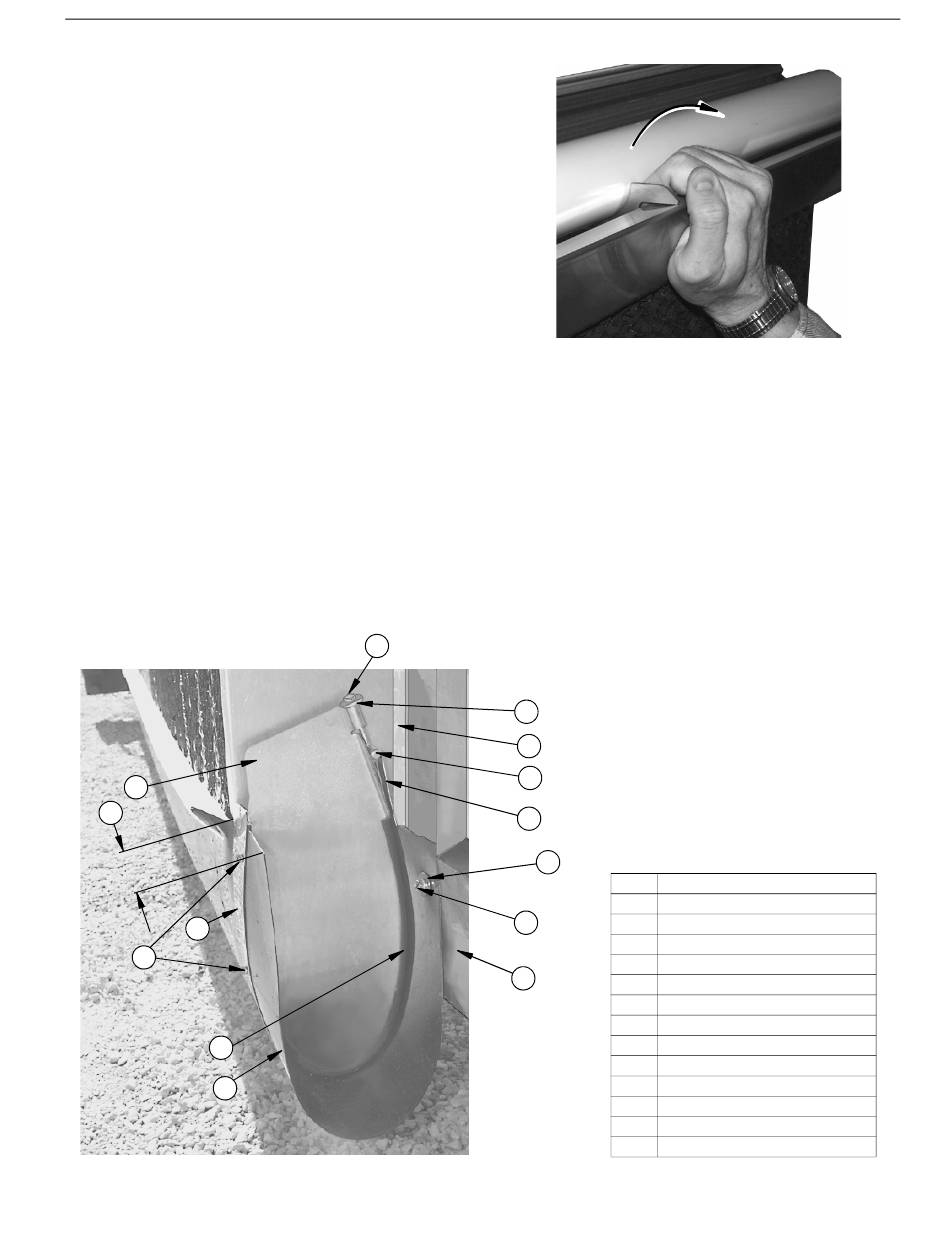

Trough End Insert Installation

On the Trough end opposite the Sump, cut off the Trough leaving 4"- 6" of Trough
extending beyond the End Panel. Assemble the Trough End Insert assembly as
shown. Be sure the Insert is centered on the Clamp Strap before tightening the Clamp
Bolt. Install two #10 x 1/2" Screws through the Clamp Strap into the Trough. Be sure
the Screws are on the exterior side of the Trough End Insert. Screw the Trough to the
2 x 6 Bottom Stringer using a 1/4"x1-1/2" Lag Screw and a 1/4"x1" Washer. (Items
5 & 6)
1
Mv1644-037 03/01
Figure 21.Trough End Insert Installation
Figure 20.Removing the Pad Retainer
13
2
12
9
5
Item
1 5/16" x 4-1/2" Clamp Bolt
6
2
3
4
7
5
6 1/4" x 1-1/2" Lag Screw
7
8 1/8" Rubber Edge Trim
9
10
11 4"-6" Trough beyond End Panel
12 5/16-18 x 1.5" Clamp Nut
13
Mv1669-016 04/01
Description
Lower End Panel
Trough End Insert
Trough
1/4" x 1" Washer
2 x 6 Bottom Stringer
Clamp Strap
#10 x 1/2" Screws
Insert Washer
