46725 Center Panel Kit (To Install In Center Of A System) - Chore-Time Turbo-Cool Installation & Operator's Instruction Manual

6" Recirculating Evaporative CoolingParts Lists and Kits
13
5
6
10
7
14
15
16
Mv1669-037 03/01
Item Description
1 RH Lower End Panel
2 LH Lower End Panel
3 RH Upper End Panel
4 LH Upper End Panel
5 Pipe Gasket
6 2x2x1.5 PVC Tee
7 1.5 PVC Ball Valve
8 2" x 2' Foam Tape
9 Trough Insert
10 1/8 Round Rubber Trim
MV1669U

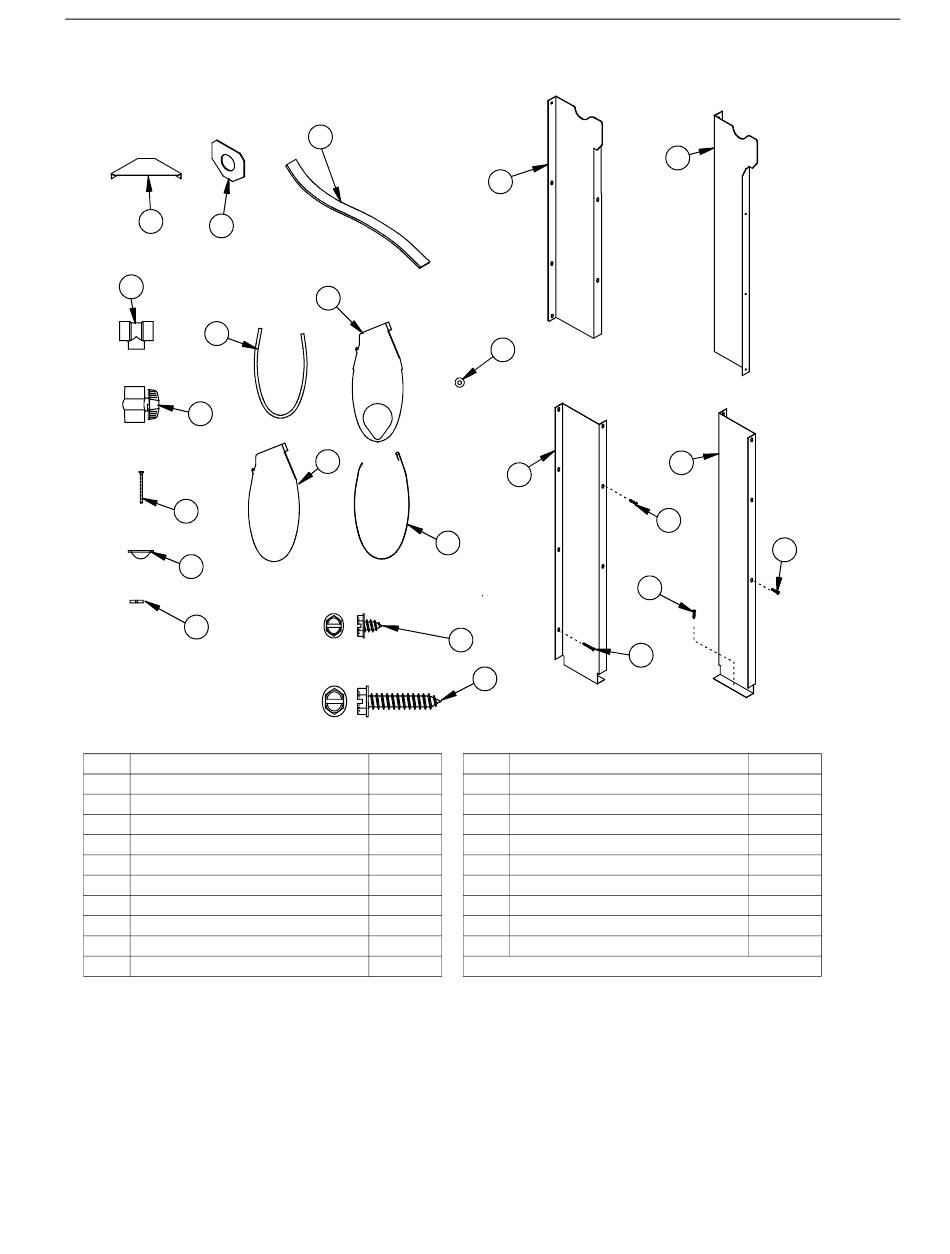

46725 Center Panel Kit (to install in center of a system)

8
11
9
12
19 *
Part No.
46555-1
46555-2
46556-1
46556-2
46585
41427
44039
41708-2
46309
46310-1
4
18
2
19
17
*
17
Item Description
11 Sump Insert
12 Clamp Strap
13 End Panel Support
14 5/16" x 4-1/2" Clamp Bolt
15 Insert Washer
16 5/16-18 x 1.5" Clamp Nut
17 1/4 x 1-1/2 Lag Screw
18 1 x .275 SS Washer
19 #10-16 x .5 HH SS Screw
*Not exact size; shown for comparison purposes only
3
1
19
19
Part No.
46033
46100
44391
52607
52609
52606
41561
2955-52
38613
33
