Sump Components Installation - Chore-Time Turbo-Cool Installation & Operator's Instruction Manual

6" Recirculating Evaporative CoolingEvaporating Cooling System Installation
Sump in Center
Sump in Center
49046-4,-6
Sump Kits 49046, or 49046-3,-5
Item Description
1 1-1/2 x 2 x 2'' PVC Tee
2 Adapter, 2" PVC
3 Plug 2" PVC Pipe MPT
4 1-1/2" Union
5* Water Supply Inlet Hose
6 1-1/2'' PVC Pipe
7 1-1/2" FNPT Strainer Assembly (Sump Kit 49046)
1-1/2" Y Strainer (Sump Kits 49046-3, and 49046-4)
8 1-1/2'' Ball Valve
9 1-1/2'' PVC Adapter
*Not included in 49046-5 or 49046-6 Sump Kits
MV1669U

Sump Components Installation

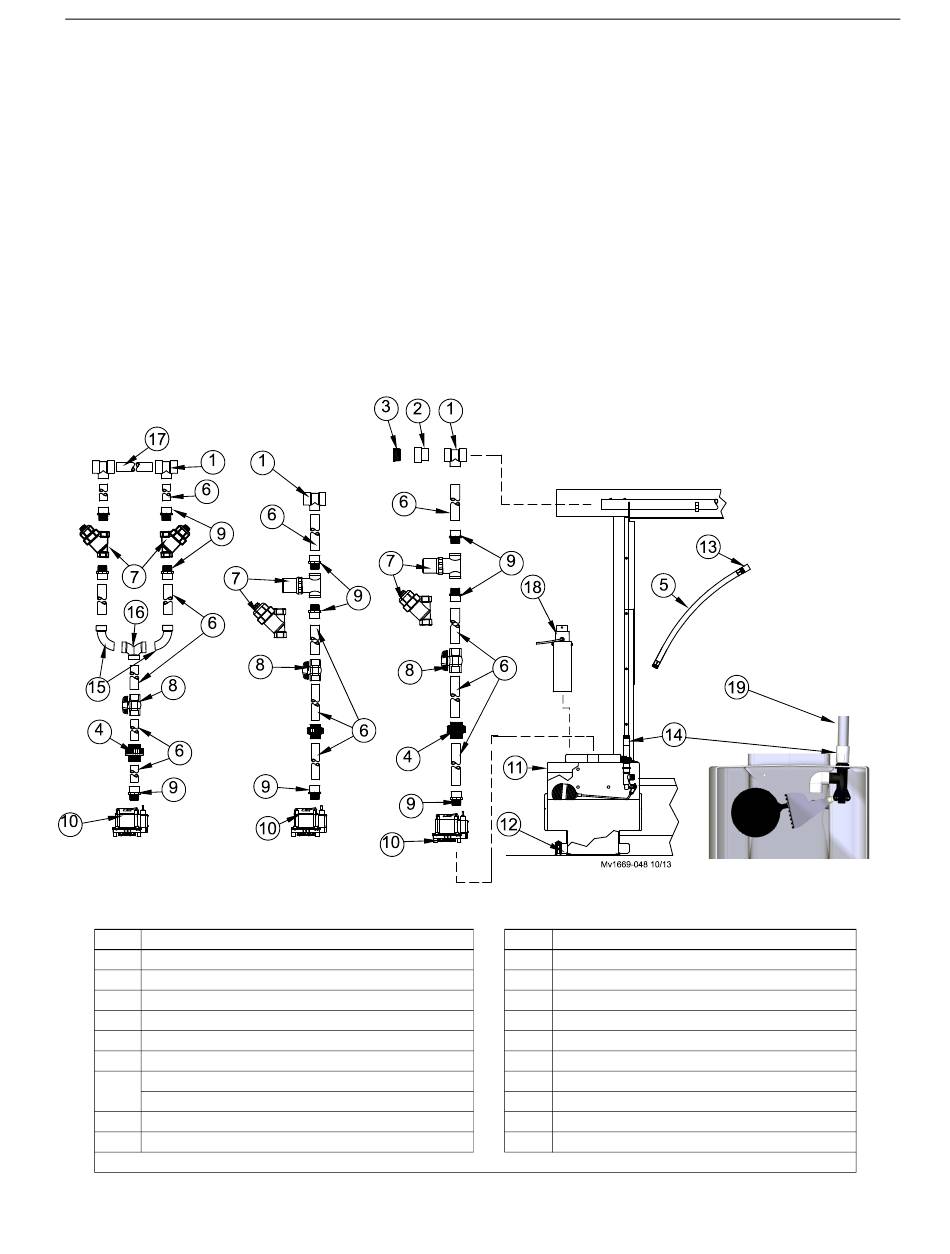

Assemble the Sump Components as shown in Figure 24, beginning at the Pump. The
lengths of 1-1/2'' PVC Pipe Item 6 will vary depending on desired Valve height, Pad
height, etc.
Use teflon tape on threads as required. Use PVC glue on slip connections.
Attach an electrical plug (if not supplied) to the Sump Pump electrical cord.
Flush all dirt from the water supply lines. Install the Garden Hose to the water supply
and connect to the inlet on the Sump.
Install Water Level Safety Switch (Item 18) per Instruction MV1679 that comes with
the Switch.
Sump on End
49046, or 49046-3,-5
Sump Kits
Sump Kits
Figure 24.Orientating the Distribution Pipe
*
Item Description
10 Sump Pump
11 Sump
12 1-1/2'' Rubber Pipe Cap
13* Garden Hose to 3/4" Pipe Adapter
14 Sump Water Inlet
15 Elbow, 1-1/2 Long Sweep 1/4 bend
16 PVC Y, 1.5 Double 1/4 Bend
17 2" PVC Pipe x 8"
18 Water Level Safety Switch
19 1" PVC Pipe
*
49046-5,-6
25
