Sump End Clamp Assembly

Place the 2" x 24" self adhesive tape around the Sump End and assemble the Clamp
with the Insert as shown in Figure 6. Do not tighten down at this time. Trough will
be inserted in a later step.
1

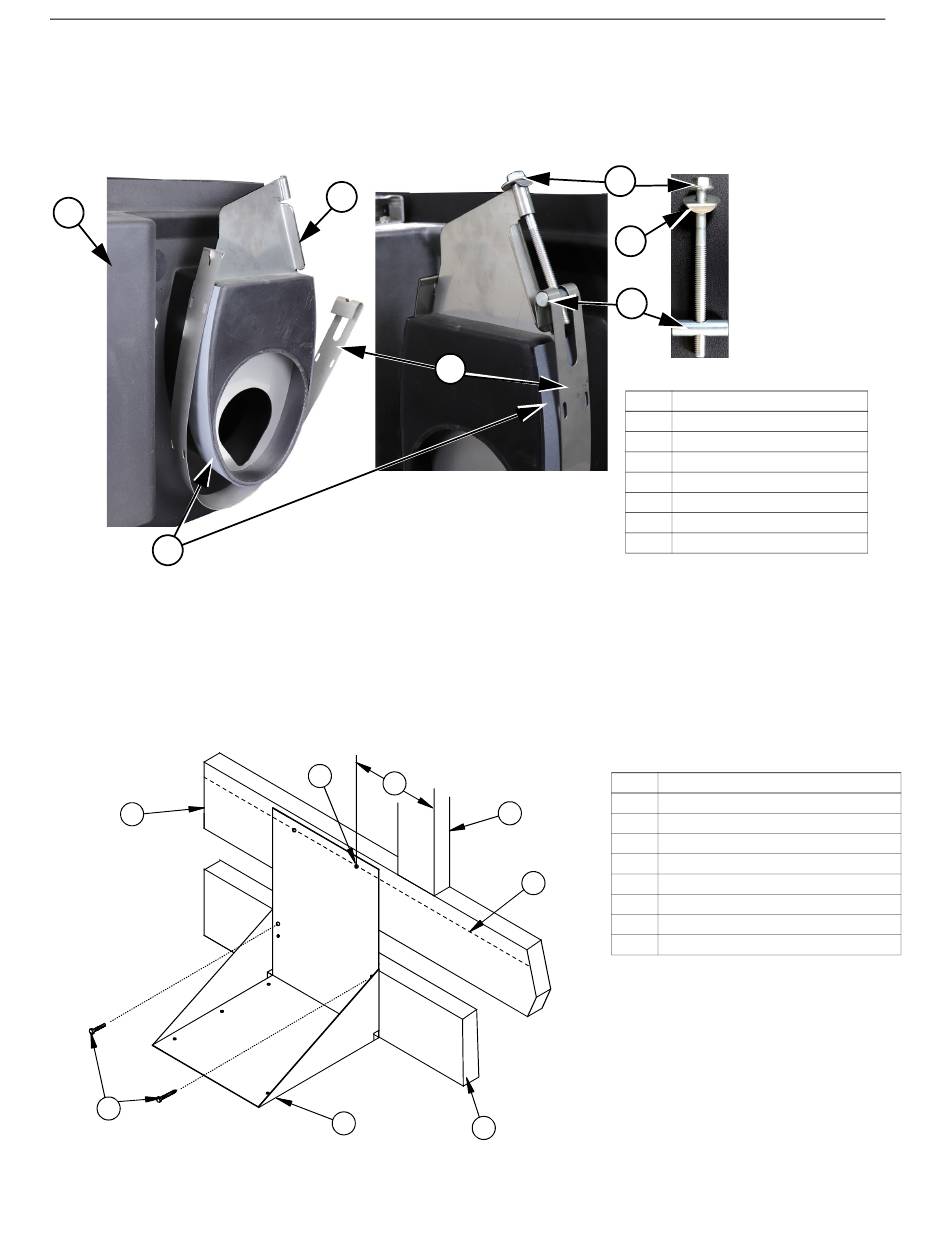

Figure 6.Sump End Clamp Assembly

Sump Support installation

Align the top holes in the Sump Support Assembly with the Chalk-Line on the
Bottom Stringer, with the first top hole 6" [152 mm] away from the inside edge of the
framed opening (See Figure 7, Items 2, 6, &7). Use two 1/4 x 1-1/2" Lag Screws to
fasten the Sump Support Assembly to the Lower 2 x 6 Sump Support as shown. The
top holes will be used later to attach the Sump to the Bottom Stringer.
6
7
Mv1669-036 05/01
1
Figure 7.Sump Support Installation
4
7
Item
2
4
8
7
5
Item Description
1 Sump End Insert
2 Sump
3 Self Adhesive foam tape
4 5/16-18" x 4-1/2" Clamp Bolt
5 5/16 -18 x 1-1/2" Clamp Nut
6 Clamp Strap
7 Insert Washer
Description
1 Sump Support Assembly
2 Inside Edge of Framed Opening
3 Bottom Stringer
4 Chalk-Line
5 1/4 x 1-1/2" Lag Screws
6 1/4" Hole nearest Framed Opening
7 6" [152mm]
8 Lower 2 x 6 Sump Support
