For the first configuration, create an MA after the MD. Select "Configure MA"
to display the OAM CFM Maintenance Association Configuration screen as
shown below:

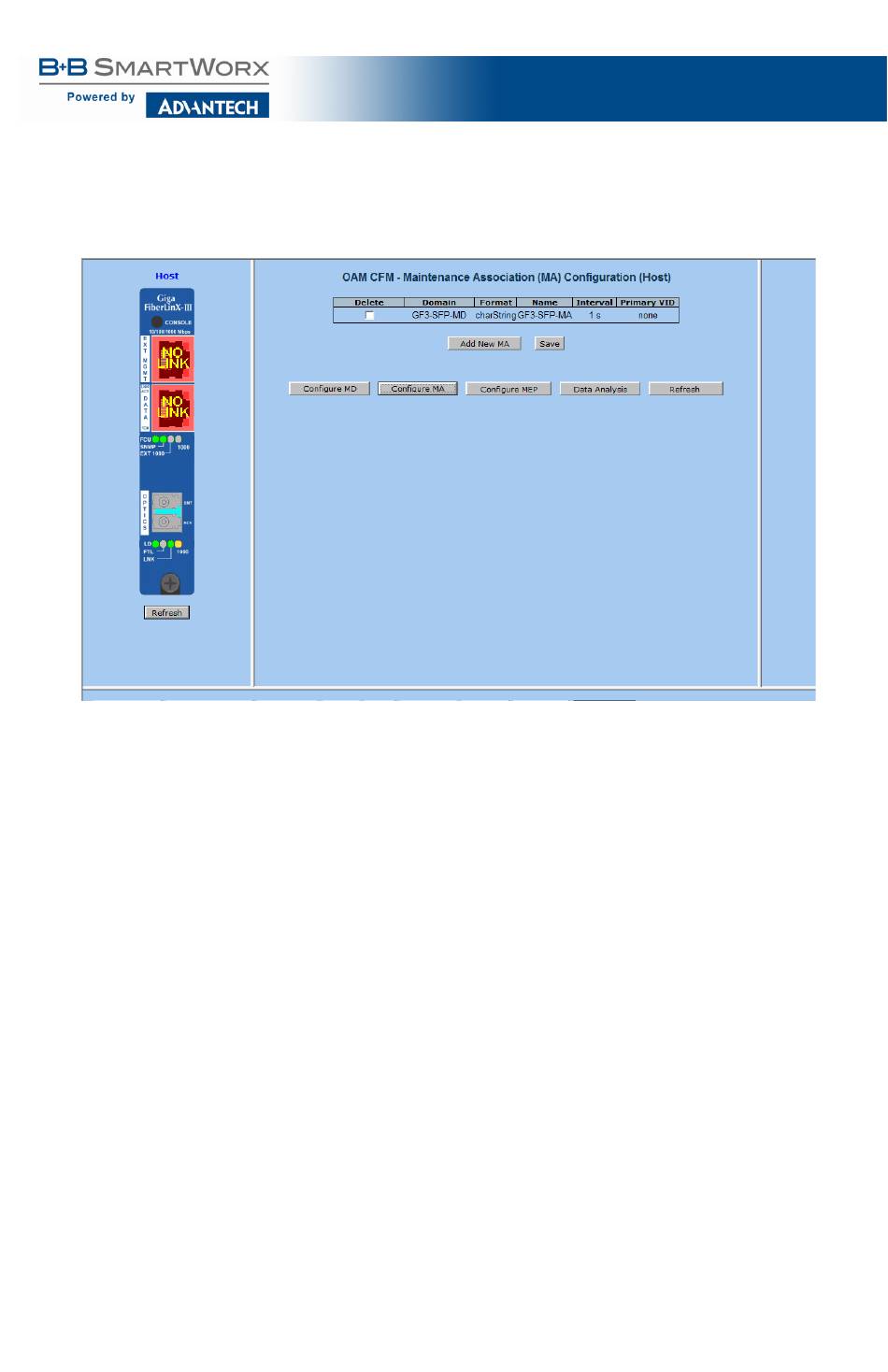

OAM CFM: Maintenance Association Configuration screen.
NOTE: iView
will automatically display this page if there is no MD yet defined when the user attempts to
2
access any other menu control.
Select the Domain and Format, and enter the MA name in the Name field. Use
Interval to select the interval for continuity check messaging, and choose
Primary VID, if applicable. To cancel the MA without saving, select Delete. To
store the MA, select Save and the screen is refreshed.
