Troubleshooting
NOTE: Models BB-485USBTB-2W-A and BB-485USBTB2WLS-A
cannot be used as RS-422 devices or as 4-wire RS-485.
One USB port is required for each installed
device. The USB port can be native to the PC or
it can be a USB port on a USB hub that is
connected to a PC.
The device works with USB 1.1 or 2.0 ports. But,
it has a maximum USB data rate of 12 Mbps.
1. To verify the installation, you may open the
Windows Device Manager.
2. Scroll down to Ports.
3. Expand the flyout window.
4. You should see the new ports. If there
are no exclamation points or other trouble
indicators, the ports are installed correctly
and ready for use.
Serialized Model/s
Every unit is assigned a unique COM port and
the install process is required for every unit.
Ideal application: fixed locations.
-LS- (Locked Serial Number) Model/s
Same type model numbers share the same
COM port and require only one install process
for each model type. Ideal for field service
applications. (Locked Serial Number supported
versions include "-LS-" in the model number).
Documentation Number: 20BB710-11818-00_BB-485USBTB-xW-x_2618qsg

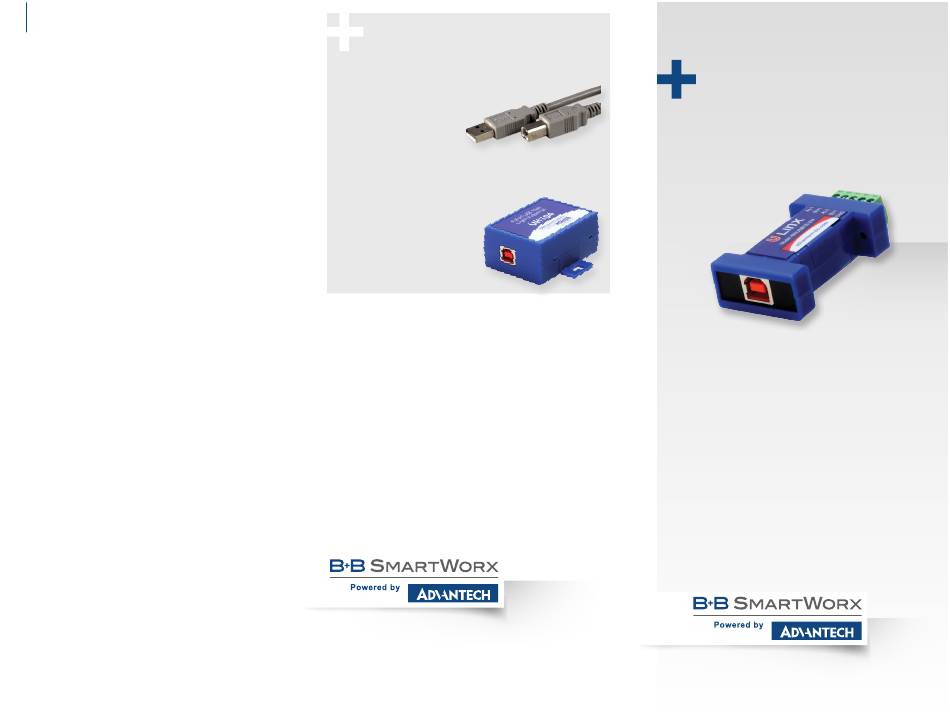

Recommended Accessories
USB Cable – 1.8 m (6 ft)
Model# BB-USBAMBM-6F
4-Port Industrial USB Hub
Model# BB-UH104
1 (888) 948-2248 | Europe: +353 91 792444
advantech-bb.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: (815) 433-5100 | Fax: (815) 433-5109
www.advantech-bb.com | E-mail: support@advantech-bb.com
QUICK START
GUIDE
BB-485USBTB-2W-A, BB-485USBTB-4W-A,
BB-485USBTB2WLS-A or BB-485USBTB4WLS-A

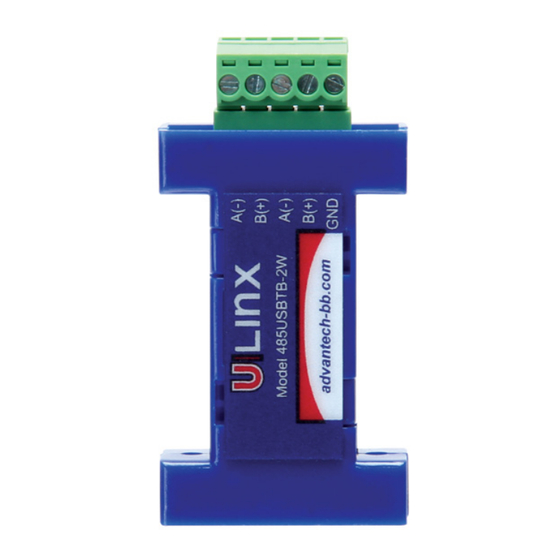

USB to RS-485 Miniature Converter
Before you begin, make sure
you have the following:
+ USB to RS-485 Mini Converter:
Model BB-485USBTB-2W-A, BB-485USBTB-4W-A,
BB-485USBTB2WLS-A or BB-485USBTB4WLS-A
+ USB Cable, 1 m (3 ft), included
www.advantech-bb.com
Fast and easy on the web:
