Converter Formats
Standard vs Locked Serial Number
The converter is available in two formats: "Standard" and
"Locked Serial Number." The version you select depends
on your application.
Standard converter Model BB-USO9ML2-A has a unique
serial number. Drivers must be installed for the converter
and a unique COM port will be assigned.
Typical applications: fixed location.
All Locked Serial Number Models BB-USO9ML2-LS-A
share the same serial number and will install using the
same COM port. The driver only needs to be installed
once; subsequent BB-USO9ML2-LS-A converters install
using the same COM port.
Typical applications: field service.
Documentation Number:
20BB-710-11822-00_r2_USO9ML2-A_USO9ML2-LS-A_2219qsg

Recommended Accessories

Serial Cable, 1.8m (6 ft)
DB9 male - DB9 female
Model# BB-9PAMF6
USB Cable, 1.8m (6 ft)
Type A male - Type B male
Model# BB-USBAMBM-6F
RS-232 Line Tester
Model# BB-9PMTT
www.advantech.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: (815) 433-5100 | Fax: (815) 433-5109
www.advantech.com | E-mail: support@advantech-bb.com
QUICK START
GUIDE
Models BB-USO9ML2-A, BB-USO9ML2-LS-A

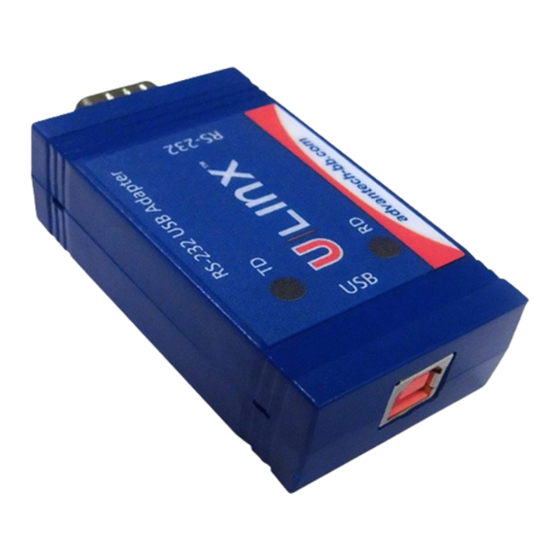

Isolated USB to RS-232 Converter
Before you begin, be
sure you have the following:
USB/RS-232 Converter
+
USB Cable, 0.9m (3ft), included
+
www.advantech.com
Fast and easy on the web:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB-USO9ML2-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech BB-USO9ML2-A

  • Page 1 DB9 male - DB9 female on your application. Model# BB-9PAMF6 GUIDE Standard converter Model BB-USO9ML2-A has a unique serial number. Drivers must be installed for the converter and a unique COM port will be assigned. USB Cable, 1.8m (6 ft) Typical applications: fixed location.
  • Page 2 A quick and easy way to determine the DTE/DCE port connection, you will need a crossover cable. type is to use a RS-232 line tester such as Advantech B+B Model# BB-9PMTT. The tester can show the signal When one device is male and one device is female, use a state of any active RS-232 data lines using LEDs.
