Advantech B+B SmartWorx IMcV-Giga-FiberLinX-III User Manual page 53

iMcV-Giga-FiberLinX-III
OAM CFM
Select OAM CFM to display the following screen and perform administrative
control for Maintenance Domains (MDs), Maintenance Assocations (MAs) and
Maintenance Association End Points (MEPs). The page contains a list of the
local MEPs and provides menu controls to access the administrative functions
associated with Create, Delete, and List MD, MA, and MEP information. An
example of a default OAM CFM Configuration page is shown below:

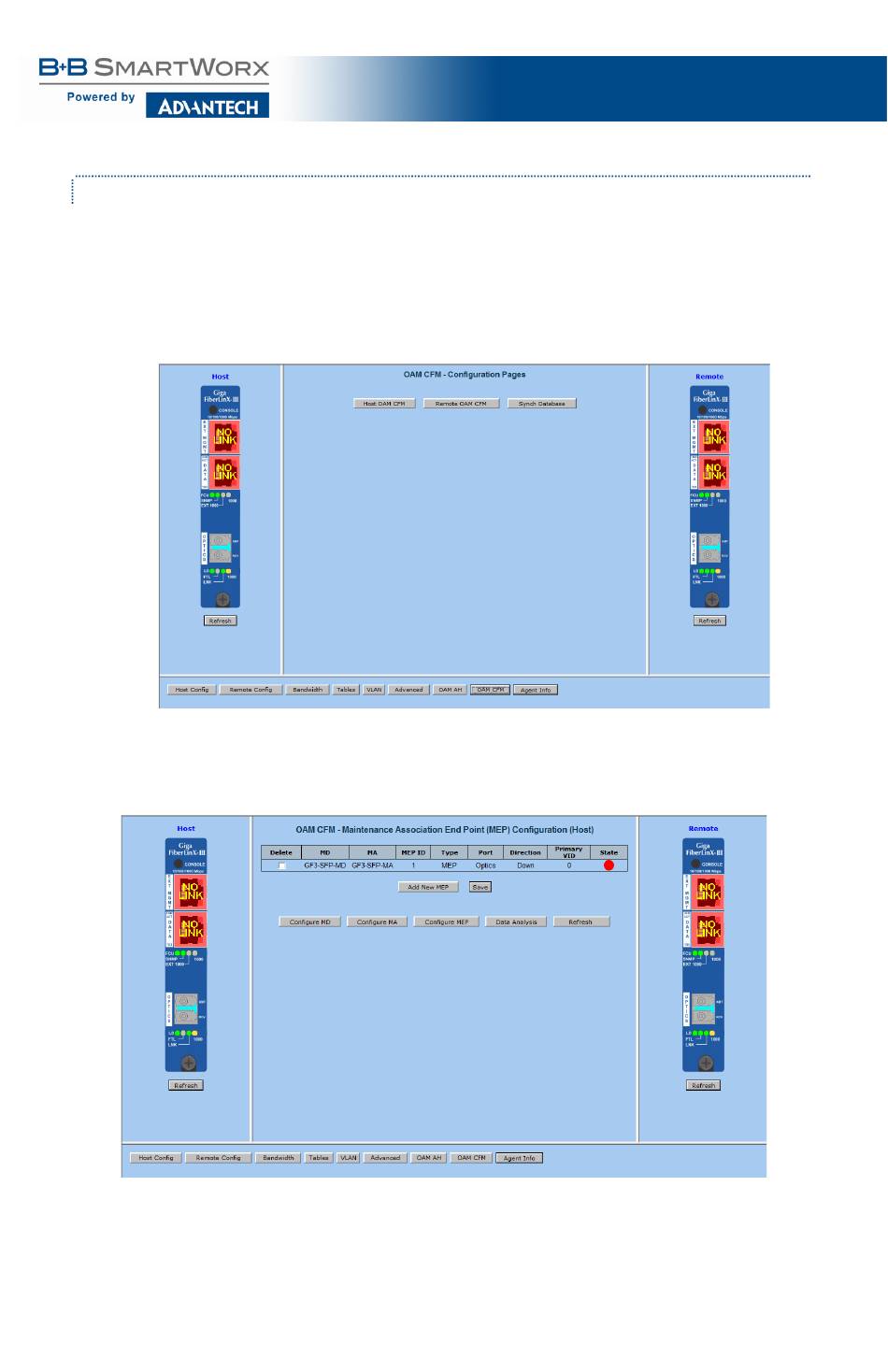

OAM CFM: Configuration screen.
The OAM CFM Configuration page defaults to the "Configure MEP" selections:
OAM CFM: MEP Screen.
53
