- Page 1 PoE & PoE+ Giga-McBasic USER MANUAL...
- Page 2 PoE & PoE+ Giga-McBasic LFPT Advantech B+B SmartWorx - Americas 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 (815) 433-5105 Advantech B+B SmartWorx - Europe Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Fax +353 91-792445 www.advantech-bb.com...
-
Page 3: Table Of Contents
PoE & PoE+ Giga-McBasic LFPT CONTENTS Introduction - PoE Giga-McBasic LFPT ............4 About PoE Giga-McBasic LFPT..................4 Installation ........................5 DIP Switch Configuration ....................5 PoE Reset DSW ......................5 LFPT DIP Switches ......................6 LED Operation ......................6 Troubleshooting ...................... -
Page 4: Introduction - Poe Giga-Mcbasic Lfpt

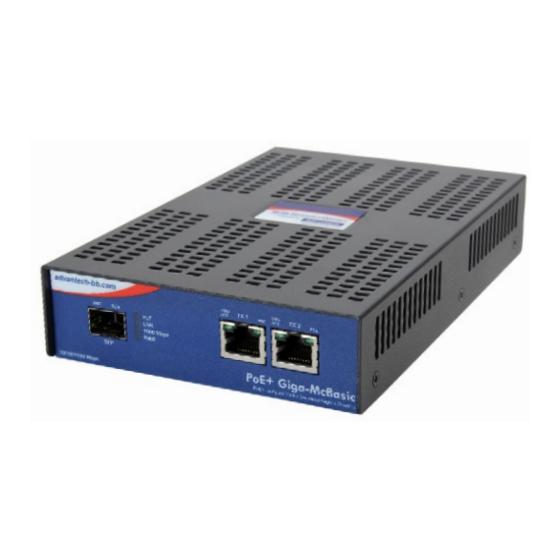

PoE & PoE+ Giga-McBasic LFPT INTRODUCTION - POE GIGA-MCBASIC LFPT ABOUT POE GIGA-MCBASIC LFPT NOTE: Unless otherwise noted in this manual, any reference is applicable for both the 1x9 and SFP version of the PoE Giga-McBasic LFPT. The PoE Giga-McBasic is a solution for private network applications that require Power-over-Ethernet (PoE) (IEEE802.3af) for installations inside buildings where PoE is required to power an Ethernet device. -
Page 5: Installation
PoE & PoE+ Giga-McBasic LFPT INSTALLATION PoE Giga-McBasic LFPT installs virtually anywhere: standalone, table-top device, with rackmount ears, or using a wallmount bracket. The rackmount ears and wallmount bracket are optional accessories available from B+B SmartWorx. Several models of the PoE Giga-McBasic LFPT support single-strand fiber for operation. Since single-strand fiber products use optics that transmit and receive on two different wavelengths, single -strand fiber products must be deployed in pairs. -
Page 6: Lfpt Dip Switches
PoE & PoE+ Giga-McBasic LFPT LFPT DIP SW ITCHES The DIP Switches for LFPT allows a LOS fault to be passed through the unit. When enabled, if link is lost on the FX port, the transmit on the TX port is disabled. - Page 7 PoE & PoE+ Giga-McBasic LFPT PoE Giga-McBasic LFPT 1x9 1x9 LED Functions Glows red when a fault has been detected on the unit. Glows green with a valid link. 1000 Mbps Glows green when is running at 1000Mbps. Glows green when unit is powered. RJ-45 LED Functions Glows green with a valid link.
-
Page 8: Troubleshooting
PoE & PoE+ Giga-McBasic LFPT TROUBLESHOOTING • PWR LED glows green when the unit is powered. If this LED is not lit, contact B+B SmartWorx Technical Support. • Blinks green during fault conditions: 1 Hz flashes to indicate an overload or short;... -
Page 9: Specifications
PoE & PoE+ Giga-McBasic LFPT SPECIFICATIONS Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • Auto Cross • Flow Control • 10240 MTU • Full Line-Rate Forwarding Input Specifications 100 to 240 ±10% VAC Input, 50/60 Hz, 0.5A to 0.2A Operating Temperature 0 to +50 °C (+32 to +122 °F) Storage Temperature... -
Page 10: About Poe+ Giga-Mcbasic Lfpt
PoE & PoE+ Giga-McBasic LFPT ABOUT POE+ GIGA-MCBASIC LFPT NOTE: Unless otherwise noted in this manual, any reference is applicable for both the 1x9 and SFP version of the PoE+ Giga-McBasic LFPT. PoE+ Giga-McBasic LFPT is a solution for private network applications that require Power-over-Ethernet (PoE) (IEEE802.3af) for locations inside buildings where PoE is required to power an Ethernet device. -
Page 11: Installation
PoE & PoE+ Giga-McBasic LFPT TYPICAL APPLICATION INSTALLATION PoE+ Giga-McBasic LFPT installs virtually anywhere: standalone, table-top device, with rackmount ears or using a wallmount bracket. The rackmount ears and wallmount bracket are optional accessories available from B+B SmartWorx. Several models of the PoE+ Giga-McBasic LFPT support single-strand fiber for operation. -
Page 12: Dip Switch Configuration
PoE & PoE+ Giga-McBasic LFPT DIP SW ITCH CONFIGURATION Name Definition Default DIP Switch Switch Setting ON forces Ports 1 & 2 PSE/PoE to PoE Reset OFF on LOS of Fiber input. ON enables LFPT for Port 1 and LFPT Port 1 FX Port. -
Page 13: Led Operation
PoE & PoE+ Giga-McBasic LFPT LED OPERATION The PoE+ Giga-McBasic LFPT includes LEDs for three ports, as shown below: PoE+ Giga-McBasic LFPT SFP SFP LED Functions Glows red when a fault has been detected on the unit. Glows green with a valid link. 1000 Mbps Glows green when SFP is running at 1000Mbps. - Page 14 PoE & PoE+ Giga-McBasic LFPT PoE+ Giga-McBasic LFPT 1x9 SFP LED Functions Glows red when a fault has been detected on the unit. Glows green with a valid link. 1000 Mbps Glows green when SFP is running at 1000Mbps. Glows green when unit is powered. RJ-45 LED Functions Glows green with a valid link.
-
Page 15: Troubleshooting
PoE & PoE+ Giga-McBasic LFPT TROUBLESHOOTING If the PoE+ Giga-McBasic LFPT is not responding to the power provided to it, the following conditions may be responsible: • Blinks green during fault conditions: 1 Hz flashes indicating an overload or short; 4 Hz flashes indicating out-of-range voltage or over-temperature. The PSE LED should maintain solid green to indicate consistent power. -
Page 16: Specifications
PoE & PoE+ Giga-McBasic LFPT SPECIFICATIONS Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • Auto Cross • Flow Control • 10240 MTU • Full Line-Rate Forwarding Input Specifications 100 to 240 ± 10% VAC Input, 50/60 Hz, 1.6A to 0.7A Operating Temperature 0 to +40 °C (+32 to +104 °F) Storage Temperature... -
Page 17: B+B Smartworx Technical Support
PoE & PoE+ Giga-McBasic LFPT B+B SM ARTWORX TECHNICAL SUPPORT USA/Canada: 1 (800) 346-3119 (Ottawa IL USA) Europe: +353 91 792444 (Ireland / Europe) Email: support@advantech-bb.com Web: www.advantech-bb.com... -
Page 18: Statements, Precautions, Guidelines, Regulatory
PoE & PoE+ Giga-McBasic LFPT STATEMENTS, PRECAUTIONS, GUIDELINES, REGULATORY FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 19: Electrostatic Discharge (Esd) Precautions
PoE & PoE+ Giga-McBasic LFPT ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. Do not remove unit from its protective packaging until ready to install. -
Page 20: Regulatory, Standards, Compliances
© 2018 B+B SmartWorx – powered by Advantech. All rights reserved. The information in this document is subject to change without notice. B+B SmartWorx assumes no responsibility for any errors that may appear in this document.
