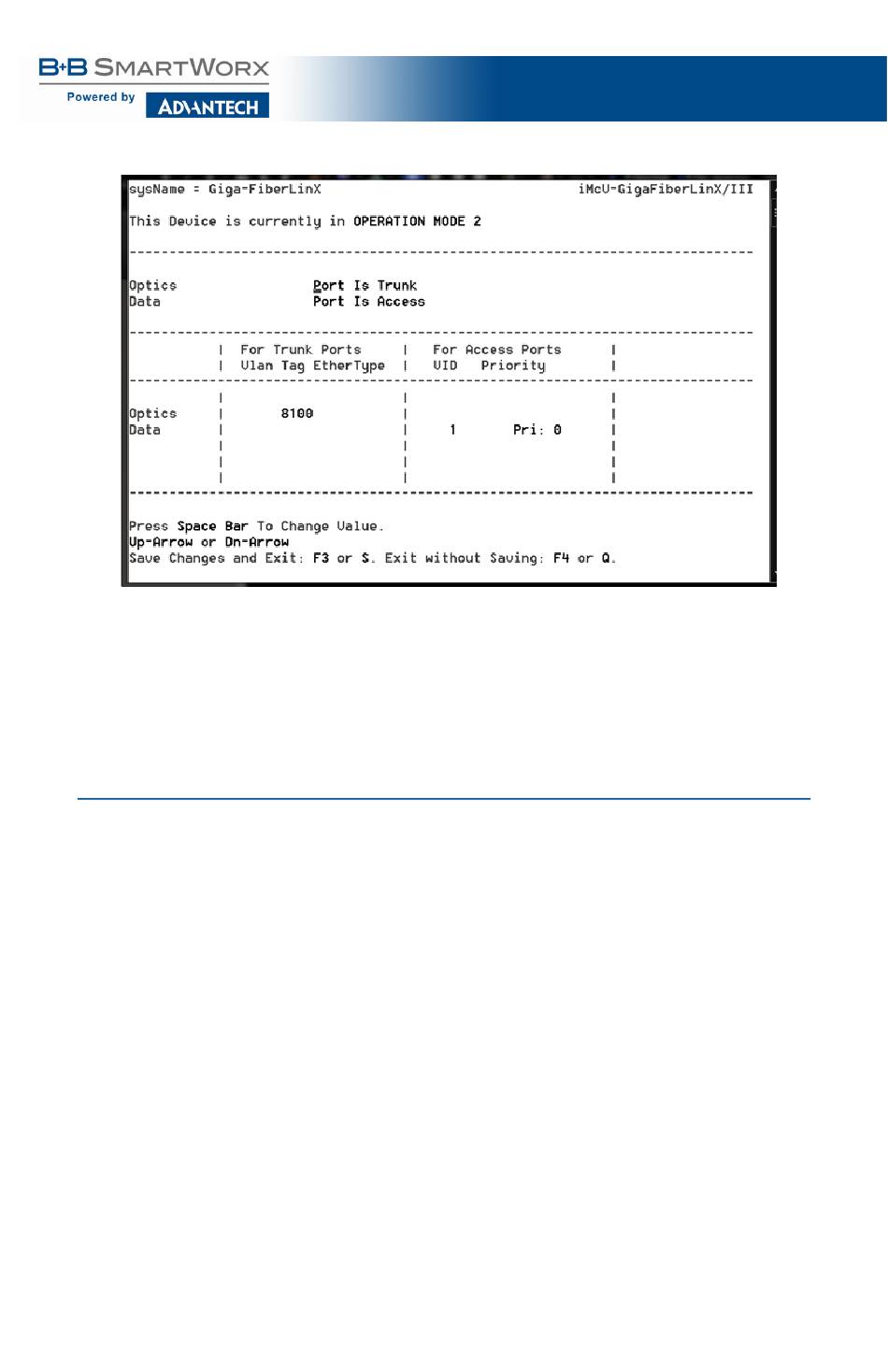

The Optics port and the Data port can be configured as an access port or a trunk
port. When configuring as a trunk port, an Ethertype can be user-defined (a trunk
port is also defined as a provider port, based on 802.1ad). If an Ethertype value
comes in a trunk port and is different than the user-defined Ethertype, it will be
treated as an unrecognized VLAN tagged frame. If configuring the port as an
access port, enter a VLAN ID between 1 and 4094.
OPERATION MODE 3 VLAN FILTER
In Operation Mode 3, VLAN filters can be configured to allow passing traffic with
up to 64 separate VLAN IDs between the Optics port and the Data port. Choose
whether you want to enter a tag or no tag for management traffic. Enter up to 64
VLAN IDs in the DATA VLANs filed. VLAN IDs may be between 1 and 4094. (If
entering the value of "0", it will disable that entry. The value of "0" is a default
setting.)
