TABLE OF CONTENTS TABLE OF CONTENTS ................3 FCC RADIO FREQUENCY INTERFERENCE STATEMENT ......4 WARRANTY ..................4 ABOUT THE MINIMC ................5 INSTALLING THE MINIMC ..............6 POWERING THE MINIMC ..............8 LED OPERATION .................8 LFPT....................9 SPECIFICATIONS ................10 B+B SMARTWORX TECHNICAL SUPPORT ........... 11 FIBER OPTIC CLEANING GUIDELINES ..........
FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

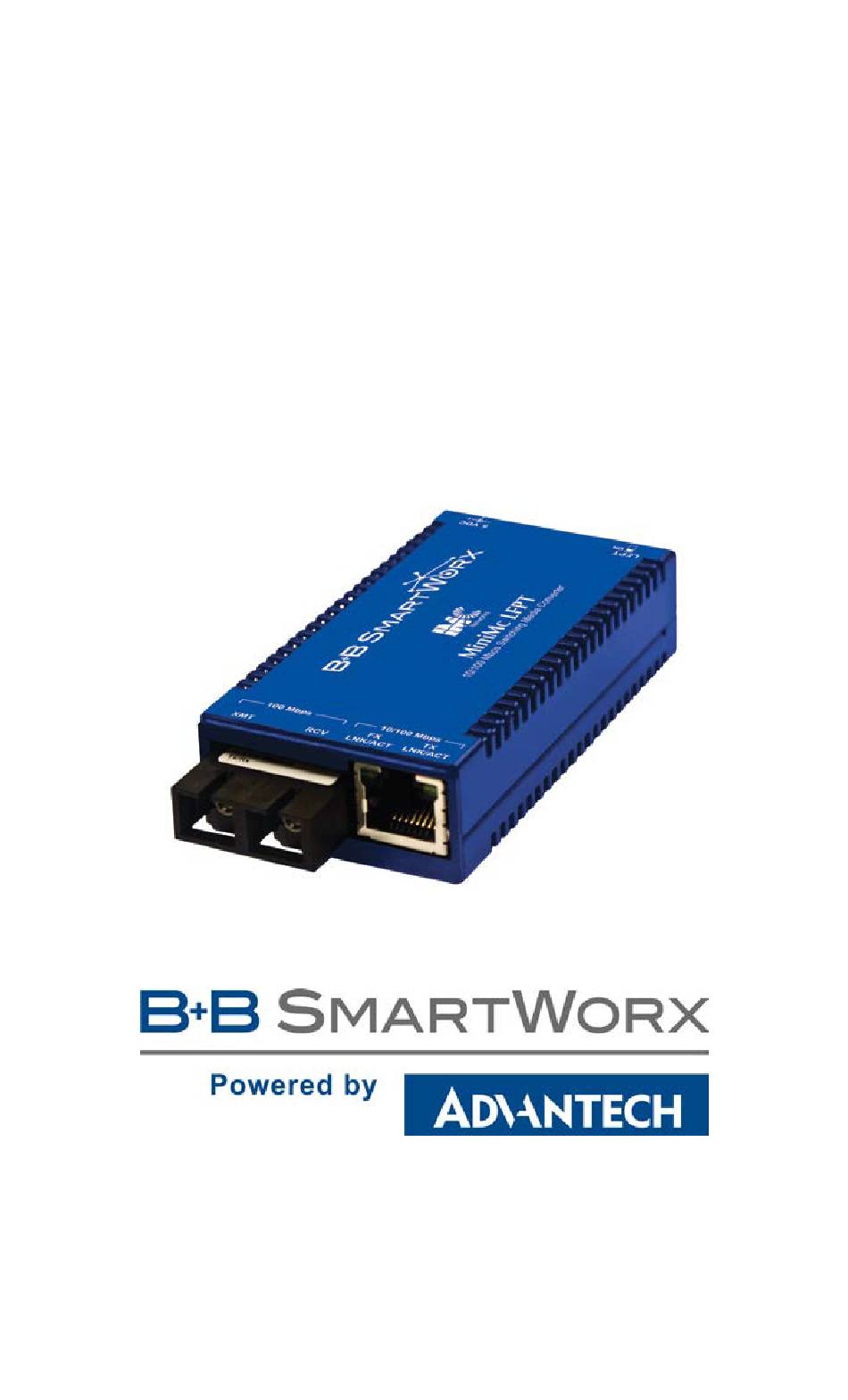

ABOUT THE MINIMC The MiniMc provides a single conversion between 10/100 Base-T twisted pair and 100 Base-SX/FX fiber. This device Auto Negotiates speed and duplex on the copper port and the fiber 100Mbps, FDX. There is a fixed fiber and an SFP version available; both support jumbo frames up to 1916 MTU.
INSTALLING THE MINIMC The MiniMc installs virtually anywhere as a standalone device in locations with extremely limited space. Installation options include: Velcro strips DIN rail mounting A wall mount bracket A PowerTray/18 for high density applications Hardware Mounting The IE-MiniMc can be mounted on a DIN rail or using wall mount brackets (shown below).
Page 7
DIN Rail Clips The MiniMc can be mounted with two DIN Rail clips, a hardware option available through B+B SmartWorx. The DIN Rail clips include screws, to allow the installation onto a DIN Rail. Install the screws into DIN Rail clips, which should be mounted perpendicular to the DIN Rail.
POWERING THE MINIMC The MiniMc includes multiple powering options: • A country-specific, high-reliability AC power adapter (included) • IE-PowerTray/18 for Rack Mounting • Single USB power cable LED OPERATION Each MiniMc includes two LEDs, located on the RJ-45 connector. LED functions are as follows: FX LNK/ACT Glows green when a link is established on the fiber...
LFPT The MiniMc model with LFPT includes a DIP Switch, located on the back of the unit. DIP Switch functions are as follows: Switch Up LFPT ON Switch Down LFPT OFF Link Fault Pass-Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote MiniMc, TX-FX/SFP modules.
SPECIFICATIONS Ethernet Connections • 10/100 BaseT • Auto Negotiation • AutoCross • Flow Control • 1916 MTU • Full Line-Rate Forwarding AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A max. Operating Temperature +14°F to +122°F (-10C° to +50°C) Storage Temperature -31°C to +167°...
FIBER OPTIC CLEANING GUIDELINES Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. 1. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;...
ELECTROSTATIC DISCHARGE PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or standalone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products 1. Do not remove unit from its protective packaging until ready to install.
SAFETY CERTIFICATIONS UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment.
