  • Page 1 Giga-MiniMc TX/FX, TX-SX Giga-MiniMc TX/SFP USER MANUAL...
  • Page 2 Advantech B+B SmartWorx - Americas 707 Dayton Road Ottawa, IL 61350 USA Phone 1 (815) 433-5100 Fax 1 (815) 433-5105 Advantech B+B SmartWorx - European Headquarters Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Fax +353 91-792445 www.advantech-bb.com...
  • Page 3: Table Of Contents

    Giga-MiniMc, SFP, TX-SX, TX-LX TABLE OF CONTENTS FCC Radio Frequency Interference Statement ........3 About This Manual ................. 3 About the Giga-MiniMc................4 Installing the Giga-MiniMc ..............4 Powering the Giga-MiniMc..............4 LED Operation..................5 Specifications ..................... 6 Fiber Optic Cleaning Guidelines ...............
  • Page 4: Fcc Radio Frequency Interference Statement

    Giga-MiniMc, SFP, TX-SX, TX-LX FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5: About The Giga-Minimc

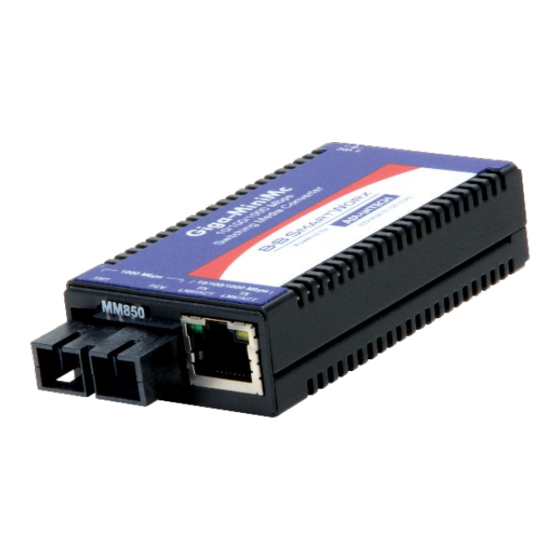

    Giga-MiniMc, SFP, TX-SX, TX-LX ABOUT THE GIG A-MINIMC The Giga-MiniMc is a 10/100/1000 auto-negotiating, switching miniature media converter. The fiber port available in one pair of SC fiber connectors and/or an SFP port which can support any fiber type; dual strand available in LC connectors, and single strand fiber SFPs available in SC connectors.
  • Page 6: Led Operation

    Giga-MiniMc, SFP, TX-SX, TX-LX LED OPERATION Each Giga-MiniMc includes two LEDs located on the RJ-45 connector: Giga-MiniMc, SC Giga-MiniMc, SFP TX FX LED functions are as follows (above illustrations are representative): Glows GREEN when a link is established on the fiber port; FX LNK/ACT blinks GREEN when activity is detected on the fiber port.
  • Page 7: Specifications

    Giga-MiniMc, SFP, TX-SX, TX-LX SPEFICATIONS Ethernet Connections 10/100/1000 BaseT Auto-Negotiation Auto-Cross Flow Control 1536 MTU for the Fixed Fiber versions 10240 MTU for the SFP version Full Line-Rate Forwarding Fiber Port - SFP or Fixed Fiber SFP port supports 100Mbps or 1000Mbps fiber SFPs Fixed Fiber port is specifically 1000Mbps AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A maximum...
  • Page 8: Fiber Optic Cleaning Guidelines

    Giga-MiniMc, SFP, TX-SX, TX-LX FIBER OPTIC CLEANING GUIDELINES Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust that can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. Use fiber patch cords (or connectors if you terminate your own fiber) only from a reputable supplier;...
  • Page 9: Safety Certifications

    Giga-MiniMc, SFP, TX-SX, TX-LX SAFETY CERTIFICATIONS UL/cUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. CE – Directives 2004/108/EC – Electromagnetic Compatibility Directive 2011/65/EU – Reduction of Hazardous Substances Directive (RoHS) 2006/95/EC – Low Voltage Directive CE – Standards EMC: EN 55022 +AC Class A –...
