iMcV-Giga-FiberLinX-III
OPERATIONAL MODE CONFIGURATION
There are three modes of operation that can be configured through the Serial/Telnet
session: Mode 1, supports a mixture of tagged and untagged traffic; Mode 2 Extra tagging;
and Mode 3, VLAN Filter.

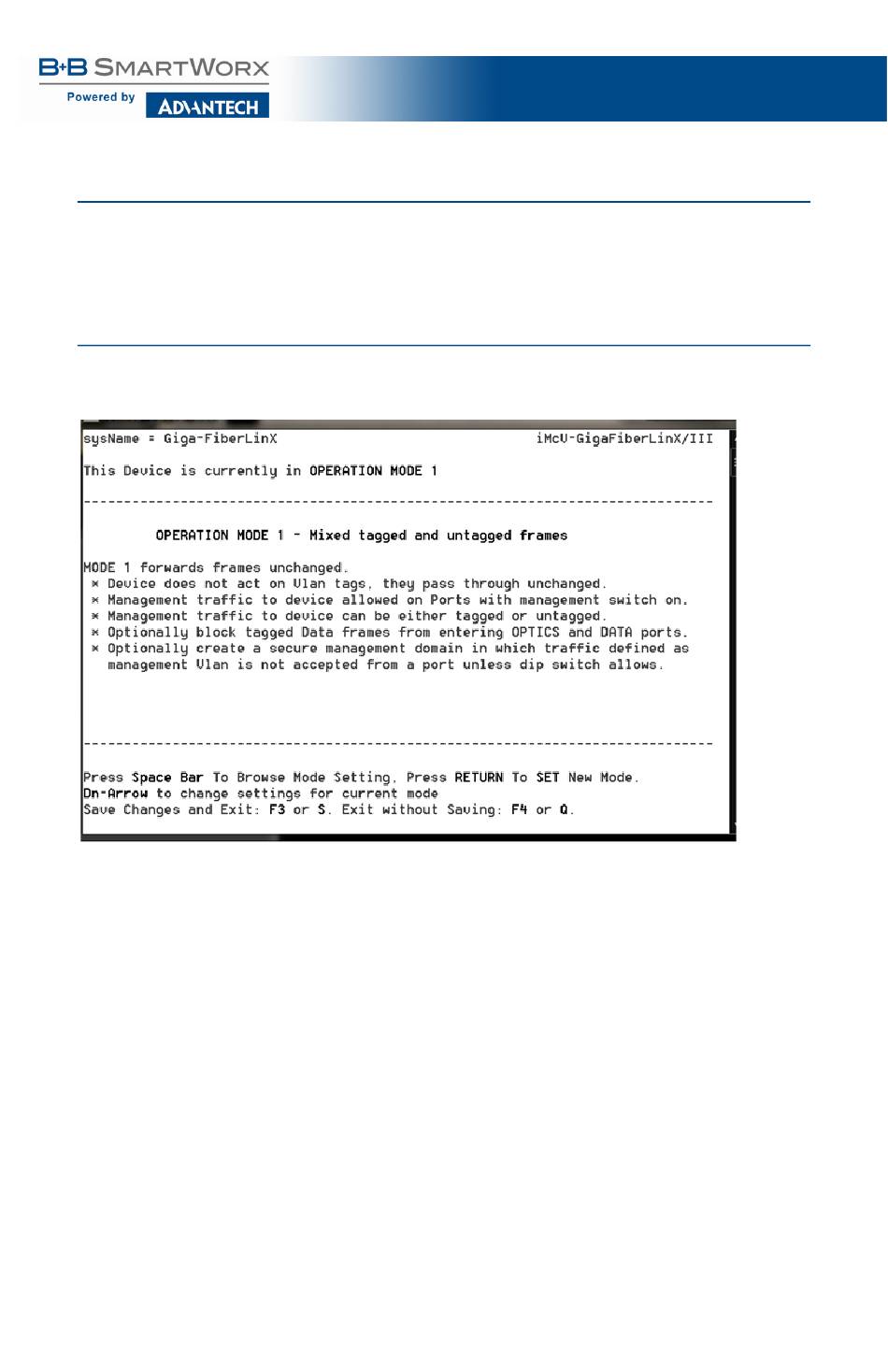

OPERATION MODE 1 – MIXED TAGGED & UNTAGGED FRAMES
In this mode, all tagged and untagged frames pass on any given port. Management to the
device can be tagged or untagged.
Press the down arrow on the computer keyboard to access additional configuration
selections.
21
