Summary of Contents for Advantech B+B SmartWorx IE-ModeConverter

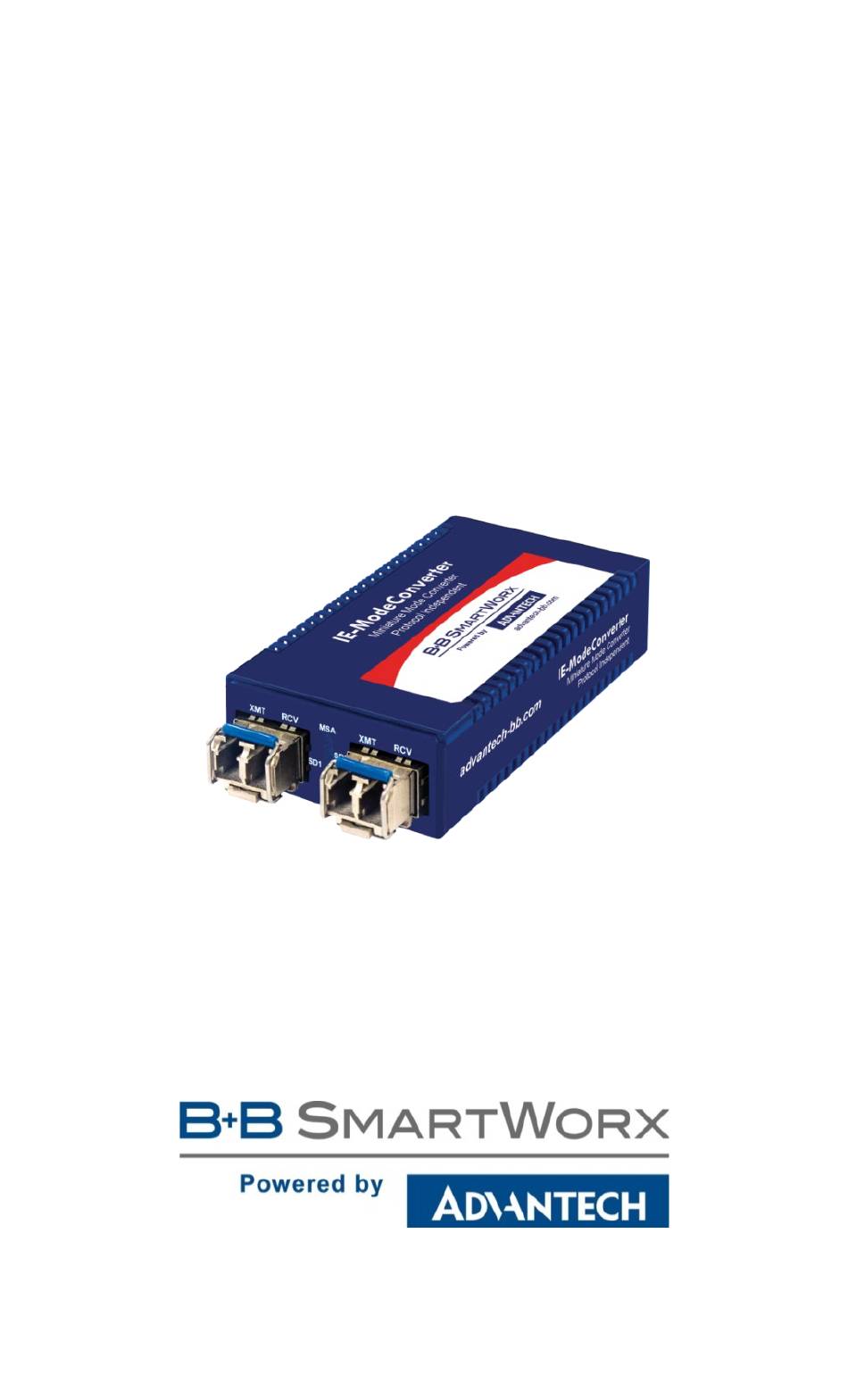

- Page 1 IE-ModeConverter Fiber Mode Conversion - SFP Module/s USER MANUAL...
- Page 2 IE-ModeConverter - SFP Advantech B+B SmartWorx - Americas 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 (815) 433-5105 Advantech B+B SmartWorx - Europe Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Fax +353 91-792445 www.advantech-bb.com support@advantech-bb.com...
-
Page 3: Table Of Contents
IE-ModeConverter - SFP CONTENTS About T h e IE-iMcV-MediaLinX & -iMcV-MediaLinX........4 Overview ........................4 Features ........................4 Applications ......................... 5 Installing the IE-ModeConverter ..............5 SFP Port Requirements ....................5 DIN Rail Mounting ....................... 5 DIN Rail - Cascading DC Power .................. 6 Powering the IE-ModeConverter .............. -
Page 4: About T H E Ie-Imcv-Medialinx & -Imcv-Medialinx

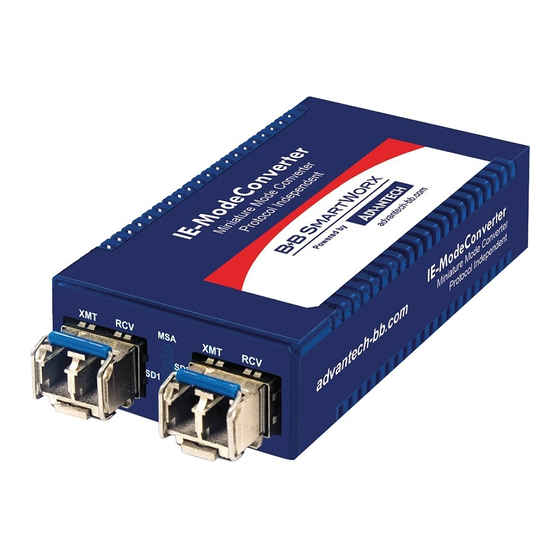

IE-ModeConverter - SFP ABOUT T H E IE-IMCV-M EDIALINX & -IMCV-MEDIALINX OVERVIEW The IE-ModeConverter is a pure mode converter that converts any fiber optics type to any other fiber optics type. This product is a protocol independent converter and is not intended for applications that require retiming or any Layer 2 functions. -
Page 5: Applications
IE-ModeConverter - SFP APPLICATIONS The standard application is the conversion of a short-range, multi-mode fiber interface to a long-range, single-mode fiber line. In addition, CWDM, DWDM or single-strand fiber can be supported with the appropriate SFP. This allows you to purchase low-cost, multi-mode fiber blade cards for your network equipment and support long-distance, single-mode fiber links. -
Page 6: Din Rail - Cascading Dc Power
IE-ModeConverter - SFP DIN RAIL - CASCADING DC POW ER If installing multiple IE-ModeConverters on DIN rail, you can use one DC input source and then cascade from one DC terminal block to the next, until reaching the maximum electrical current available. POWERING THE IE-M ODECONVERTER The IE-ModeConverter requires an external DC power source and has three powering options:... -
Page 7: Dc Terminal Block Option
IE-ModeConverter - SFP DC TERMINAL BLOCK OPTION The IE-ModeConverter DC power option includes a 7 to 50 VDC terminal block and a standard +5 VDC mini-jack. The DC terminal block has multiple DC inputs intended for cascading DC power to an adjacent unit. Connect the power source to any one positive and one negative terminal on the IE- ModeConverter. -
Page 8: Led Operation
IE-ModeConverter - SFP LED OPERATION The IE-ModeConverter has four status LED indicators. Each LED is dual color and has three states: Off, red, or green. A loss of signal on one SFP causes the TX of the other SFP to turn Off. -
Page 9: Specifications
IE-ModeConverter - SFP SPECIFICATIONS Operating Temperature: -25 to +85 °C (-13 to +185 °F) - DC configuration -20 to +70 °C (-4 to +158 °F) - DIN rail mount power supply -10 to +50 °C (+14 to +122 °F) - with AC wall adapter Storage Temperature: -45 to +85 °C (-49 to +185 °F) Shipping Weight:... -
Page 10: B+B Smartworx Technical Support
USA/Canada: 1 (800) 346-3119 (Ottawa IL USA) Europe: +353 91 792444 (Ireland / Europe) Email: support@advantech-bb.com Web: www.advantech-bb.com STATEMENTS, GUIDELINES, PRECAUTIONS, REGULATORY FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. -
Page 11: Fiber Optic Cleaning Guidelines
IE-ModeConverter - SFP FIBER OPTIC CLEANING GUIDELINES Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;... -
Page 12: Electrostatic Discharge Precautions
IE-ModeConverter - SFP ELECTROSTATIC DISCHARGE PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or standalone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products: Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 13: Regulatory, Standards, Compliances
© 2018 B+B SmartWorx – powered by Advantech. All rights reserved. The information in this document is subject to change without notice. B+B SmartWorx assumes no responsibility for any errors that may appear in this document.
