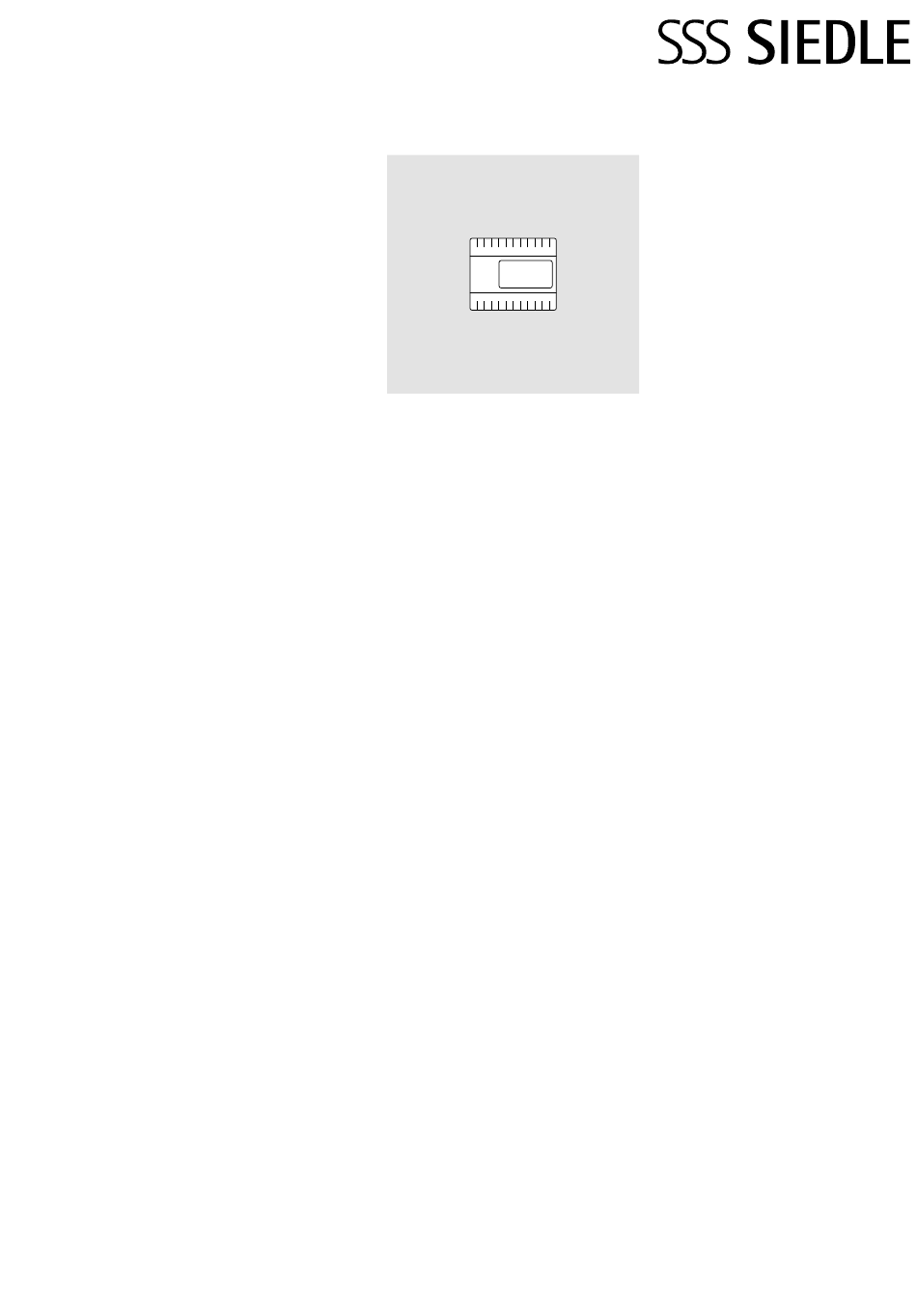

- Page 1 Programming Instructions DoorCom Analog DCA 650-02...
-
Page 2: Table Of Contents
Contents Brief instructions General information Changing the system configuration Manual initial configuration Application Changing PIN settings Changing the user configuration Intended application Changing the concierge Important remarks prior function for user 1 to programming Changing the door parameters Accessories Changing the public Servicing network parameters Performance features... -
Page 3: Manual Initial Configuration
Brief instructions Manual initial configuration To operate the DCA…, at least If only one user is required in the The call buttons can be assigned/ one DCA user must be configured DCA… then user 1 prepared in the changed for existing users via the according to the following process: DCA…... - Page 4 Brief instructions Manual initial configuration Procedure Function button(s) Display indicator Press the programming button on Door loudspeaker the BNG/BVNG 650-… The “Door enable loudspeaker enable” display flashes. On the door station, press and hold Door loudspeaker the light/programming button for activated 4 seconds until a sustained tone can be heard from the door loud- speaker:...
- Page 5 Procedure Function button(s) Display indicator • Basic device series: Hold the speech button for 4 sec- onds. A sustained signal tone sounds and the muting button flashes. There is a speech connec- tion to the door station. The indoor station is now in programming mode.
- Page 6 Brief instructions Manual initial configuration Procedure Function button(s) Display indicator Enter the call number on the Direct call no. DCA… press OK to confirm *0123456 <ok> (e.g. *0123456). Max. 22-digits, any number 0…9, *, # and F (flash function only in the first position Door loudspeaker before the call number).
-
Page 7: Changing The User Configuration
Changing the user configuration Procedure Function button(s) Display indicator Changing the user configuration DCA 650-02 V 2.x Start screen S. SIEDLE & SÖHNE Press the OK button. Sprache/Language ändern/change <ok> Press the down-arrow User config. key three times. change with <ok> Press the OK button. Config. - Page 8 Brief instructions Changing the user configuration Procedure Function button(s) Display indicator Press the OK button. Chain call fct. <ok> If the chain call function is to be Chain call fct. enabled: Press the down-arrow key. <ok> Press the OK button. Chain call fct.
-
Page 9: Manual Initial Configuration 3 Application
General information Application Important remarks prior to pro- Accessories gramming DoorCom Analog, in switch panel DoorCom switching/remote control housing as an interface for the • The DCA 650-…can be configured interface DCSF 600-…: Siedle In-Home bus, connects the manually or by using the BPS 650-… The DCSF 600-0 is an accessory for door intercom system to telephone bus programming software. -
Page 10: Performance Features
General information Performance features DoorCom Analog Interface between the In-Home bus and telephony Interface with analogue tele- phone connection for connec- tion to a telephone system Siedle In-Home bus • Max. 1 telephone connec- • Up to 31 bus addresses (with a bus line rectifier (1 bus tion to the telephone system line) and a door station, max. -
Page 11: Operation Operating Elements
Operation Operating elements The display and the buttons are located under the housing cover. The housing cover can be opened by pulling the upper edge. Ready for operation The DCA 650-… is ready for operation when the start screen is displayed (approx. 10 seconds after switching the power supply on): DCA 650-02 V2.[xx]... -
Page 12: Menu Structure
Operation Menu structure Display behaviour The menu and submenu level is end- less and repeats if the up or down arrow key is pressed repeatedly. DCA 650-02 V2.[xx] S.SIEDLE & SÖHNE Sprache/Language Language Select language: ändern/change ok Deutsch <ok> Deutsch Dansk Nederlands Italiano... - Page 13 Menu level 1 Menu level 2 Configuration option Page System config. PIN setting Protection against unauthorised access/unauthorised execution: change with change with • Config. PIN: Configuration protection • Selection PIN: Switching function protection • Extended PIN fct.: Extended function protection Door parameter •...
-
Page 14: Dtmf Function Table
Operation DTMF function table The DCA… must always be dialled Alternatively, functions can be car- The functions are configured based to carry out control functions. ried out during or after an active call on the DTMF coding (e.g. #61 for connection with existing connection activate door release) of dual-tone to the DCA…... -
Page 15: Audible Tones
Audible tones Tones and sequences of tones that can be heard on the telephone receiver when operating the DCA…: ID tone 1 ID tone 2 ID tone 1 or ID tone 2 can be configured for each door station as the ID tone for a pending door call. If a connection to the DCA has been established via the telephone, ID tone 1 is always output. -
Page 16: Display Screens
Operation Display screens Display indicator Status Description Ready for service DCA… ready status DCA 650-02 V 2.[xx] S. SIEDLE & SÖHNE Outgoing connection is being Outgoing call from the DCA… via DCA 650-02 V 2.[xx] established the telephony connection. Making connection Active telephony connection Active connection between the DCA 650-02 V 2.[xx]... -
Page 17: Configuration
Configuration Preparation DCA… as-delivered status • The door call can be configured • With manual programming: The • Menu language: English with or without acoustic call signal In-Home bus and all call destinations • Configuration PIN: 0000 output for the doormatic function in the TC system are configured and •... -
Page 18: Changing The System Configuration
Configuration Changing the system configuration Changing PIN settings Changing the door parameters Changing the public network parameters Procedure Procedure 1 Call up the “System config.” 1 Call up the “System config.” Procedure menu. menu. 1 Call up the “System config.” 2 Call up the “PIN setting”... -
Page 19: Changing The In-Home Bus Configuration
Changing the In-Home bus configuration Changing the call button assign- Changing direct door dialling Changing the BSx actuation ment Procedure Procedure Procedure 1 Call up the “In-home function” 1 Call up the “In-home function” 1 Call up the “In-home function” menu. -
Page 20: Changing Service Functions
Configuration Changing service functions Restoring the as-delivered status Changing the door call Changing the service receiver acceptance Procedure Procedure 1 Call up the “Service function” Procedure 1 Call up the “Service function” menu. 1 Call up the “Service function” menu. 2 Press OK to open the “Default menu. -
Page 21: Checking The Call Button Assignment
System initialisation Checking the call button Changing the localisation System initialisation assignment Depending on the system configu- Procedure ration in the In-Home bus, system Procedure 1 Call up the “Service function” initialisation may be requested by 1 Call up the “Service function” menu. - Page 24 S. Siedle & Söhne © 2001/06.19 Telefon- und Telegrafenwerke OHG Printed in Germany Best. Nr. 210009290-00 EN Postfach 1155 78113 Furtwangen Bregstraße 1 78120 Furtwangen Telefon +49 7723 63-0 Telefax +49 7723 63-300 www.siedle.de info@siedle.de...
