Chapter 3 Setting

3.4.8 Reception system switching

Select Reception system of TC-net 100(Normally receive automatically).
When [Reception switching (X)] in the LAN management information
screen is clicked, the configuration dialog is displayed.

3.4.9 Viewing the in-ring map

The in-ring map displays the nodes that currently belong to the TC-net
100.
To display the in-ring map, click ［In-ring Map （I）］ in the LAN
management information screen.
The map is updated to the latest information when [Update (R)] is clicked.
44
6F8C1360

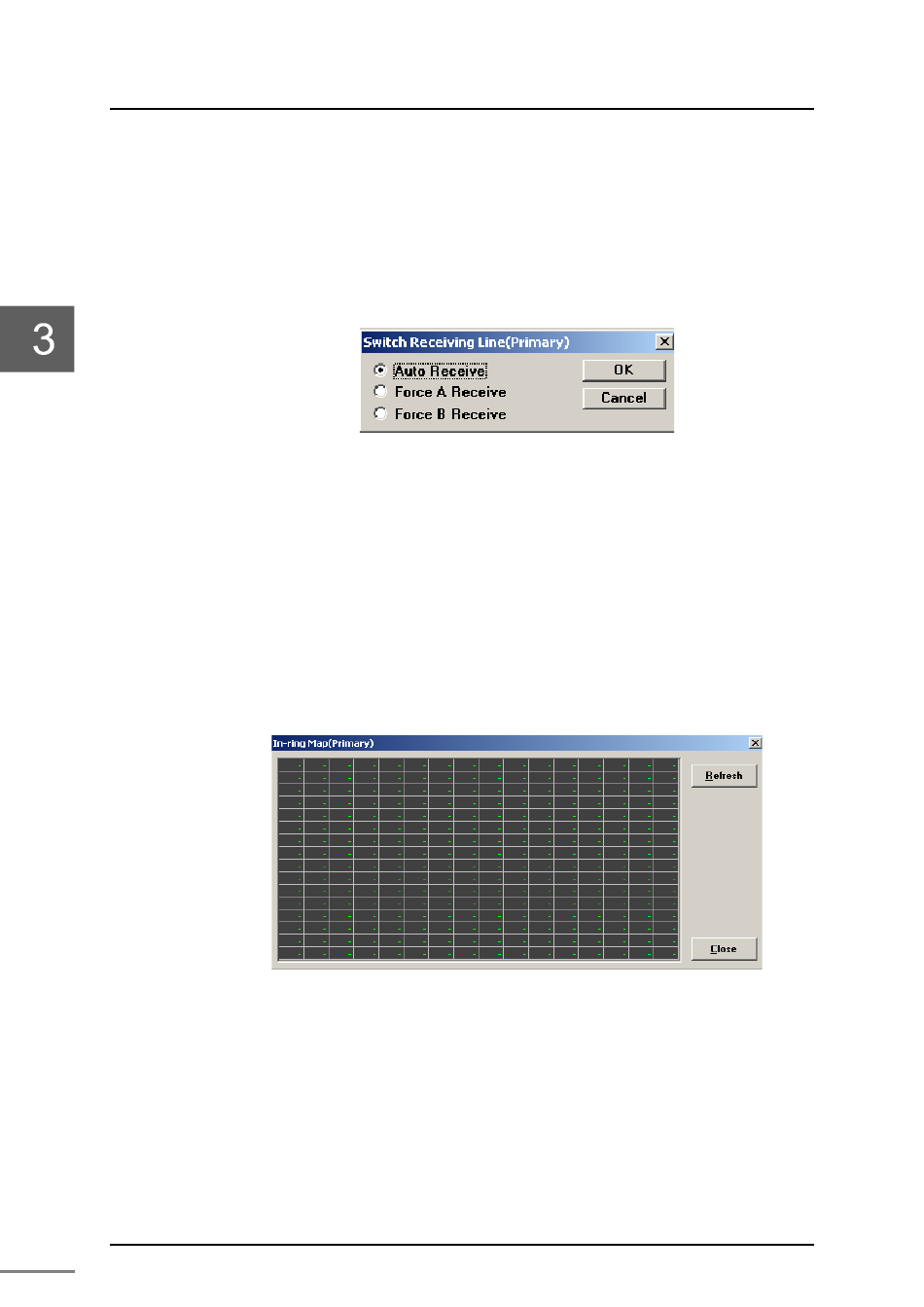

Figure 3-31 TC-net 100 reception switching screen
Figure3-32 Display screen of In-ring map
