Setting the state change notification

Set the parameters of state change notification.

Open the parameter screen of the TN8 module, and select the [State

Change Notification] tab.

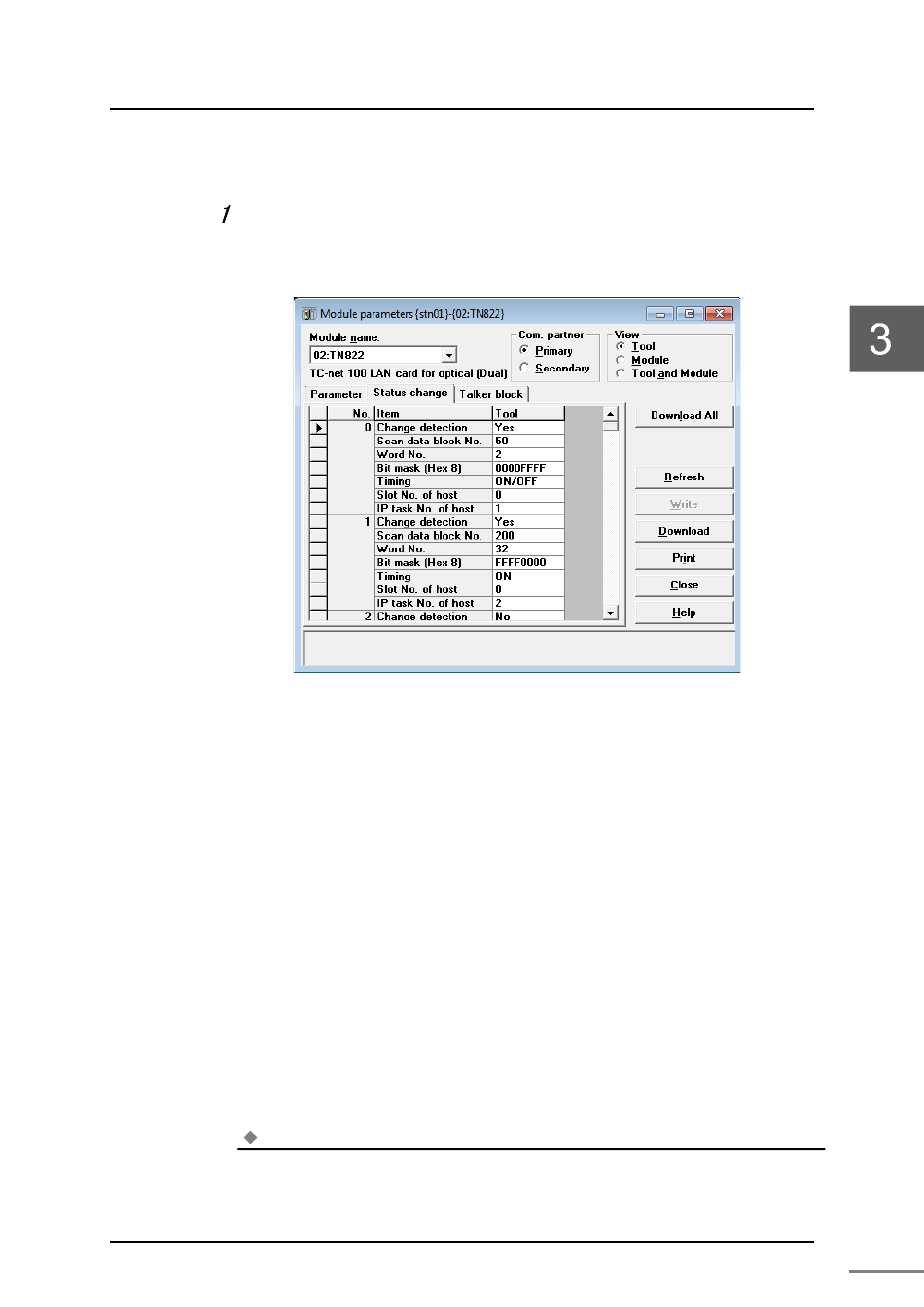

Figure 3-22 Parameter screen of state change notification

Up to 128 points can be set.

covered.

In Scan Data Block No., 0 to 2047 blocks are covered.

In Scan Data Word No., 0 to 63 words if the block are covered. The words

are registered in units of 2 words (16 bits x 2), such as 0, 2, 4, ..., 58, 60, and

62.

In Scan Data Bit Mask (8 digits in hexadecimal), register which bit in the

word is covered in hexadecimal. Set 0 to the bit to detect it, or 1 not to

detect it.

In Detection Timing, register how the bit changes in order to be detected.

In Notified Controller Slot No., register the slot number (0 to 7) of the

controller that makes a notification when a change occurs in the point.

Note

・Setting register "Yes" for status change detection, "Point No." is downloaded to TN8 module

in the carry. "Point No." outputted by GET_IFP_INF command becomes "Point No." from TN8

module.

Unified Controller nv series TC-net 100 (TN8) Module Operation Manual
