Chapter 3 Setting

3.3.2 Setting the scan sending blocks

32
6F8C1360
Set the scan sending blocks from the product tree.
Select the scan memory of the TC-net 100LAN, and then select [Sending
Block].

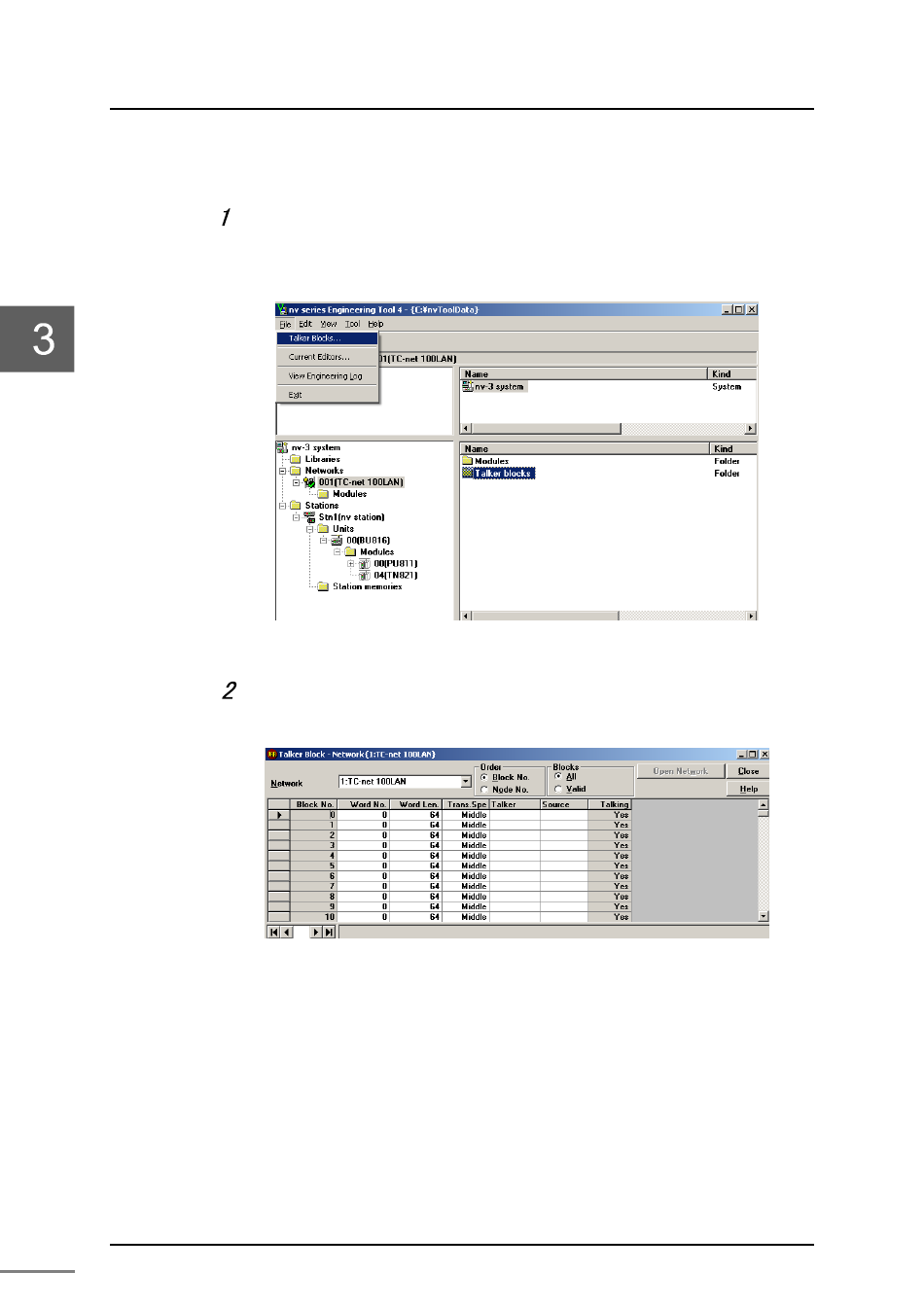

Figure 3-17 Scan sending blocks reading screen
Register each of the blocks.
Register each of the blocks.
Figure 3-18 scan sending blocks setting screen
Block No.: Indicates the scan sending block number.
Word No.: Specify the starting word number used in the block.
Word length: Specify the number of words used in the block.
Transmission speed: Specify the transmission speed of the block in High,
Medium, or Low. The maximum number of items with
each of the transmission speeds are High: 64,
Medium: 128, and Low: 384.
