Chapter 1 Introducing the TN8 Module
1.2

Names and Functions of the Parts

1.2.1 Names of the parts

Figure 1-2
(Note) F
4
6F8C1360
TN821/TN821A
Optical fiber cable
For single bus
State display LED
・RUN
・ERR
・L-A
TN821
・SCAN
SCAN
RUN
ERR
Station address setting switch
L-A
・STN H
・STN L
STN
H
L
Operation mode setting switch
・MODE
MODE
UN
Serial communication port
TOOL
・TOOL
State display LED(A system)
・LNK-A
・ACT-A
LNK-A ACT-A
TC-net 100 modular connector for A system
TN-A

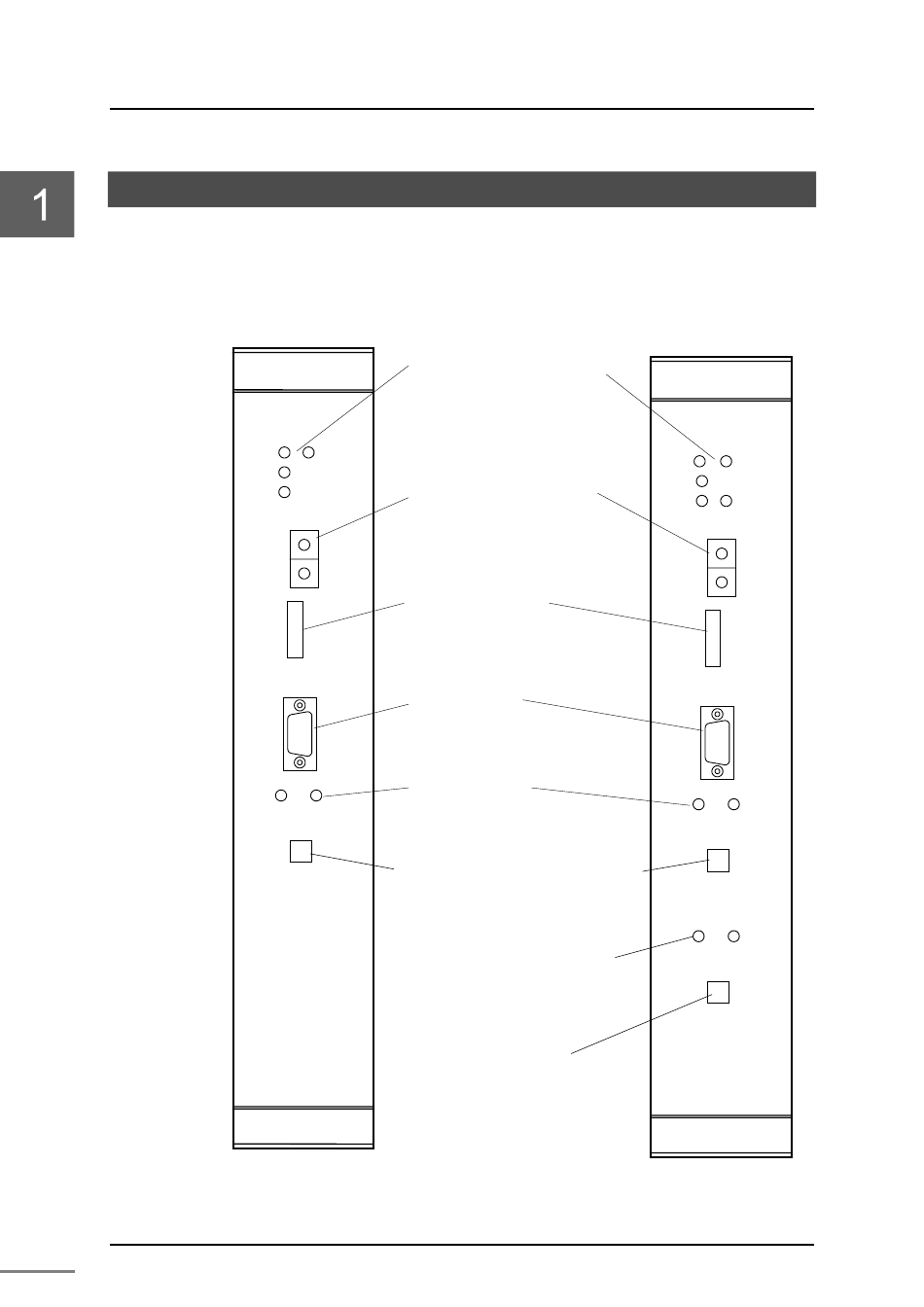

Names of the parts of the TN8 module (TN821/TN821A, TN822/TN822A)
ront panel name is difference between TN821A/TN822A and TN821/TN822
State display LED
・RUN
・ERR
・L-A
・L-B
・SCAN
State display LED(B system)
・LNK-A
・ACT-A
TC-net 100 modular connector
for B System
TN822/TN822A
Optical fiber cable
For dual-redundant bus
TN822
SCAN
RUN
ERR
L-A
L-B
STN
H
L
MODE
UN
TOOL
LNK-A ACT-A
TN-A
LNK-B ACT-B
TN-B
.
