Summary of Contents for Toshiba BMS-SM1281ETLE

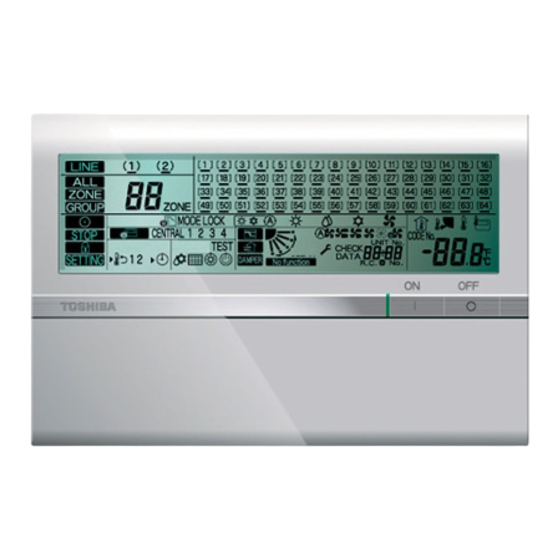

- Page 1 Smart BMS Manager with data analyzer Owner’s Manual Model name: BMS-SM1281ETLE • Save These Instructions! ENGLISH...
- Page 2 Owner’s Manual Smart BMS Manager Thank you very much for purchasing TOSHIBA Smart BMS Manager. This manual explains how to use the main unit of the Smart BMS Manager. For the usage of the WEB TYPE Smart BMS Manager, refer to its specific Owner's Manual.
- Page 3 Owner’s Manual Smart BMS Manager Precautions for Safety • Important information is described in the product itself and the manuals to prevent injury to the user and other persons, and damage to property, and for safe and correct use. Make sure to thoroughly understand the following details (descriptions and graphic symbols) before reading the text, and make sure to observe the precautions.
- Page 4 (zone 1 - zone 64). The Smart BMS Manager can manage all air conditioners in a zone at once. (For setting zones, refer to the Installation Manual.) Part name Central Controller Power Unit Model name BMS-SM1281ETLE Power supply 220 - 240 VAC, 50/60 Hz Use bundled power unit. Power consumption Up to 128 units Indoor unit —...
- Page 5 Owner’s Manual Smart BMS Manager System Configuration LINE 1 ZONE 1 ZONE 2 ZONE 3 ZONE 9 ZONE 13 Gr10 Gr16 ZONE 17 Gr17 Gr19 Gr23 Gr28 Gr30 Gr32 ZONE 32 ZONE 42 ZONE 33 Gr33 Gr35 Gr39 Gr42 Gr43 Gr48 Gr49 Gr50...
- Page 6 Owner’s Manual Smart BMS Manager Operating Instructions Button operation LINE Switches line 1 (display 1), line 2 (display 2) button ZONE GROUP Switches , and ZONE GROUP : Selects all groups on the selected line simultaneously. button : Selects all groups in the specified zone. : Selects a group.
- Page 7 Owner’s Manual Smart BMS Manager G: Run lamp Indicates the operating status of the selected group. : The selected group is not operating. : The selected group is operating. Flashing: When an error occurs or the protective device is activated button Starts operation.
- Page 8 Owner’s Manual Smart BMS Manager Indications on the LCD panel ZONE GROUP , or is displayed. B: Line number When a line is selected, the ( ) mark of the selected line number flashes. The number lights up when any controllable unit is detected on the line.
- Page 9 Owner’s Manual Smart BMS Manager H: Check code When the selected air conditioner is abnormal, its unit number and the check code are displayed. I: Louver position/swing Louver position or louver swinging is displayed. (When no remote controller is used.) J: Functions (1) : Lights when the power saving mode is activated.
- Page 10 Owner’s Manual Smart BMS Manager Group Operation STOP (Example) Operating LINE 1, GROUP 4 (Cooling at 24°C, air volume: AUTO) Power on Turn on the power of the remote controller. (Buttons on the remote controller are disabled while is displayed, but this is not a fault.) 1 Line switching Select line 1 with the...
- Page 11 Owner’s Manual Smart BMS Manager Zone Operation and Simultaneous Operation STOP (Example) Performing zone operation (LINE 1, ZONE 8, GROUP 34~42 cooling at 24°C, air volume: AUTO) and simultaneous operation (LINE 1, cooling at 24°C, air volume: AUTO) LINE ZONE LINE Zone operation ( 8, cooling at...
- Page 12 DE93959001...
